36KW - 72KW Small Electric Steam Generator Space Saving For Sterilization
36KW - 72KW Small Electric Steam Generator Space Saving For Sterilization
36KW - 72KW Small Electric Steam Generator Space Saving For Sterilization
36KW - 72KW Small Electric Steam Generator Space Saving For Sterilization
Specifications
Brand Name :
WILFORD
Model Number :
LDR
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
25 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Packing in wooden box
Rated evaporation :
50-100kg/h
Input power :
36-72KW
Input current :
54-108A
Working Pressure :
Low Pressure
Usage :
Sterilization
Weight :
130-180kg
Description

36 - 72 KW Small Industrial Electric Steam Generator For Sterilization

Product introduction

  • The whole equipment belongs to a small electric heating steam generator. The boiler water volume is less than 30L and is exempt from inspection.

  • The material of the heating tube is divided into 316L stainless steel seamless tube and nickel-based alloy steel, which has strong corrosion resistance.

  • The quality of steam is good, using multiple steam-water separation technology.

  • In order to achieve a constant output of pressure, it can be upgraded to a PID pressure regulation controller.

  • The safety device is complete and the safety is high.

  • Available in an integrated armor design.


Parameter

Model LDR0.05-0.7 LDR0.06-0.7 LDR0.08-0.7 LDR0.1-0.7
Project UNIT
Rated evaporation Kg/h 50 60 80 100
Rated working pressure MPa 0.7 0.7 0.7 0.7
Saturated steam temperature ℃ 170 170 170 170
Input power KW 36 40 54 72
Input current A 54 60 81 108
Rated voltage V 3N AC 50Hz 380V
a Main steam valve diameter DN 15 15 15 25
b Safety valve diameter DN 15 15 15 25
c Inlet diamater DN 15 15 15 15
d Blowoff valve diameter DN 15 15 15 20

Overall size		 L mm 750 750 750 750
W mm 600 680 680 660
H mm 1200 1200 1200 1450
Weight kg 130 150 160 180

Feature

1 . Can be exempted from local supervision and inspection


2 . Compact structure and small size


3 . 316L stainless steel seamless tube


4 . Flexible and space saving


5 . Built-in multiple operation protection

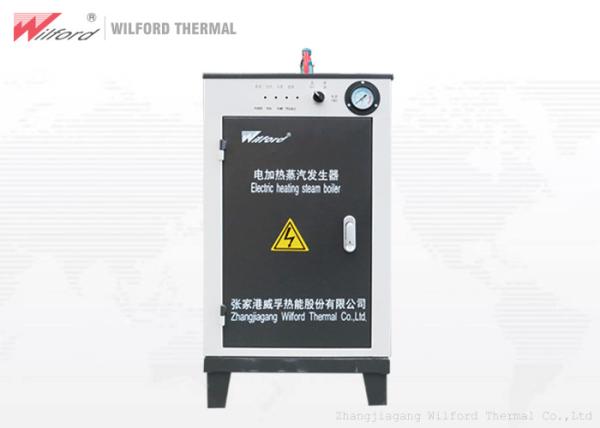

Product picture

36KW - 72KW Small Electric Steam Generator Space Saving For Sterilization

Project case diagram

36KW - 72KW Small Electric Steam Generator Space Saving For Sterilization
