100KG Capacity Industrial Electric Steam Generator Built In Automatic Water Pump
100KG Capacity Industrial Electric Steam Generator Built In Automatic Water Pump
100KG Capacity Industrial Electric Steam Generator Built In Automatic Water Pump
100KG Capacity Industrial Electric Steam Generator Built In Automatic Water Pump
100KG Capacity Industrial Electric Steam Generator Built In Automatic Water Pump
100KG Capacity Industrial Electric Steam Generator Built In Automatic Water Pump
Specifications
Brand Name :
WILFORD
Model Number :
LDR
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Packing in wooden box
Rated evaporation :
100kg/h
Rated working pressure :
0.7Mpa
Staturated steam temperature :
170℃
Input power :
72KW
Input current :
108A
Rated voltage :
3N AC 50HZ 380V
Description

With Capacity Of 100KG Industrial Electric Steam Generator For Food Sterilization

Product introduction

1 . Small electric steam generators with compact size, automatic water feeding pumps inside, fuly automatic water level and pressure control, could continuous work.


2 . Boiler water capacity less than 30 liters, avoid complicated approval procedures of annual evaluation.


3 . Steam output valves could connect both hard tubes and high temperature resistant steam hose , flexible ,make full usage of space.


4 . Smart size ,convenient to be moved ,installation and usage.


5 . According to customer order requirements, the company can provide customized products for specific power supply in the world.


Parameter

Model LDR0.012-0.7 LDR0.016-0.7 LDR0.025-0.7 LDR0.035-0.7 LDR0.05-0.7 LDR0.06-0.7 LDR0.08-0.7 LDR0.1-0.7 LDR0.125-0.7
Project UNIT
Rated evaporation Kg/h 12 16 25 35 50 60 80 100 125
Rated working pressure MPa 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7
Saturated steam temperature ℃ 170 170 170 170 170 170 170 170 170
Input power KW 9 12 18 27 36 40 54 72 90
Input current A 14 18 27 41 54 60 81 108 135
Rated voltage V 3N AC 50Hz 380V
a Main steam valve diameter DN 15 15 15 15 15 15 15 25 25
b Safety valve diameter DN 15 15 15 15 15 15 15 25 25
c Inlet diamater DN 15 15 15 15 15 15 15 15 15
d Blowoff valve diameter DN 150 15 15 15 15 15 15 20 20

Overall size		 L mm 600 600 680 680 750 750 750 750 750
W mm 540 540 600 600 600 680 680 660 660
H mm 800 800 950 950 1200 1200 1200 1450 1450
Weight kg 86 95 105 115 130 150 160 180 195

Feature

  • Using electricity as a heat source, no pollution

  • Built-in automatic water pump

  • High quality heating tube

  • Fully automatic control interface

  • The whole machine occupies small space and safe

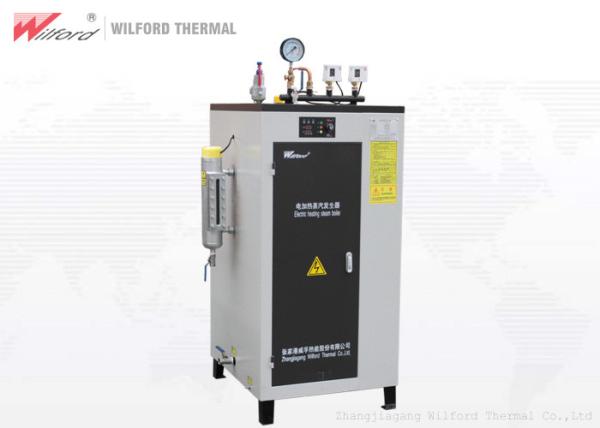

Product picture

100KG Capacity Industrial Electric Steam Generator Built In Automatic Water Pump

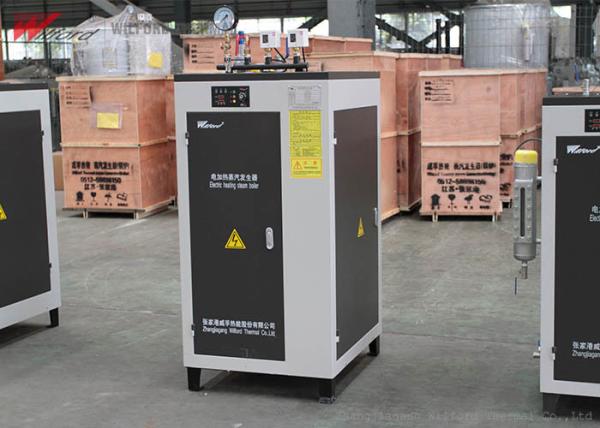

Project case diagram

100KG Capacity Industrial Electric Steam Generator Built In Automatic Water Pump
