Reliable Industrial Electric Steam Generator , Commercial Steam Generator
Reliable Industrial Electric Steam Generator , Commercial Steam Generator
Reliable Industrial Electric Steam Generator , Commercial Steam Generator
Reliable Industrial Electric Steam Generator , Commercial Steam Generator
Reliable Industrial Electric Steam Generator , Commercial Steam Generator
Reliable Industrial Electric Steam Generator , Commercial Steam Generator
Specifications
Brand Name :
WILFORD
Model Number :
LDR
Certification :
CE
Place of Origin :
China
MOQ :
1stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
25 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Export wooden Packing
Rated evaporation :
12-25kg/h
Input power :
9-18KW
Input current :
14-27A
Style :
Vertical
Usage :
Hotel / Restaurant
Dimension(L*W*H) :
Depends
Description

Small Type Electric Heating Steam Generator For Hotel / Restaurant

Product introduction

1 . It is a non-examination product and does not require filing and inspection.


2 . All components are internationally authentic, safe and reliable.


3 . Use high quality heating tubes and configure the contactors separately.


4 . The over-temperature protection high lift pump can be used for more than 10 years.


5 . Fully automatic control, design control lock to avoid misoperation.


6 . A variety of protection devices are complete, easy to operate, quick to install, and small footprint.


Parameter

Model LDR0.012-0.7 LDR0.016-0.7 LDR0.025-0.7 LDR0.035-0.7 LDR0.05-0.7 LDR0.06-0.7 LDR0.08-0.7 LDR0.1-0.7 LDR0.125-0.7
Project UNIT
Rated evaporation Kg/h 12 16 25 35 50 60 80 100 125
Rated working pressure MPa 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7
Saturated steam temperature ℃ 170 170 170 170 170 170 170 170 170
Input power KW 9 12 18 27 36 40 54 72 90
Input current A 14 18 27 41 54 60 81 108 135
Rated voltage V 3N AC 50Hz 380V
a Main steam valve diameter DN 15 15 15 15 15 15 15 25 25
b Safety valve diameter DN 15 15 15 15 15 15 15 25 25
c Inlet diamater DN 15 15 15 15 15 15 15 15 15
d Blowoff valve diameter DN 150 15 15 15 15 15 15 20 20

Overall size		 L mm 600 600 680 680 750 750 750 750 750
W mm 540 540 600 600 600 680 680 660 660
H mm 800 800 950 950 1200 1200 1200 1450 1450
Weight kg 86 95 105 115 130 150 160 180 195

Advantage

  • Electric heating

  • Environmental protection, cleaning

  • Nickel base alloy steel and 316L stainless steel seamless pipe

  • Pressure output is stable

  • Energy saving and high efficiency

  • Low pollution index

  • Simple operation

  • Small footprint

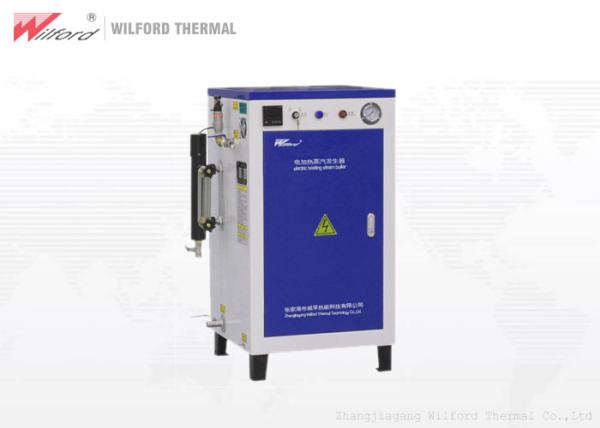

Product picture

Reliable Industrial Electric Steam Generator , Commercial Steam Generator

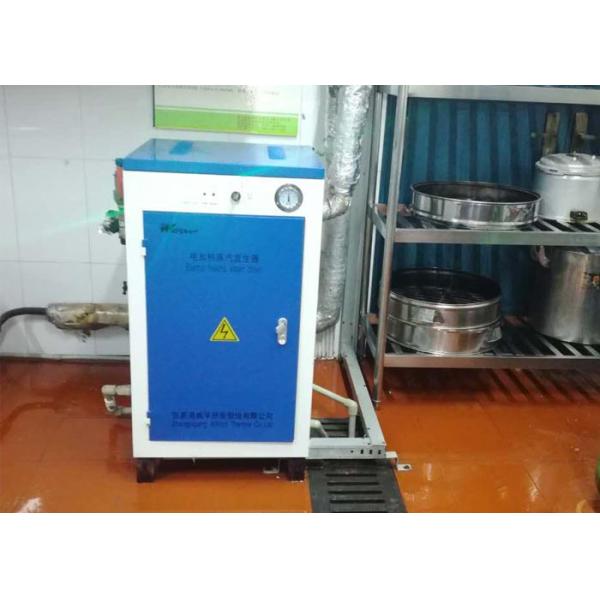

Project case diagram

Reliable Industrial Electric Steam Generator , Commercial Steam Generator
