High Performance Electric Fired Boiler Large Steam Space Microcomputer Control
High Performance Electric Fired Boiler Large Steam Space Microcomputer Control
High Performance Electric Fired Boiler Large Steam Space Microcomputer Control
High Performance Electric Fired Boiler Large Steam Space Microcomputer Control
Specifications
Brand Name :
WILFORD
Model Number :
WDR
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Packing in wooden box
Rated working pressure :
1.0MPa
Output :
Steam
Type :
Steam Boiler
Power*Group :
Different
Water inlet diamater :
25 DN
Safety valve diameter :
2*40 DN
Description

High Performance Low pressure Horizontal Industrial eletric Steam Boiler

Product introduction

  • The steam boiler works very efficiently. It not only has a large steam space, but also produces high quality steam.

  • In order to extend the service life of the boiler, we choose to separate the furnace body and the control cabinet.

  • Its electric heating tube can be used for about 20,000 hours, the quality is very good, it is not easy to damage, and the maintenance cost is reduced.

  • The electrical components used in it are certified to be very safe and reliable.

  • PLC control system, built-in PID design pressure control mode, to ensure efficient and safe operation of the boiler.

Parameter

Type WDR0.75 WDR1 WDR1.5 WDR2 WDR3 WDR4
Project Unit
Rated evaporation t/h 0.75 1 1.5 2 3 4
Rated working pressure MPa 1.0/1.25 1.0/1.25 1.0/1.25 1.0/1.25 1.0/1.25 1.0/1.25
Staturated steam temperature ℃ 184/193 184/193 184/193 184/193 184/193 184/193
Input Power KW 540 720 1080 1440 2160 2880
Input current A 810 1080 1620 2160 3240 4320
Rated pressure V 3N AC 50Hz 380V
Power×Group KW×P 36×15 36×20 36×30 36×40 36×60 36×80
Dimension
a Main steam valve diameter DN 40 40 65 65 80 100
b Safety valve diameter DN 2×40 2×40 2×40 2×40 2×40 2×50
c Inlet diamater DN 25 25 25 25 40 40
d Blowoff Valve diameter DN 40 40 40 40 40 40
Overall size L mm 2800 2950 3450 3500 3950 4100
L1 mm 2400 2500 3050 2880 3200 3550
W mm 1800 1900 2180 2000 2100 2300
W1 mm 1550 1600 1430 1880 1980 2120
H mm 1550 1600 2100 2500 2650 2980
H1 mm 1300 1350 1850 1900 2100 2200
Electrical control cabinet size ALength mm 1200 1200 1500 2200 2000(2) 2200(2)
BWidth mm 500 600 600 700 700 700
CHight mm 1800 1800 2000 2000 2200 2200
Weight T 1.6/2.0 1.8/2.2 2.2/2.7 2.8/3.3 3.5/4.1 4.5/5.2

Feature

1 . Split installation


2 . The electric control cabinet is separated from the furnace body


3 . Nearly 99% thermal efficiency


4 . Concentrated beam flange connection


5 . Large steam space


6 . The control function is very complete


7 . Microcomputer control, efficient

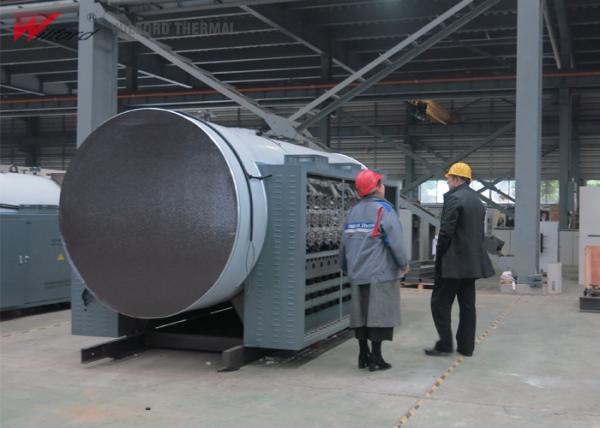

Product picture

High Performance Electric Fired Boiler Large Steam Space Microcomputer Control

Project case diagram

High Performance Electric Fired Boiler Large Steam Space Microcomputer Control
