High Security Industrial Electric Steam Boiler For Disinfection Cabinet
High Security Industrial Electric Steam Boiler For Disinfection Cabinet
High Security Industrial Electric Steam Boiler For Disinfection Cabinet
High Security Industrial Electric Steam Boiler For Disinfection Cabinet
High Security Industrial Electric Steam Boiler For Disinfection Cabinet
High Security Industrial Electric Steam Boiler For Disinfection Cabinet
Specifications
Brand Name :
WILFORD
Model Number :
WDR
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
25 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Packing in wooden box
Rated Evaporation :
0.75-1T/h
Rated voltage :
Orinary pressure
Weight :
1.6/2.0-1.8/2.2T
Over size :
2800*1800*1550/2950*1900*1600mm
Electrical control cabinet size :
Different models have different sizes
Staturated steam temp :
184-193dgr
Description

Electric Steam Boiler For Disinfection Cabinet

Product introduction

  • The product is a horizontal high-power steam boiler, which adopts the separation mode of the furnace electric control cabinet, which avoids the electrical aging of the electrical components and affects the service life.

  • The electric heating tube is made of high quality products at home and abroad. The normal service life is about 20,000 hours, the thermal efficiency is nearly 99%, the operation is quiet and clean, and it meets the requirements of environmental protection.

  • It does not emit NOx (nitrogen oxides) to the atmosphere.

  • The operation adopts PLC control system, free operation button, free indicator light, touch screen panel, Chinese and English display, man-machine dialogue, operation authorization, real-time information, automatic page turning.

Parameter

Type WDR0.75 WDR1 WDR1.5 WDR2 WDR3 WDR4
Project Unit
Rated evaporation t/h 0.75 1 1.5 2 3 4
Rated working pressure MPa 1.0/1.25 1.0/1.25 1.0/1.25 1.0/1.25 1.0/1.25 1.0/1.25
Staturated steam temperature ℃ 184/193 184/193 184/193 184/193 184/193 184/193
Input Power KW 540 720 1080 1440 2160 2880
Input current A 810 1080 1620 2160 3240 4320
Rated pressure V 3N AC 50Hz 380V
Power×Group KW×P 36×15 36×20 36×30 36×40 36×60 36×80
Dimension
a Main steam valve diameter DN 40 40 65 65 80 100
b Safety valve diameter DN 2×40 2×40 2×40 2×40 2×40 2×50
c Inlet diamater DN 25 25 25 25 40 40
d Blowoff Valve diameter DN 40 40 40 40 40 40
Overall size L mm 2800 2950 3450 3500 3950 4100
L1 mm 2400 2500 3050 2880 3200 3550
W mm 1800 1900 2180 2000 2100 2300
W1 mm 1550 1600 1430 1880 1980 2120
H mm 1550 1600 2100 2500 2650 2980
H1 mm 1300 1350 1850 1900 2100 2200
Electrical control cabinet size ALength mm 1200 1200 1500 2200 2000(2) 2200(2)
BWidth mm 500 600 600 700 700 700
CHight mm 1800 1800 2000 2000 2200 2200
Weight T 1.6/2.0 1.8/2.2 2.2/2.7 2.8/3.3 3.5/4.1 4.5/5.2

Feature

1 . High quality electric heating elements


2 . High-quality nickel-based alloy steel electric heating tube


3 . Electrical components are away from heat sources


4 . Thermal efficiency is close to 99%


5 . Free operation button


6 . Installation is independent design and easy to replace


7 . Multiple chain protection

Product picture

High Security Industrial Electric Steam Boiler For Disinfection Cabinet

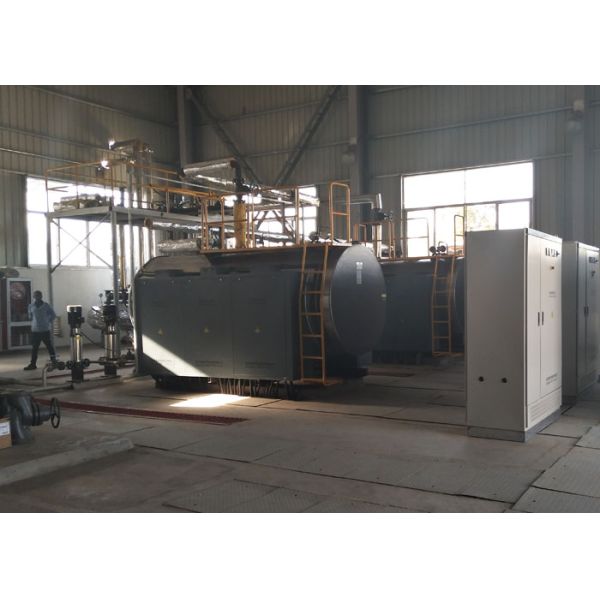

Project case diagram

High Security Industrial Electric Steam Boiler For Disinfection Cabinet
