AC 380V 50HZ Industrial Electric Steam Boiler , High Efficiency Steam Boiler
AC 380V 50HZ Industrial Electric Steam Boiler , High Efficiency Steam Boiler
AC 380V 50HZ Industrial Electric Steam Boiler , High Efficiency Steam Boiler
AC 380V 50HZ Industrial Electric Steam Boiler , High Efficiency Steam Boiler
Specifications
Brand Name :
WILFORD
Model Number :
LDR
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Packing in wooden box
Rated evaporation :
500kg/h
Rated working pressure :
0.7-1.0Mpa
Rated voltage :
3N AC 50HZ 380V
Operation :
Automatic
Warranty :
1 Year
Application :
food,chemical,medical,washing etc.
Description

New Condition High Effieicncy Electric Steam Boiler For Industry

Product introduction

1 . High efficiency: The precise design ensures that the boiler can reach the working pressure quickly and efficiently.


2 . Simple operation: the customer only needs to connect the power supply and water source to use the boiler normally.


3 . Fast speed: The boiler starts and stops at a fast speed and can be applied to various working conditions.


4 . High quality: low surface heat load heating element, not easy to melt, high mechanical strength.


5 . Automation: Fully automatic control mode, easy to operate, to ensure safe and efficient operation of the boiler.


4 . Environmental protection: The thermal efficiency is nearly 99%, clean and quiet.


Parameter

Type LDR0.15 LDR0.2 LDR0.3 LDR0.5
Project Unit
Rated evaporation t/h 0.15 0.2 0.3 0.5
Rated working pressure MPa 0.7/1.0 0.7/1.0 0.7/1.0 0.8/1.0
Staturated steam temperature ℃ 170/193 170/193 170/193 184/193
Input Power KW 108 144 216 360
Input current A 162 216 324 540
Rated pressure V 3N AC 50Hz 380V
Power×Group KW×P 18×6 18×8/24×6 27×8 36×10
a Main steam valve diameter DN 25 32 32 50
b Safety valve diameter DN 25 25 25 40
c Inlet diamater DN 20 20 20 25
d Blowoff Valve diameter DN 25 25 25 40
Overall size L mm 1100 1280/1150 1300 1580
W mm 950 1150/950 1200 1350
H mm 2050 2100/2050 2200 2600
A mm - - 1200 1200
B mm - - 500 500
C mm - - 1800 1800
Weight kg 330/400 450/530 680/740 980/1080

Advantage

  • One-piece design

  • Use high quality electrical components

  • Low radiation loss and high thermal efficiency

  • Electric heating element, independent design, easy to replace

  • Fully automatic operation, energy saving and high efficiency

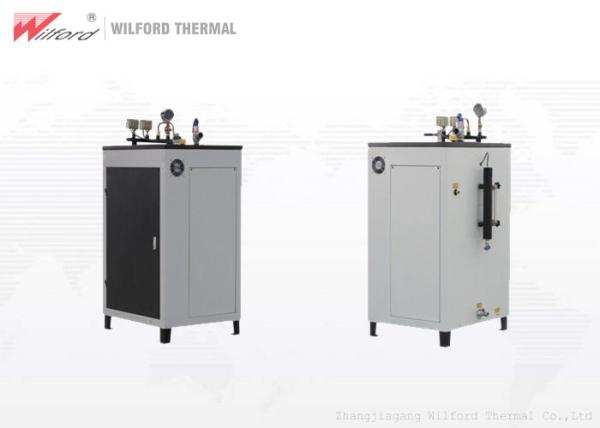

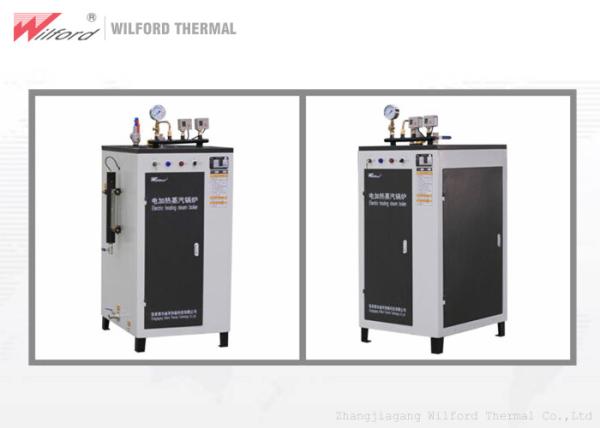

Product picture

AC 380V 50HZ Industrial Electric Steam Boiler , High Efficiency Steam Boiler

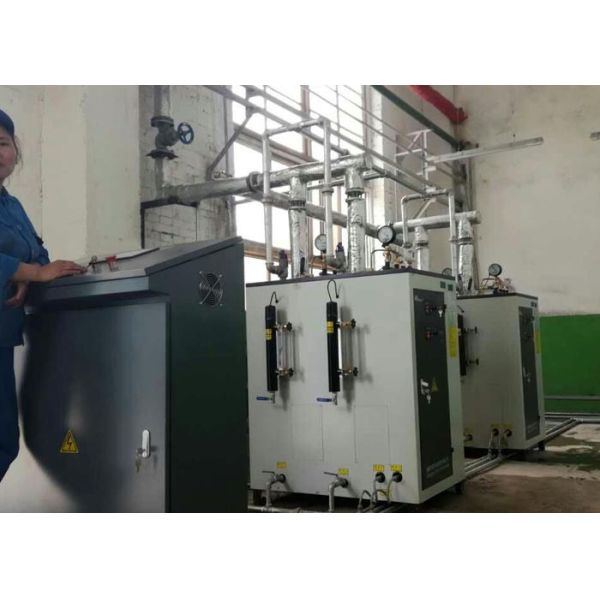

Project case diagram

AC 380V 50HZ Industrial Electric Steam Boiler , High Efficiency Steam Boiler
