Low Pressure Industrial Electric Steam Boiler For Dry Cleaning Machine
Low Pressure Industrial Electric Steam Boiler For Dry Cleaning Machine
Low Pressure Industrial Electric Steam Boiler For Dry Cleaning Machine
Low Pressure Industrial Electric Steam Boiler For Dry Cleaning Machine
Low Pressure Industrial Electric Steam Boiler For Dry Cleaning Machine
Low Pressure Industrial Electric Steam Boiler For Dry Cleaning Machine
Specifications
Brand Name :
WILFORD
Model Number :
LDR
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Packing in wooden box
Rated evaporation :
0.15-0.5T/h
Rated working pressure :
0.7/1.0/0.8Mpa
Input power :
108-360KW
Input current :
162-540A
Power *Group :
Different
Weight :
330/400-980/1080T
Description

Low Pressure Industrial Electric Steam Boiler For Dry Cleaning Machine

Product introduction

1 . Because the heating component is completely immersed in water and perfectly insulated, vertical design can bring about very high efficiency of electric boiler and reduce the radiation to minimum.

2 . The precise calculation can make the boiler quickly and efficiently reach working pressure.

3 . The use of low surface heat load heating components make it not easy to melt or soften.

4 . each component goes through hydraulic pressure and voltage resistance test; boiler can work after being connected to power and water.

5 . With nearly 100% thermal efficiency, it is quiet, clean and in line with environmental requirements.


Parameter

Type LDR0.15 LDR0.2 LDR0.3 LDR0.5
Project Unit
Rated evaporation t/h 0.15 0.2 0.3 0.5
Rated working pressure MPa 0.7/1.0 0.7/1.0 0.7/1.0 0.8/1.0
Staturated steam temperature ℃ 170/193 170/193 170/193 184/193
Input Power KW 108 144 216 360
Input current A 162 216 324 540
Rated pressure V 3N AC 50Hz 380V
Power×Group KW×P 18×6 18×8/24×6 27×8 36×10
a Main steam valve diameter DN 25 32 32 50
b Safety valve diameter DN 25 25 25 40
c Inlet diamater DN 20 20 20 25
d Blowoff Valve diameter DN 25 25 25 40
Overall size L mm 1100 1280/1150 1300 1580
W mm 950 1150/950 1200 1350
H mm 2050 2100/2050 2200 2600
A mm - - 1200 1200
B mm - - 500 500
C mm - - 1800 1800
Weight kg 330/400 450/530 680/740 980/1080
Feature
  • Electric heating steam boiler
  • Electrical components have CE and UL certification marks
  • Start and stop fast
  • Large operating load range
  • Simple structure and long service life
  • Easy to install

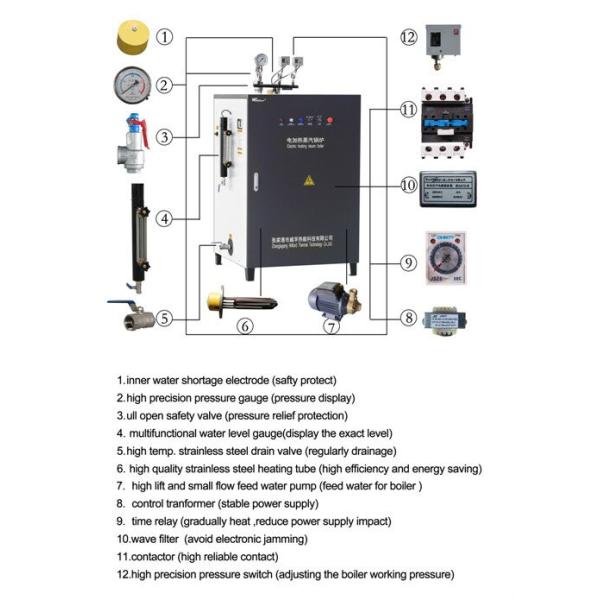

Product picture

Low Pressure Industrial Electric Steam Boiler For Dry Cleaning Machine

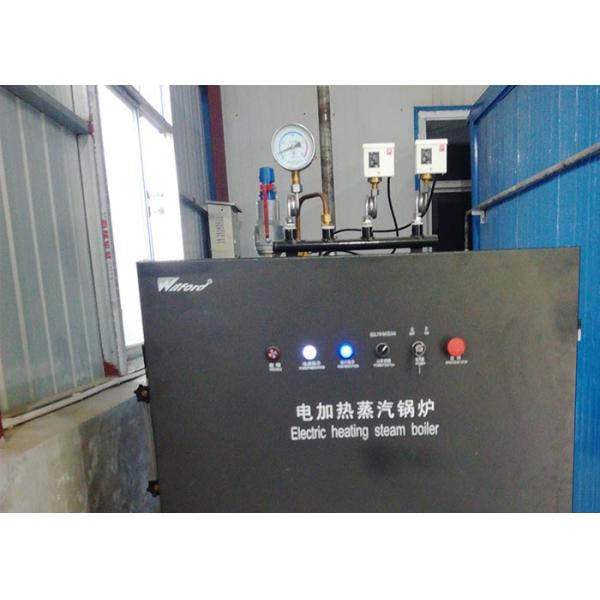

Project case diagram

Low Pressure Industrial Electric Steam Boiler For Dry Cleaning Machine
