LDR Split Industrial Small Electric Steam Boiler For Sterilization Equipment
LDR Split Industrial Small Electric Steam Boiler For Sterilization Equipment
LDR Split Industrial Small Electric Steam Boiler For Sterilization Equipment
LDR Split Industrial Small Electric Steam Boiler For Sterilization Equipment
Specifications
Brand Name :
WILFORD
Model Number :
LDR
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Export wooden Packing
Rated evaporation :
200-500kg/h
Rated working pressure :
7/10/8bar
Main steam valve diameter :
25-50DN
Safety valve diameter :
25-40DN
Water inlet diameter :
20-25DN
Blowoff valve diameter :
25-40DN
Description

LDR Split Industrial Mini Electric Steam Boiler For Sterilization Equipment

Product introduction

  • All electrical components with CE and UL marks --ensure safety and long life service.

  • Quickly start and stop, big operation load adjusting range,easily handling.

  • Each heating element use a concentrated beam flange connection, independently arrangement, simple structure, high mechanical strength, safe, reliable, convenient replacement, long service life.

  • Flexible working methods, could set either manual or automatic mode.

  • Unique power switching function,could be regulated based on actual demand of steam power, make same usage time/frequency ,improve equipment service life.

  • When electric boiler heating element in a group has problem, could immediate stop operation the destroyed heating group and cut off power supply.

  • Vertical structure, compact and beautiful, elegant style, classic color, save room space and easily installation.


Parameter

Type LDR0.15 LDR0.2 LDR0.3 LDR0.5
Project Unit
Rated evaporation t/h 0.15 0.2 0.3 0.5
Rated working pressure MPa 0.7/1.0 0.7/1.0 0.7/1.0 0.8/1.0
Staturated steam temperature ℃ 170/193 170/193 170/193 184/193
Input Power KW 108 144 216 360
Input current A 162 216 324 540
Rated pressure V 3N AC 50Hz 380V
Power×Group KW×P 18×6 18×8/24×6 27×8 36×10
a Main steam valve diameter DN 25 32 32 50
b Safety valve diameter DN 25 25 25 40
c Inlet diamater DN 20 20 20 25
d Blowoff Valve diameter DN 25 25 25 40
Overall size L mm 1100 1280/1 150 1300 1580
W mm 950 1150/950 1200 1350
H mm 2050 2100/2050 2200 2600
A mm - - 1200 1200
B mm - - 500 500
C mm - - 1800 1800
Weight kg 330/400 450/530 680/740 980/1080

Advantage

1 . LDR0.3 and above split structure


2 . Independent boiler control cabinet


3 . The heating element is connected by a concentrated beam type flange


4 . Thermal efficiency is nearly 99%


5 . Electrical components have long service life


6 . Easy to maintain and install

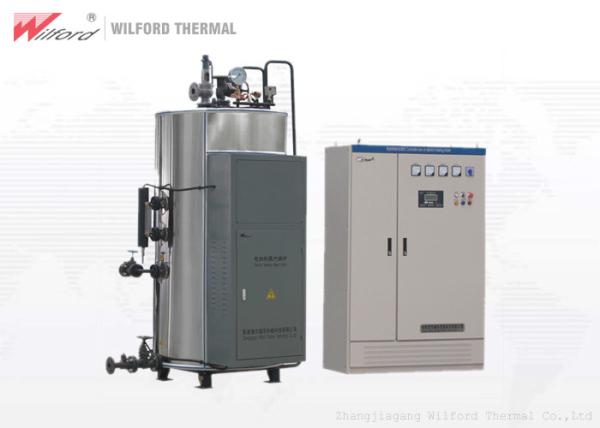

Product picture

LDR Split Industrial Small Electric Steam Boiler For Sterilization Equipment

Contact us

  • We are professional in exporting and importing oil gas electric steam boiler.

  • We provide good quality and competitive price.

  • Please contact me 24h freely ,I am delighted to serve you .

  • welcome to visit our website and our factory in china.

Project case diagram

LDR Split Industrial Small Electric Steam Boiler For Sterilization Equipment
