144KW - 360KW Industrial Electric Steam Boiler Fully Automatic Operation Mode
144KW - 360KW Industrial Electric Steam Boiler Fully Automatic Operation Mode
144KW - 360KW Industrial Electric Steam Boiler Fully Automatic Operation Mode
144KW - 360KW Industrial Electric Steam Boiler Fully Automatic Operation Mode
Specifications
Brand Name :
WILFORD
Model Number :
LDR
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Export wooden Packing
Rated evaporation :
0.2-0.5T/h
Rated working pressure :
0.7/1.0/0.8Mpa
Fuel :
Electric
Input power :
144-360KW
Input current :
216-540A
Weight :
450/530-980/1080T
Description

144KW - 360KW Industrial Electric Steam Boiler For Sale

Product introduction

1 . It belongs to electric heating steam boiler, vertical structure.


2 .The heating element used is very good in quality, simple in structure, and difficult to melt or soften.


3 . It is an environmentally friendly boiler with high thermal efficiency, low energy consumption and environmental protection requirements.


4 . All electrical components have passed strict quality certification, which is safe and reliable.


5 . It has the function of power switching, which can adjust the power according to the actual situation and prolong the life of the boiler.


6 . Fully automatic operation mode, easy to operate.


Parameter

Type LDR0.15 LDR0.2 LDR0.3 LDR0.5
Project Unit
Rated evaporation t/h 0.15 0.2 0.3 0.5
Rated working pressure MPa 0.7/1.0 0.7/1.0 0.7/1.0 0.8/1.0
Staturated steam temperature ℃ 170/193 170/193 170/193 184/193
Input Power KW 108 144 216 360
Input current A 162 216 324 540
Rated pressure V 3N AC 50Hz 380V
Power×Group KW×P 18×6 18×8/24×6 27×8 36×10
a Main steam valve diameter DN 25 32 32 50
b Safety valve diameter DN 25 25 25 40
c Inlet diamater DN 20 20 20 25
d Blowoff Valve diameter DN 25 25 25 40
Overall size L mm 1100 1280/1150 1300 1580
W mm 950 1150/950 1200 1350
H mm 2050 2100/2050 2200 2600
A mm - - 1200 1200
B mm - - 500 500
C mm - - 1800 1800
Weight kg 330/400 450/530 680/740 980/1080

Advantage

  • Thermal efficiency up to 99%

  • Concentrated beam flange connection

  • Precision computing design, efficient

  • Each component is tested for water pressure and withstand voltage

  • Clean and environmentally friendly requirements

  • Multiple protection functions, safe and reliable

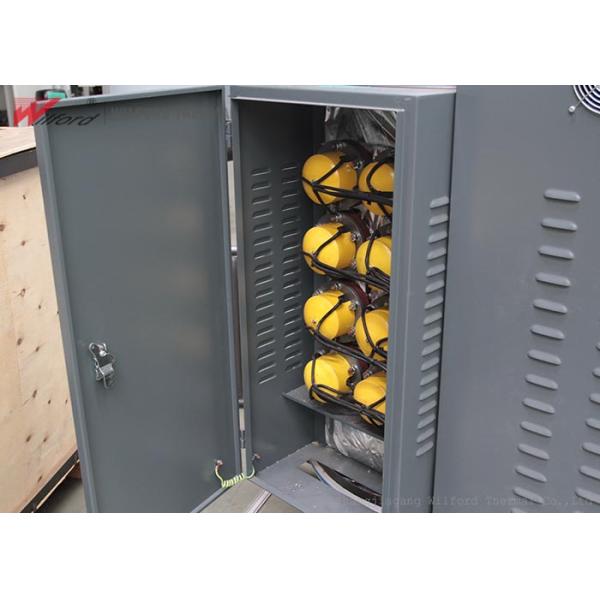

Product picture

144KW - 360KW Industrial Electric Steam Boiler Fully Automatic Operation Mode

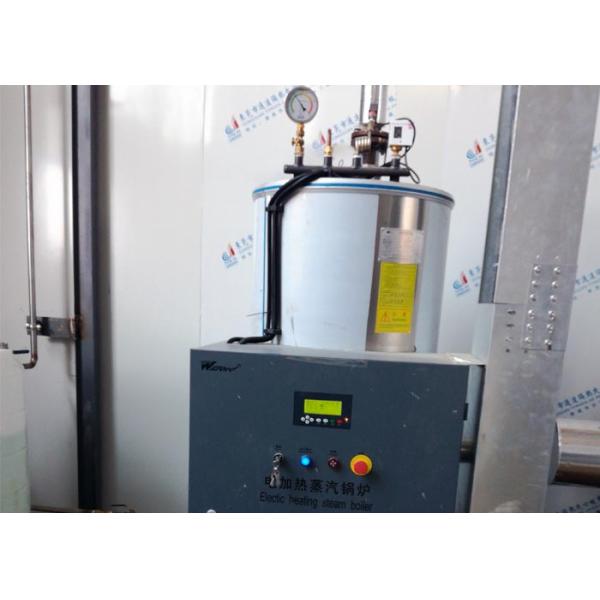

Project case diagram

144KW - 360KW Industrial Electric Steam Boiler Fully Automatic Operation Mode
