Electric Commercial Electric Boiler Compact Structure Easy Installation
Electric Commercial Electric Boiler Compact Structure Easy Installation
Electric Commercial Electric Boiler Compact Structure Easy Installation
Electric Commercial Electric Boiler Compact Structure Easy Installation
Electric Commercial Electric Boiler Compact Structure Easy Installation
Electric Commercial Electric Boiler Compact Structure Easy Installation
Specifications
Brand Name :
WILFORD
Model Number :
LDR
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Export wooden Packing
Rated evaporation :
150-500kg/h
Rated working pressure :
7-10bar
Staturated steam temperature :
170/184/193℃
Rated voltage :
3N AC 50HZ 380V
Power *Group :
18*6-36*10
Main steam valve diameter :
25-50DN
Description

Vertical & Automatic Industrial Electric Steam Boiler For Commercial Laundry

Product introduction

  • The boiler is very efficient, the heating element used is completely insulated and the quality is very good.

  • It has two working modes: manual or automatic. According to your actual needs, choose the appropriate working mode, which is flexible and simple.

  • Using high-quality electric heating elements, independent design, high mechanization strength and long life.

  • Each component is subjected to strict water pressure and voltage tests to ensure safe operation of the boiler.

  • Adopt PLC plus touch screen control, one button to start, remote monitoring.

  • Quiet, clean, in line with environmental requirements.

  • Compact structure, beautiful appearance, small footprint and easy installation.


Parameter

Type LDR0.15 LDR0.2 LDR0.3 LDR0.5
Project Unit
Rated evaporation t/h 0.15 0.2 0.3 0.5
Rated working pressure MPa 0.7/1.0 0.7/1.0 0.7/1.0 0.8/1.0
Staturated steam temperature ℃ 170/193 170/193 170/193 184/193
Input Power KW 108 144 216 360
Input current A 162 216 324 540
Rated pressure V 3N AC 50Hz 380V
Power×Group KW×P 18×6 18×8/24×6 27×8 36×10
a Main steam valve diameter DN 25 32 32 50
b Safety valve diameter DN 25 25 25 40
c Inlet diamater DN 20 20 20 25
d Blowoff Valve diameter DN 25 25 25 40
Overall size L mm 1100 1280/1150 1300 1580
W mm 950 1150/950 1200 1350
H mm 2050 2100/2050 2200 2600
A mm - - 1200 1200
B mm - - 500 500
C mm - - 1800 1800
Weight kg 330/400 450/530 680/740 980/1080

Feature

1 . Vertical electric steam boiler


2 . Thermal efficiency is very high


3 . Each group of heating elements, set independently


4 . Power automatic switching


5 . Can be set to manual or automatic mode


6 . Multiple protection functions in operation

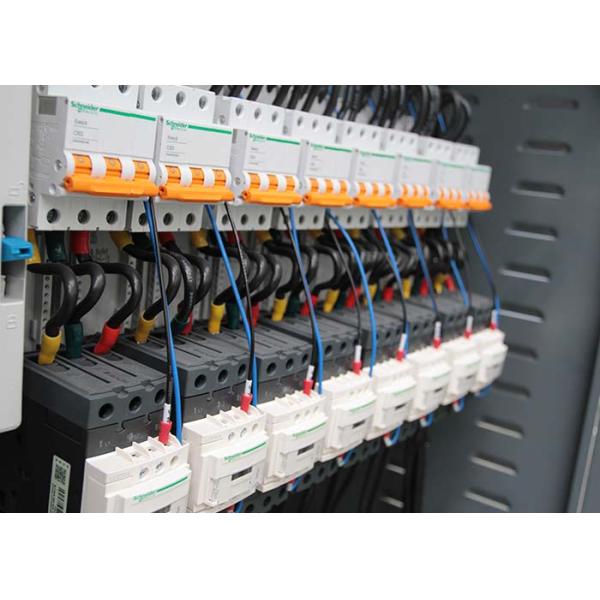

Product picture

Electric Commercial Electric Boiler Compact Structure Easy Installation

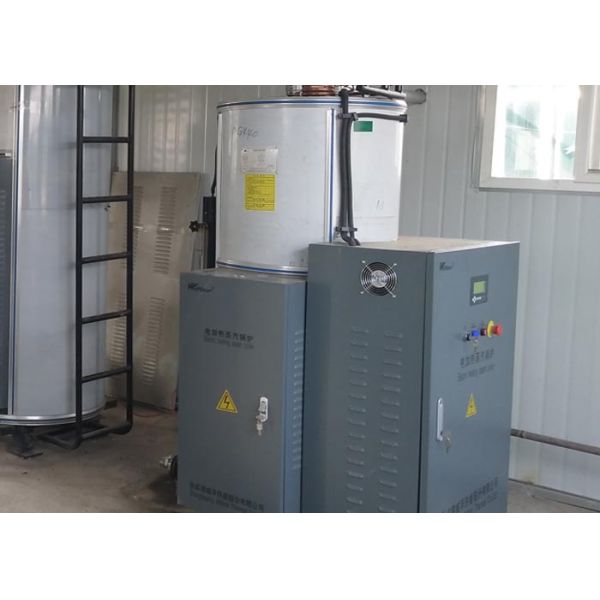

Project case diagram

Electric Commercial Electric Boiler Compact Structure Easy Installation
