Food Processing 6T Natural Gas Fired Steam Boiler For Industry
Food Processing 6T Natural Gas Fired Steam Boiler For Industry
Food Processing 6T Natural Gas Fired Steam Boiler For Industry
Food Processing 6T Natural Gas Fired Steam Boiler For Industry
Food Processing 6T Natural Gas Fired Steam Boiler For Industry
Food Processing 6T Natural Gas Fired Steam Boiler For Industry
Specifications
Brand Name :
WILFORD
Model Number :
WNS
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
25 Set/Sets per Month
Delivery Time :
15-20 working days
Packaging Details :
Packing in wooden box
Rated evaporation :
6T/h
Rated working pressure :
1.25Mpa
Staturated steam temperature :
193℃
Main steam valve diamater :
125DN
Safety valve diameter :
65*2DN
Weight :
18.5T
Description

Gas - Fired Steam Boilers For The Food Processing

Gas - Fired Steam Boilers introduction

  • After preseting, the purge functions to improve the working conditions of combustion and longevity.

  • The unique design of the combustion chamber, increasing the radiation heating furnace area, reducing the size of the boiler, reducing NOx emissions.

  • Front and back breathing tube boiler box is a multi-level sealed approach to ensure that no leakage breathing.

  • The large steam room and high quality steam.

  • The horizontal structure has adequate heating.Furnace biliary low settings, the water level of security is large.

Gas - Fired Steam Boilers Parameter

Model WNS4 WNS6 WNS8 WNS10 WNS12 WNS15 WNS20
Project Unit
Rated evaporation t/h 4 6 8 10 12 15 20
Rated working pressure MPa 1.25 1.25 1.25 1.25 1.25 1.25 1.25
Staturated steam temperature ℃ 193 193 193 193 193 193 193
Fuel consumption Light diesel oil kg/h 260 390 520 650 780 975 1300
Natural gas Nm³/h 280 420 560 700 840 1050 1400
LPG Nm³/h 120 180 240 300 360 450 600
City gas Nm³/h 680 1020 1360 1700 2040 2550 3400
a Main steam valve diameter DN 100 125 150 150 200 200 250
b Safety valve diameter DN 50×2 65×2 80×2 80×2 80×2 80×2 80×2
c Inlet diamater DN 50 50 65 65 65 65 80
d Blowoff Valve diameter DN 50 50 50 50 65 65 65
e Chimney diameter DN 500 650 800 900 1000 1000 1250
Overall size L mm 6310 7200 7780 8330 8740 10730 11250
L1 mm 5230 5960 6320 7040 7450 8110 8360
W mm 2950 3190 3440 3475 3475 3850 4395
W1 mm 2350 2650 2980 3040 2700 2950 3250
H mm 3120 3610 3700 3800 4050 4210 4650
H1 mm 2530 2850 2920 3050 3280 3510 3820
Weight T 13.8 18.5 20 23 30.1 36.5 49.5

Gas - Fired Steam Boilers Advantage

1 . Full combustion, good heat transfer effect


2 . Good sealing, no smoke leakage


3 . Large steam space, good steam quality


4 . Heat absorption balance of each part

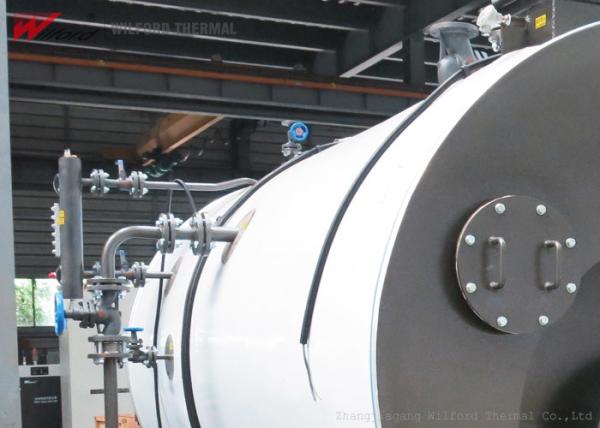

Gas - Fired Steam Boilers picture

Food Processing 6T Natural Gas Fired Steam Boiler For Industry

Project case diagram

Food Processing 6T Natural Gas Fired Steam Boiler For Industry

Application

  • Washing ironing industry: dry washer, dryer and washing machine, dryer, ironing machine, electric iron, and other ancillary equipment.

  • Food machinery industry: tofu machine, steam box, sterilization pot, packing machine, coating equipment, sealing machine, such as supporting the use of equipment

  • Biological Chemical Industry: fermentation tank, reaction kettle, sandwich pot, mixer, emulsifying machine supporting the use of equipment

  • Other industries: oil field, car) steam cleaning industry, (hotel, school, dormitory, batch plant) , (Bridges, railways) concrete curing, leisure (salon), sauna bath, heat exchange equipment.
