4 T/H Electric Heating Steam Boiler High Power Small Heat Loss For Food Processing
4 T/H Electric Heating Steam Boiler High Power Small Heat Loss For Food Processing
4 T/H Electric Heating Steam Boiler High Power Small Heat Loss For Food Processing
4 T/H Electric Heating Steam Boiler High Power Small Heat Loss For Food Processing
4 T/H Electric Heating Steam Boiler High Power Small Heat Loss For Food Processing
4 T/H Electric Heating Steam Boiler High Power Small Heat Loss For Food Processing
Specifications
Brand Name :
WILFORD
Model Number :
WDR
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
25 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Packing in wooden box
Condition :
New
Style :
Horizontal
Fuel :
Electric
Rated Evaporation :
4T/h
Weight :
4.5/5.2T
Usage :
Industrial
Description

4T / H Electric Heating Steam Boiler For Food processing

Product introduction

  • All electrical components with CE and UL marks --ensure safety and long life service.

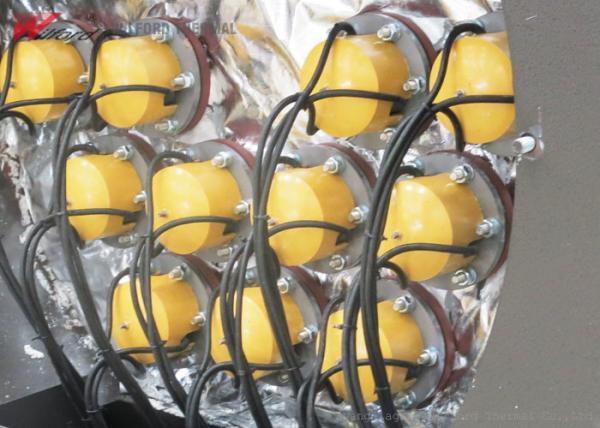

  • Each heating element use a concentrated beam flange connection,independently arrangement, simple structure, high mechanical strength, safe, reliable, convenient replacement, long service life.

  • Large steam room , super quality steam.

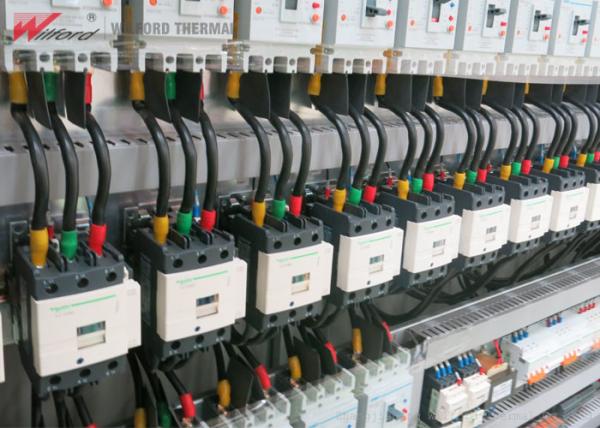

  • Boiler and control cabinet is seperated ,so control components could away from heat source .One set or many sets could together for multi-usage.

  • PLC microcomputer programmable control and display screen. Automatic water outlet temperature control settings. Screen displays equipment operating parameters and fault alarm.

Parameter

Type WDR0.75 WDR1 WDR1.5 WDR2 WDR3 WDR4
Project Unit
Rated evaporation t/h 0.75 1 1.5 2 3 4
Rated working pressure MPa 1.0/1.25 1.0/1.25 1.0/1.25 1.0/1.25 1.0/1.25 1.0/1.25
Staturated steam temperature ℃ 184/193 184/193 184/193 184/193 184/193 184/193
Input Power KW 540 720 1080 1440 2160 2880
Input current A 810 1080 1620 2160 3240 4320
Rated pressure V 3N AC 50Hz 380V
Power×Group KW×P 36×15 36×20 36×30 36×40 36×60 36×80
Dimension
a Main steam valve diameter DN 40 40 65 65 80 100
b Safety valve diameter DN 2×40 2×40 2×40 2×40 2×40 2×50
c Inlet diamater DN 25 25 25 25 40 40
d Blowoff Valve diameter DN 40 40 40 40 40 40
Overall size L mm 2800 2950 3450 3500 3950 4100
L1 mm 2400 2500 3050 2880 3200 3550
W mm 1800 1900 2180 2000 2100 2300
W1 mm 1550 1600 1430 1880 1980 2120
H mm 1550 1600 2100 2500 2650 2980
H1 mm 1300 1350 1850 1900 2100 2200
Electrical control cabinet size ALength mm 1200 1200 1500 2200 2000(2) 2200(2)
BWidth mm 500 600 600 700 700 700
CHight mm 1800 1800 2000 2000 2200 2200
Weight T 1.6/2.0 1.8/2.2 2.2/2.7 2.8/3.3 3.5/4.1 4.5/5.2

Feature

1 . Horizontal high power steam boiler


2 . Electrical components have CE and UL certification marks


3 . Use concentrated beam flange connection


4 . The electronic control components are away from the heat source


5 . Reasonable structure, safe and reliable


6 . PLC microcomputer control

Product picture

4 T/H Electric Heating Steam Boiler High Power Small Heat Loss For Food Processing

Project case diagram

4 T/H Electric Heating Steam Boiler High Power Small Heat Loss For Food Processing
