Normal Pressure Industrial Electric Hot Water Boiler For Heating Engineering
Normal Pressure Industrial Electric Hot Water Boiler For Heating Engineering
Normal Pressure Industrial Electric Hot Water Boiler For Heating Engineering
Normal Pressure Industrial Electric Hot Water Boiler For Heating Engineering
Specifications
Brand Name :
WILFORD
Model Number :
CWDR
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
15 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Wooden box package
Rated thermal power :
1.05-2.1MW
Total heating capacity :
900000-1800000kcal
Rated Working pressure :
Ordinary Pressure
Input power :
1080-2160KW
Input current :
1620-3240A
Weight :
1870-3960kg
Description

Industrial Electric Hot Water Boiler For Heating Engineering

Product introduction

  • This is a constant piezoelectric hot water boiler suitable for thermal cycling in various modes.

  • The furnace body and the electric control cabinet are installed separately, so that the service life of the boiler is not affected by the heat aging of the electrical components.

  • The selection of high quality electric heating tubes is beneficial to the long-term operation of the boiler.

  • The boiler has a long service life, clean, environmental protection and strong usability.

  • Use high quality electromagnetic controllers.

  • The whole operation process is fully automated and does not require human operation, which is safe and simple.

  • Providing on-site installation to provide customers with the best quality service.


Parameter

Type CWDR0.7-95/70 CWDR1.05-95/70 CWDR1.4-95/70 CWDR2.1-95/70
Project Unit
Rated thermal power MW 0.7 1.05 1.4 2.1
Total heating capacity 104kcal 60 90 120 180
Rated working pressure MPa Ordinary Pressure
Input Power KW 720 1080 1440 2160
Input current A 1080 1620 2160 3240
Rated Voltage V 3N AC 50HZ 380V
Power×Group KW×P 36×20 36×30 36×40 36×60
Water inlet diameter DN 100 80×2 80×2 150
Water outlet diameter DN 100 100 100 150
Blowoff valve diameter DN 50 50 50 50
Overall size Length mm 2500 2750 3100 3500
Width mm 1350 1500 1750 1960
Height mm 1700 2050 2200 2350
Weight kg 1650 1870 2500 3960


Feature

1 . Normal pressure

2 . Using electricity as a heat source


3 . High quality stainless steel electric heating tube


4 . Optional electromagnetic controller


5 . Branch separate switching function


6 . Multiple alarm interlocks

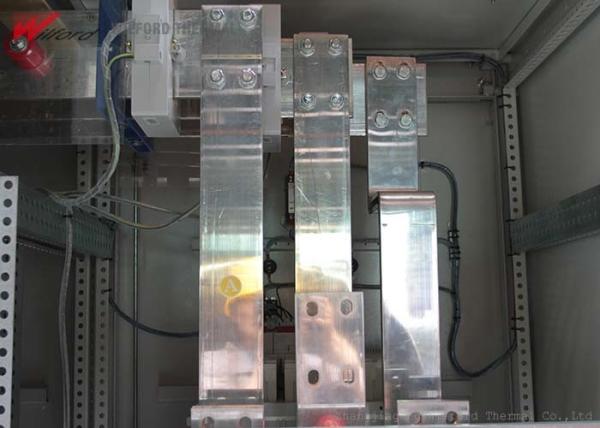

Product picture

Normal Pressure Industrial Electric Hot Water Boiler For Heating Engineering
