Hotel Cleaning High Efficiency Hot Water Boiler Complete Control Functions
Hotel Cleaning High Efficiency Hot Water Boiler Complete Control Functions
Hotel Cleaning High Efficiency Hot Water Boiler Complete Control Functions
Hotel Cleaning High Efficiency Hot Water Boiler Complete Control Functions
Specifications
Brand Name :
WILFORD
Model Number :
CWDR
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
25 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Packing in wooden box
Rated thermal power :
0.7-2.1MW
Rated Working pressure :
Atmospheric pressure
Water inlet diameter :
100-150DN
Water outlet diameter :
100-150DN
Blowoff valve diameter :
50DN
Weight :
1.65-3.95T
Description

Hot Sale High Efficiency Electric Hot Water Boiler For Hotel Cleaning

Product introduction

  • The boiler's thermal power is above 300,000 kcal.

  • Because the boiler and control cabinet are installed separately, it is convenient for customers to install and repair.

  • The material of the electric heating tube used is divided into stainless steel or alloy steel material, and the quality is absolutely good.

  • The controller has high performance, guaranteed quality and complete control functions.

  • It has anti-burning, automatic hydration, anti-electric shock, automatic start and stop and other protection functions.


Parameter

Type CWDR0.7-95/70 CWDR1.05-95/70 CWDR1.4-95/70 CWDR2.1-95/70
Project Unit
Rated thermal power MW 0.7 1.05 1.4 2.1
Total heating capacity 104kcal 60 90 120 180
Rated working pressure MPa Ordinary Pressure
Input Power KW 720 1080 1440 2160
Input current A 1080 1620 2160 3240
Rated Voltage V 3N AC 50HZ 380V
Power×Group KW×P 36×20 36×30 36×40 36×60
Water inlet diameter DN 100 80×2 80×2 150
Water outlet diameter DN 100 100 100 150
Blowoff valve diameter DN 50 50 50 50
Overall size Length mm 2500 2750 3100 3500
Width mm 1350 1500 1750 1960
Height mm 1700 2050 2200 2350
Weight kg 1650 1870 2500 3960


Feature

1 . Separation of furnace body and control cabinet


2 . The electronic control components are away from the heat source


3 . Reasonable internal structure


4 . Up to 98% thermal efficiency


5 . Easy to install and maintain

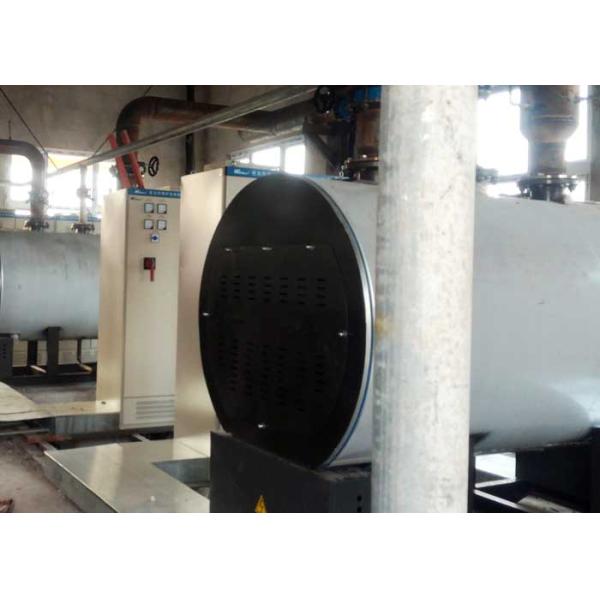

Product picture

Hotel Cleaning High Efficiency Hot Water Boiler Complete Control Functions

Application

  • It is widely used in hospitals, schools, textile mills, garment factories, clothing supermarkets, garment factories, dry cleaners, restaurants.

  • Hotels, restaurants, hotels, canteens, restaurants, food factories, beverage factories, soy products factories, canneries, wineries.

  • Pharmaceutical factory, packaging factory, building material factory, paint factory, beauty salon, bath center, sauna, steam room, baby swimming pool, etc.

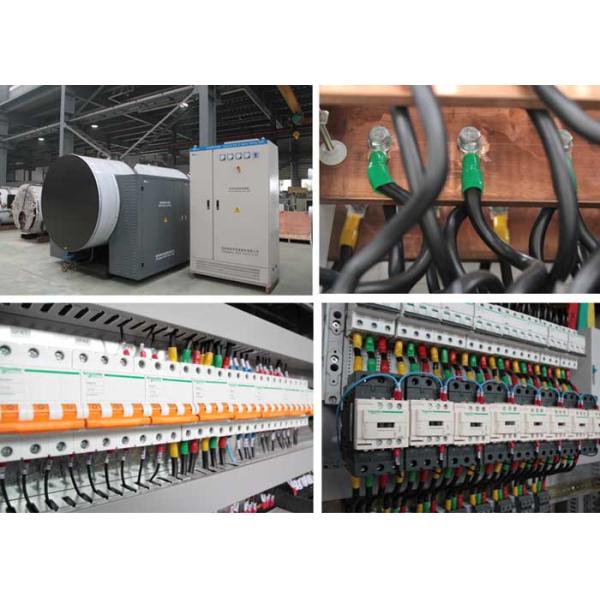

Project case diagram

Hotel Cleaning High Efficiency Hot Water Boiler Complete Control Functions
