Quiet Industrial Electric Hot Water Boiler , In Line Hot Water Heater Electric
Quiet Industrial Electric Hot Water Boiler , In Line Hot Water Heater Electric
Quiet Industrial Electric Hot Water Boiler , In Line Hot Water Heater Electric
Quiet Industrial Electric Hot Water Boiler , In Line Hot Water Heater Electric
Quiet Industrial Electric Hot Water Boiler , In Line Hot Water Heater Electric
Quiet Industrial Electric Hot Water Boiler , In Line Hot Water Heater Electric
Specifications
Brand Name :
WILFORD
Model Number :
CWDR
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
15 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Packing in wooden box
Rated thermal power :
0.7-2.1MW
Input power :
720-2160KW
Input current :
1080-3240A
Rated voltage :
3N AC 50HZ 380V
Overall size :
Depends
Weight :
1.65-3.96T
Description

Advanced Electric Hot Water Boiler For Cleaning And Washing Industry

Product introduction

1 . Green and environmentally friendly boiler, quiet, clean, in line with strict environmental requirements.


2 . The heating tube is made of imported alloy steel material with high quality and long service life.


3 . The design of the control cabinet, the standard specification, the protection level is very high, to ensure the stable operation of the boiler.


4 . Electricity is the source of power, no smoke, low heat loss, no harm to the environment.


5 . When the thermal power reaches more than 300,000 kcal, we use the method of separating the furnace body and the control cabinet.

6 . Equipped with high performance controller.


7 . High degree of automation, to a certain extent, improve work efficiency.


Parameter

Type CWDR0.7-95/70 CWDR1.05-95/70 CWDR1.4-95/70 CWDR2.1-95/70
Project Unit
Rated thermal power MW 0.7 1.05 1.4 2.1
Total heating capacity 104kcal 60 90 120 180
Rated working pressure MPa Ordinary Pressure
Input Power KW 720 1080 1440 2160
Input current A 1080 1620 2160 3240
Rated Voltage V 3N AC 50HZ 380V
Power×Group KW×P 36×20 36×30 36×40 36×60
Water inlet diameter DN 100 80×2 80×2 150
Water outlet diameter DN 100 100 100 150
Blowoff valve diameter DN 50 50 50 50
Overall size Length mm 2500 2750 3100 3500
Width mm 1350 1500 1750 1960
Height mm 1700 2050 2200 2350
Weight kg 1650 1870 2500 3960


Feature

  • Electric heating

  • Clean, hygienic, non-polluting

  • Thermal loss is minimized

  • Controller performance is good

  • Multiple protection devices

  • Long life, safe and efficient

  • It can use the night peak valley electricity to design heat storage energy storage equipment

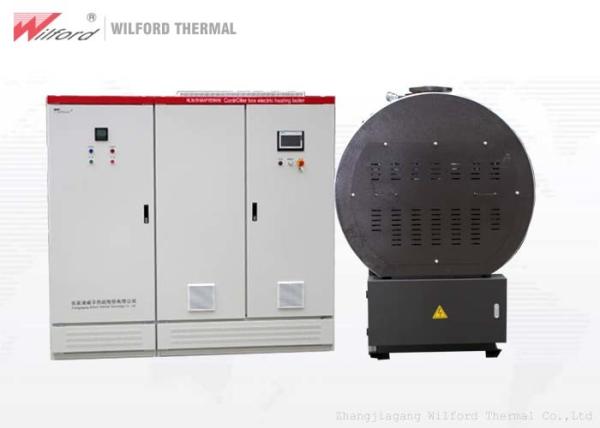

Product picture

Quiet Industrial Electric Hot Water Boiler , In Line Hot Water Heater Electric

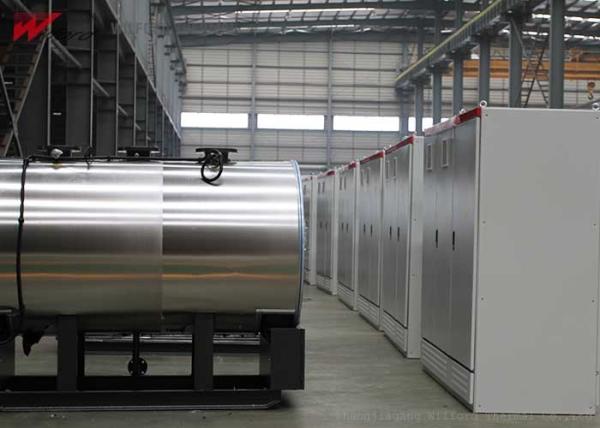

Project case diagram

Quiet Industrial Electric Hot Water Boiler , In Line Hot Water Heater Electric
