Safe Reliable High Efficiency Hot Water Boiler Good Heat Transfer Effect
Safe Reliable High Efficiency Hot Water Boiler Good Heat Transfer Effect
Specifications
Brand Name :
WILFORD
Model Number :
DZL
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Export wooden Packing
Rated thermal power :
1.4-4.2MW
The rated steam pressure :
0.7-1.6Mpa
The water temperature :
95-130℃
Design thermal efficiency :
80.8/80/82.3%
Fuel consumption :
351.3-1041.9kg/h
Style :
Horizontal
Description

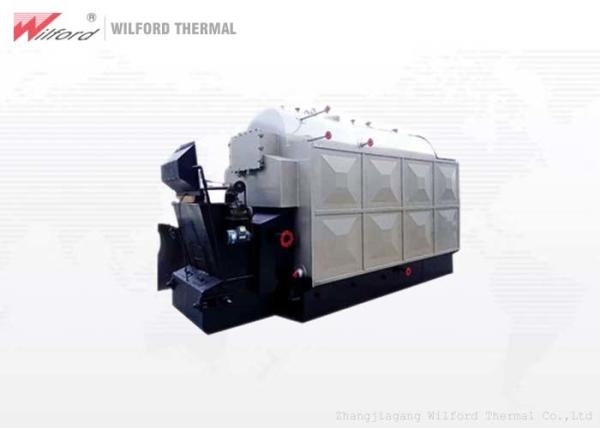

Safe & Reliable Coal Hot Water Boiler For Central Heating

Product introduction

  • Advanced technology: hot water boiler backwater injection, arched tube sheet, up and down natural circulation plus ejector.

  • Unique design structure: herringbone furnace arch, threaded pipe, three-dimensional guard shell.

  • High thermal efficiency: the combustion intensity is relatively high, the combustion is more complete, and the heat transfer effect is good.

  • Strong adaptability: coal burning, strong adaptability to coal types, and sufficient output.

  • Environmental protection: self-contained dust collector, good dust removal effect, less smoke emission, less environmental pollution.

  • High security: automatic control, high work efficiency.


Parameter

Type DZL0.7 DZL1.4 DZL2.8 DZL4.2 DZL5.6 DZL7
Project Unit
Rated thermal power MW 0.7(600000 kcal/h) 1.4(1.2 million kcal/h) 2.8(2.4 million kcal/h) 4.2(3.6 million kcal/h) 5.6(4.8 million kcal/h) 7(6million kcal/h)
The rated steam pressure Mpa 0.7,1.0,1.25,1.6
The water temperature/return water temperature ℃ 95/70,115/70,130/70
Avaible fuel (AⅡ)
Design the thermal efficiency ％ 80.2 80.8 80 82.3 80.3 80.8
The fuel consumption Kg/h 129 351.3 693 1041.9 1089 1707.8
The transport dimension L*W*H mm 5200*2100*3000 5525*2440*3400 6081*2450*3500 8000*2700*3550 8000*2900*3550 8980*3200*3600


Advantage

1 . Using coal as fuel


2 . High thermal efficiency and sufficient output


3 . Use threaded tobacco pipe and herringbone furnace arch


4 . Boiler backwater injection technology


5 . Fuel combustion is sufficient


6 . Maximize resources
