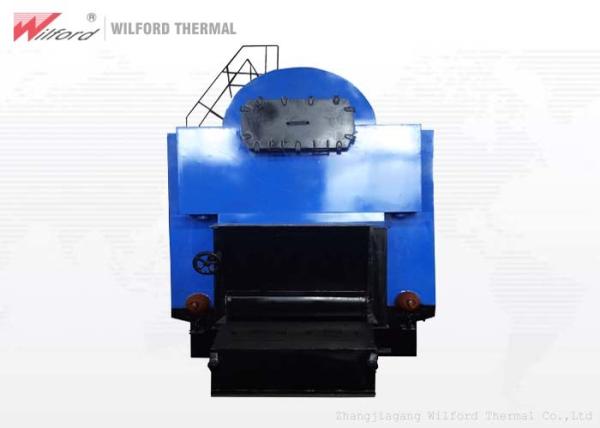

Biomass Fired Large Hot Water Boiler Sufficient Combustion Low Pollution Index
Biomass Fired Large Hot Water Boiler Sufficient Combustion Low Pollution Index
Specifications
Brand Name :
WILFORD
Model Number :
DZL
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Export wooden Packing
Rated thermal power :
0.7-2.8MW
The rated steam pressure :
0.7-1.6Mpa
Design thermal efficiency :
80.2/80.8/80%
Fuel consumption :
129/351.3/693kg/h
The transport dimension :
Depends
Installation structure :
The fast or assembly
Description

Energy - Saving Large Wood Pellet Biomass Hot Water Boiler

Product introduction

  • It adopts vertical structure design and has large capacity.

  • The furnace arch and the grate are specially designed, the coal combustion is even and sufficient, and the cost input is reduced.

  • The pollution index is low, and the smoke will be treated by the dust collector, thus reducing the emission of smoke.

  • The design structure of the threaded tobacco pipe is used to greatly enhance the heat transfer effect.

  • It is efficient and stable by citing hot water boiler backwater injection and up-and-out natural circulation plus ejector technology.


Parameter

Type DZL0.7 DZL1.4 DZL2.8 DZL4.2 DZL5.6 DZL7
Project Unit
Rated thermal power MW 0.7(600000 kcal/h) 1.4(1.2 million kcal/h) 2.8(2.4 million kcal/h) 4.2(3.6 million kcal/h) 5.6(4.8 million kcal/h) 7(6million kcal/h)
The rated steam pressure Mpa 0.7,1.0,1.25,1.6
The water temperature/return water temperature ℃ 95/70,115/70,130/70
Avaible fuel (AⅡ)
Design the thermal efficiency ％ 80.2 80.8 80 82.3 80.3 80.8
The fuel consumption Kg/h 129 351.3 693 1041.9 1089 1707.8
The transport dimension L*W*H mm 5200*2100*3000 5525*2440*3400 6081*2450*3500 8000*2700*3550 8000*2900*3550 8980*3200*3600
Boiler installation structure The fast The assembly


Advantage

1 . Large furnace design


2 . Reasonable water circulation system


3 . Convective heating surface is a threaded pipe


4 . Good heat transfer effect


5 . The combustion chamber has a large space and is fully burned


6 . Low operating costs
