Waste Material Wood Chips Biomass Hot Water Boiler With Good Dust Removal Effect
Waste Material Wood Chips Biomass Hot Water Boiler With Good Dust Removal Effect
Specifications
Brand Name :
WILFORD
Model Number :
DZL
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Export wooden Packing
Rated thermal power :
0.7MW
The rated steam pressure :
0.7-1.6Mpa
Design thermal efficiency :
80.2%
Fuel consumption :
129kg/h
The transport dimension :
5200*2100*3000mm
Installation structure :
The fast or assembly
Description

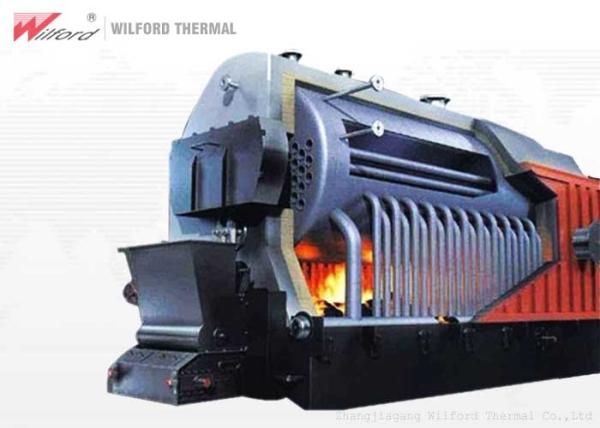

Waste Material Wood Chips Biomass Hot Water Boiler

Product introduction

  • Biomass hot water boiler with good dust removal effect.

  • The slag remover can remove the waste cinder.

  • Excess flue gas can be discharged through the induced draft fan to the chimney.

  • The convection heating surface includes the water wall of the left and right sides of the furnace and the wings of the furnace, and the heat transfer effect is good.

  • The whole body structure is reasonable and easy to install.


Parameter

Type DZL0.7 DZL1.4 DZL2.8 DZL4.2 DZL5.6 DZL7
Project Unit
Rated thermal power MW 0.7(600000 kcal/h) 1.4(1.2 million kcal/h) 2.8(2.4 million kcal/h) 4.2(3.6 million kcal/h) 5.6(4.8 million kcal/h) 7(6million kcal/h)
The rated steam pressure Mpa 0.7,1.0,1.25,1.6
The water temperature/return water temperature ℃ 95/70,115/70,130/70
Avaible fuel (AⅡ)
Design the thermal efficiency ％ 80.2 80.8 80 82.3 80.3 80.8
The fuel consumption Kg/h 129 351.3 693 1041.9 1089 1707.8
The transport dimension L*W*H mm 5200*2100*3000 5525*2440*3400 6081*2450*3500 8000*2700*3550 8000*2900*3550 8980*3200*3600
Boiler installation structure The fast The assembly


Advantage

1 . Usescrew thread smoke tube

2 . Special herringbone furnace arch


3 . Up and down natural circulation plus ejector technology


4 . Install dust collector, induced draft fan, slag remover


5 . High thermal efficiency and sufficient output


6 . Reliable and durable, long life
