Vertical 100kg/H 300kg/H Oil Fired Steam Boiler for Laundry Washing Machines
Vertical 100kg/H 300kg/H Oil Fired Steam Boiler for Laundry Washing Machines
Vertical 100kg/H 300kg/H Oil Fired Steam Boiler for Laundry Washing Machines
Vertical 100kg/H 300kg/H Oil Fired Steam Boiler for Laundry Washing Machines
Specifications
Brand Name :
WILFORD
Model Number :
LWS
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Packing in wooden box
Rated evaporation :
200-300kg/h
Rated working pressure :
0.7Mpa
Main steam valve diameter :
25-32DN
Dimension(L*W*H) :
Depends
Weight :
The models are different
Usage :
Concrete Steam Curing Machine
Description

Vertical Tubeless Diesel Oil Fired Steam Boiler For Concrete Steam Curing Machine

Oil Fired Steam Boiler introduction

1 .The product uses the built-in furnace pipe,vertical non-pipe,smoke four-pass structure.


2 . The heat transfer efficiency of flue gas to the furnace water is high, and the energy saving effect is remarkable.


3 . Non-pipe design can protect the product from scalig and burning,which reduces the maintenance cost.


4 . High thermal efficiency and long service life.


5 .The upper ring large steam room and separation measures for boiler and steam below below water can ensure the availability of high-quality steam.


Oil Fired Steam Boiler Parameter

Model LWS0.05-0.7-Y.Q LWS0.1-0.7-Y.Q LWS0.15-0.7-Y.Q LWS0.2-0.7-Y.Q LWS0.3-0.7-Y.Q
Project Unit
Rated evaporation t/h 0.05 0.1 0.15 0.2 0.3
Rated working pressure MPa 0.7 0.7 0.7 0.7 0.7
Staturated steam temperature ℃ 170 170 170 170 170
Fuel consumption Light diesel oil kg/h 3.5 7 10.5 14 21
Natural gas Nm³/h 4 8 12 16 24
LPG Nm³/h 1.5 3 4.5 6 9
City gas Nm³/h 8.5 17 25.5 34 51
Dimension
a Main steam valve diameter DN 15 25 25 32 32
b Safety valve diameter DN 20 25 25 25 25
c Inlet diamater DN 15 20 20 20 20
d Blowoff Valve diameter DN 20 20 25 25 25
e Chimney diameter DN 100 120 150 150 200
Overall size L mm 870 1020 1150 1260 1270
W mm 930 1080 1260 1400 1570
W1 mm 640 760 890 970 1040
H mm 1660 1750 1840 2160 2400
H1 mm 1460 1480 1520 1840 2090
φ Diameter mm 630 750 880 960 1000
Weight kg 330 470 610 780 850


Oil Fired Steam Boiler Advantage

  • Adopt vertical tubeless design

  • Not easy to scale and prolong service life

  • Low exhaust gas temperature and sufficient heat transfer

  • Good heat transfer effect

  • Low maintenance costs

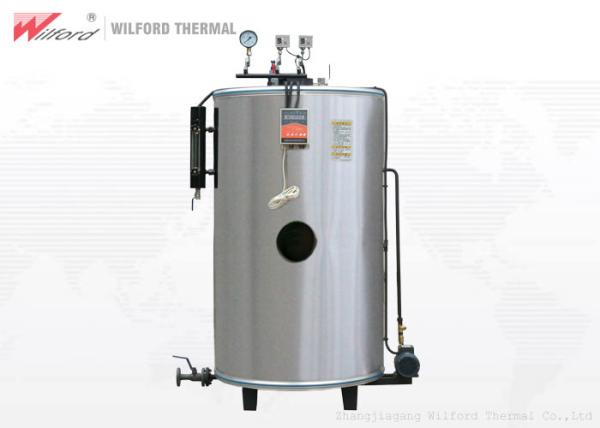

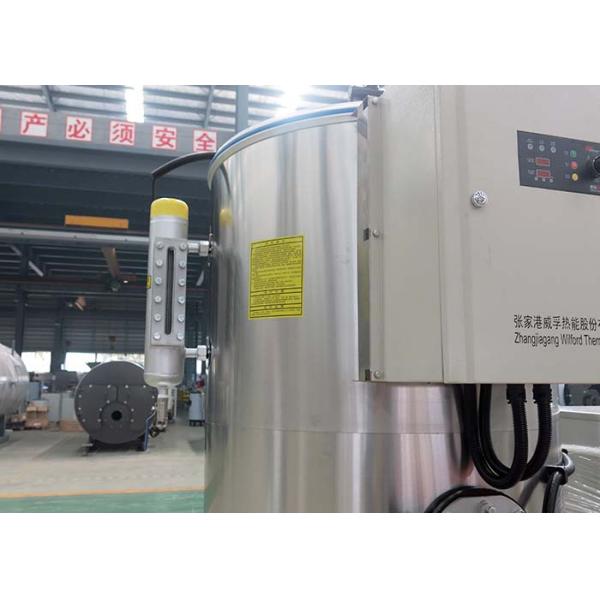

Oil Fired Steam Boiler picture

Vertical 100kg/H 300kg/H Oil Fired Steam Boiler for Laundry Washing Machines

FAQ

Q : Are you a factory or a trading company?
A : We are a 20 years old industrial boiler factory, specializing in gas oil diesel electric fired boilers.

Q : What is the Warranty for the boilers?

A : Our steam boiler warranty is one year, During the warranty period, any parts damaged, you can get a new parts for free.

Q : How long should we wait for delivery?

A : Usually it will take about 35-45 days for pressured boilers, If you need to change the voltage or pressure, it need more time.
Q : What about your payment term?
A : Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.
