100KG 200KG 300KG Oil Fired Steam Boiler
100KG 200KG 300KG Oil Fired Steam Boiler
100KG 200KG 300KG Oil Fired Steam Boiler
100KG 200KG 300KG Oil Fired Steam Boiler
Specifications
Brand Name :
WILFORD
Model Number :
LWS
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Packing in wooden box
Rated evaporation :
100/200/300kg/h
Rated working pressure :
7bar
Staturated steam temperature :
170℃
Dimension(L*W*H) :
Depends
Weight :
Depends
Usage :
industrial,chemical,medical,food,washing etc.
Description

Industrial Automatic Oil Fired Steam Boiler 100KG 200KG 300KG

Oil Fired Steam Boiler introduction

  • Safe and reliable : containing no water pipes or fire tubes,which is exempt from exploding of tubes.

  • Maintenance cost is low : boiler will not burn because of scaling.

  • Quality steam : large steam room and separation measures for boiler.

  • High efficiency : double W-shaped four-pass has big heat transfer coefficient.

  • Saves space and easy for installation : vertical structure is compact and beautiful.


Oil Fired Steam Boiler Parameter

Model LWS0.05-0.7-Y.Q LWS0.1-0.7-Y.Q LWS0.15-0.7-Y.Q LWS0.2-0.7-Y.Q LWS0.3-0.7-Y.Q
Project Unit
Rated evaporation t/h 0.05 0.1 0.15 0.2 0.3
Rated working pressure MPa 0.7 0.7 0.7 0.7 0.7
Staturated steam temperature ℃ 170 170 170 170 170
Fuel consumption Light diesel oil kg/h 3.5 7 10.5 14 21
Natural gas Nm³/h 4 8 12 16 24
LPG Nm³/h 1.5 3 4.5 6 9
City gas Nm³/h 8.5 17 25.5 34 51
Dimension
a Main steam valve diameter DN 15 25 25 32 32
b Safety valve diameter DN 20 25 25 25 25
c Inlet diamater DN 15 20 20 20 20
d Blowoff Valve diameter DN 20 20 25 25 25
e Chimney diameter DN 100 120 150 150 200
Overall size L mm 870 1020 1150 1260 1270
W mm 930 1080 1260 1400 1570
W1 mm 640 760 890 970 1040
H mm 1660 1750 1840 2160 2400
H1 mm 1460 1480 1520 1840 2090
φ Diameter mm 630 750 880 960 1000
Weight kg 330 470 610 780 850


Oil Fired Steam Boiler Feature

1 . No tube, four return structure design


2 . Threaded pipe is a convection heating surface


3 . The furnace outlet temperature is low


4 . Install waste heat recovery heat exchanger


5 . Minimize waste of resources

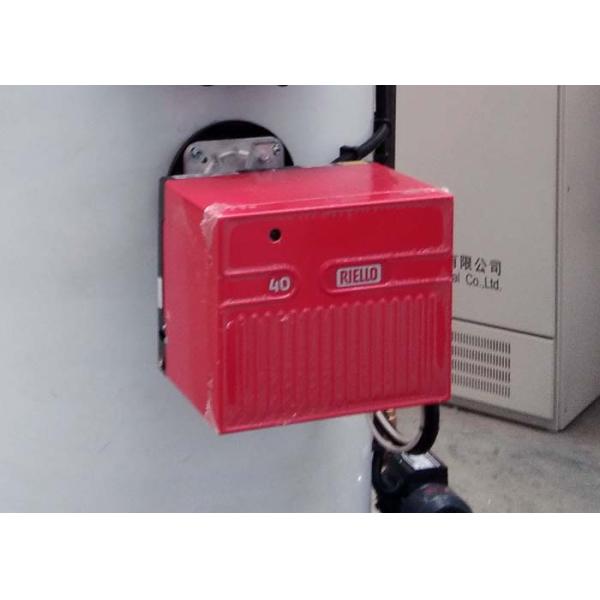

Product picture

100KG 200KG 300KG Oil Fired Steam Boiler
