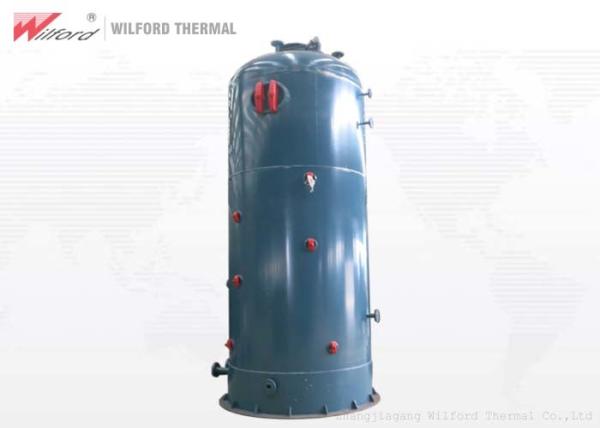

Chemical Industry Coal Fired Steam Boiler Full Combustion Low Heat Loss
Chemical Industry Coal Fired Steam Boiler Full Combustion Low Heat Loss
Specifications
Brand Name :
WILFORD
Model Number :
DZL
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Export wooden Packing
Rated evaporation :
2-4T/h
The rated steam temperature :
170-226℃
Feed temperature :
20/60/105℃
Design thermal efficiency :
80.1/80.3/80.6%
Fuel consumption :
378.4-729kg/h
Usage :
Chemical Industry
Description

Low Investment Costs Coal Fired Steam Boiler For Chemical Industry

Product introduction

  • It has strong adaptability to coal types, and adopts the design structure of arched tube sheets and threaded tubes.

  • With the operation of the grate, the coal will be preheated, dried, ignited, burned, etc.

  • It adopts the water circulation system with up-and-out natural circulation and ejector, which is stable and efficient.

  • After the fuel is burned, it will fall into the coal hopper and be discharged from the furnace at any time by the slag removing machine.

  • The unique herringbone furnace arch design effectively improves the conditions of the fire.

  • The boiler adopts remote and near-ground monitoring, which is easy to operate, safe and reliable.


Parameter

Type DZL1 DZL2 DZL3 DZL4 DZL6 DZL8 DZL10
Project Unit
The enaporation T/h 1 2 3 4 6 8 10
The rated steam pressure Mpa 0.7,1.0,1.25,1.6,2.5
The rated steam temperature ℃ 170,184,194,203,226
Feed temperature ℃ 20,60,105
Avaible fuel Ⅱ(AⅡ)
Design the thermal efficiency ％ 80.2 80.1 80.3 80.6 80.3 80.5 80.6
The fuel consumption Kg/h 181 378.4 493 723 1089 1509 1750
The transport dimension
L*W*H(mm)		 mm 5200*2100*3000 5525*2440*3400 6300*2650*3400 6081*2575*3400 8000*2900*3550 7526*3340*4300 8980*3200*3550


Advantage

1 . The volume of the furnace is large, and the output is sufficient


2 . Coal falls from the coal bucket at the front of the grate


3 . The coal is preheated to dry, catch fire, burn


4 . Up and down natural circulation plus ejector


5 . The flue gas enters the threaded pipe through the front pipe


6 . Full combustion, low heat loss

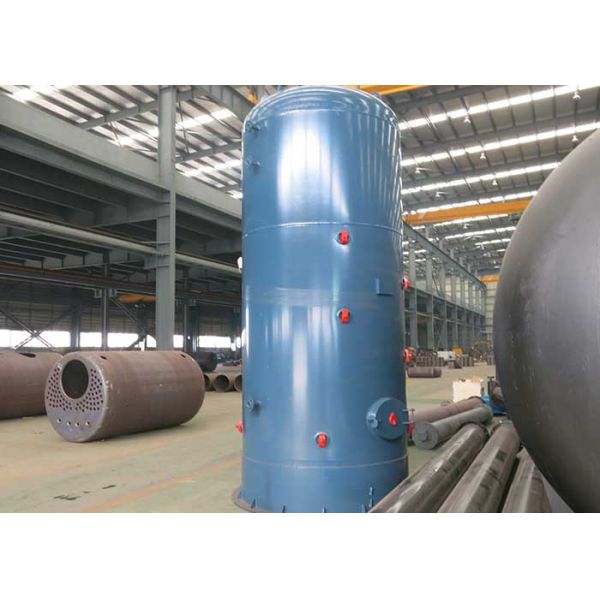

Product picture

Chemical Industry Coal Fired Steam Boiler Full Combustion Low Heat Loss
