High Efficiency Explosion Proof Compact Steam Generator For Industry Using
High Efficiency Explosion Proof Compact Steam Generator For Industry Using
Specifications
Brand Name :
WILFORD
Model Number :
LDR
Certification :
ASME,CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Export wooden Packing
Rated evaporation :
12-100kg/h
Rated working pressure :
0.7Mpa
Input power :
9-72KW
Rated voltage :
3N AC 50HZ 380V
Type :
Natural Circulation
Usage :
Industrial
Description

High Efficiency Explosion Proof Electric Steam Generator for Industry

Product introduction

1. The safety of special equipment has always been concerned. Among them, explosion protection is the most important thing. It is related to people's life and property safety. Therefore, Weifu has customized a small number of small explosion-proof electric steam boilers for customers.


2. The production of explosion-proof boilers is equivalent to the double safety of the original boiler safety, and strengthens the safety function, thus providing users with a safe and stable experience.


3. Our factory is equipped with special facilities such as large-scale professional nuclear radiation nondestructive testing room and water pressure test. Specialized production of boilers and pressure vessels. Each product must be tested according to the requirements of the specification before leaving the factory.


Parameter

Model LDR0.012-0.7 LDR0.016-0.7 LDR0.025-0.7 LDR0.035-0.7 LDR0.05-0.7 LDR0.06-0.7 LDR0.08-0.7 LDR0.1-0.7 LDR0.125-0.7
Project UNIT
Rated evaporation Kg/h 12 16 25 35 50 60 80 100 125
Rated working pressure MPa 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7
Saturated steam temperature ℃ 170 170 170 170 170 170 170 170 170
Input power KW 9 12 18 27 36 40 54 72 90
Input current A 14 18 27 41 54 60 81 108 135
Rated voltage V 3N AC 50Hz 380V
a Main steam valve diameter DN 15 15 15 15 15 15 15 25 25
b Safety valve diameter DN 15 15 15 15 15 15 15 25 25
c Inlet diamater DN 15 15 15 15 15 15 15 15 15
d Blowoff valve diameter DN 25 25 25 25 25 25 25 20 20

Overall size		 L mm 540 540 540 540 650 650 650 800 800
W mm 650 650 650 650 660 660 660 800 800
H mm 980 980 1100 1100 1380 1380 1380 1580 1580
Weight kg 90 95 105 110 130 130 135 195 195
According to customer order requirements, the company can provide customized products for specific power supply in the world.


Advantage

  • High precision pressure gauge

  • High quality heating tubes and electronic components

  • Long service life, safe and reliable

  • Stainless steel high temperature sewage valve, regular sewage

  • High explosion-proof grade and high safety

  • Customized various power supply specifications products, suitable for power supply in countries around the world

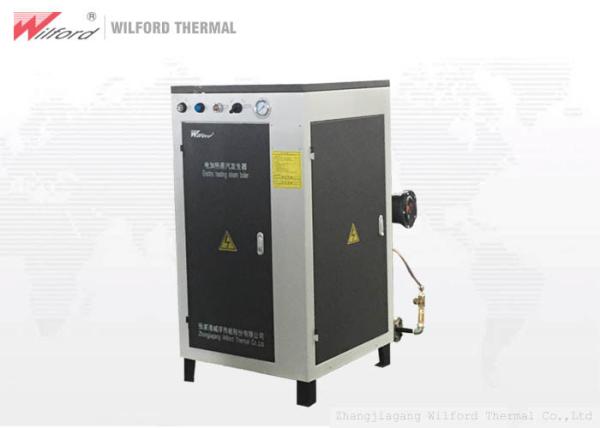

Product picture

High Efficiency Explosion Proof Compact Steam Generator For Industry Using
