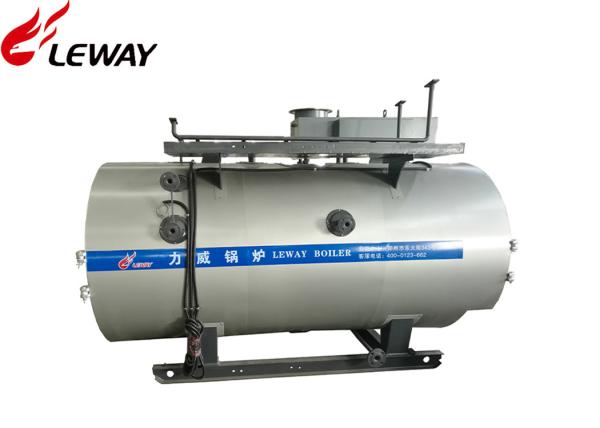

Horizontal 1.5 Ton Steam Heat Boiler , Fuel Oil Fired Boilers PLC Automatic Control
Horizontal 1.5 Ton Steam Heat Boiler , Fuel Oil Fired Boilers PLC Automatic Control
Specifications
Brand Name :
LEWAY BOILER
Model Number :
WNS
Certification :
SGS, ISO, OHSAS
Place of Origin :
Henan, China (Mainland)
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000 Ton/Tons per Year
Delivery Time :
Within 20 working days
Packaging Details :
PE films packed the oil steam boiler's main-body, spare parts packed with PE film and metal boxes
Working Pressure :
1.25MPa
Output :
Steam
Usage :
Industrial, Steam Outputing
Condition :
New
Product Name :
Oil Fired Steam Boiler
Fuel :
Oil
Style :
Horizontal
Operation :
ON-OFF Computer Control
Description

1.5 Ton Oil Fired Steam Boiler Fire Tube Steam Boiler Warranty 2 Years

Product features

1. Quality Burner: Oil fired steam boiler adopting high quality low nitrogen split-type burner; preheat the air for burner, raise the furnace's temperature and increase combustion efficiency.

2. Long life: Adopt advanced technology of preheat expansion then welded which prevents corrode tube clearance and enhanced strength.also through hot commissioning before delivery, whether running or operation rate are all very stable.

3. PLC automatic Control: WNS series oil fired steam boiler adopting advanced touch screen control cabinet and digital computer full automatic controller. The water feeding system controller can automatically regulate water feeding rate, make sure boiler's water stay on the standard water level. According to boiler's working pressure, burner controller can automatically regulate output power; the burner's output has one- two- three stages fire.

Steam Boiler Model

Item Unit Model WNS 0.5-1.0 -Y(Q) WNS 1-1.0 -Y(Q) WNS 1-1.25 -Y(Q) WNS 1.5-1.0 -Y(Q) WNS 2-1.0 -Y(Q)
Rated Capacity t 0.5 1 1 1.5 2
Steam Pressure MPa 1 1 1.25 1 1
Steam Temperature ℃ 183.2 183.2 194 183.2 183.2
Heating Surface ㎡ 25.1 35.2 36.4 53.55 73.1
Thermal Efficiency % 95%-99%
Oil Consumption Kg/h 31 67 69 101.6 132.6
Power Consumption KW 3.2 5 5 6 7
Boiler Weight t 3.5 4.8 5.3 5.9 6.8
Water Volume m³ 1.8 2.8 2.8 3.6 3.9
External Dimension L mm 2954 3000 3300 3400 3800
W mm 1394 1760 1760 2050 2000
H mm 1752 2100 2150 2250

2200

FAQ

Q1: Are you trading company or manufacturer ?

A: We are factory.

Q2: When the product can be delivered?

A: Commonly the lead time will be within 15days after receiving 30% deposit or L/C, subject to prior sales.

Q3: What's the advantage of your company?

A: We have exported our boilers and service to more than 50 countries./ we have specialize team work for you, you will get our feedback within 12 hours./ Germany and Italian advanced manufacturing technology.

Important Reminder

Before the shipment, our company assembly the boiler to make whole-set pilot run. We will shoot a long video of each detailed processes; it will help the user to do the installation easier.
