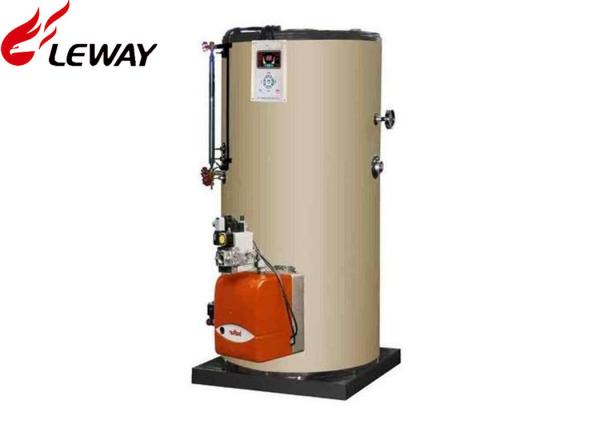

Fire Tube Structure Natural Gas Steam Boiler Quick Temperature Rising Function
Fire Tube Structure Natural Gas Steam Boiler Quick Temperature Rising Function
Specifications
Brand Name :
LEWAY BOILER
Model Number :
LHS
Certification :
SGS, ISO, OHSAS
Place of Origin :
Henan, China (Mainland)
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 Tons Per Month Steam Boiler
Delivery Time :
Average 7 Days
Packaging Details :
PE films for gas steam boiler main body, spare parts packed with PE film and metal boxes
Condition :
New
Fuel Type :
Natural Gas,City Gas,Coal Gas
Usage :
Industrial
Warranty :
24 Months
Product Name :
Natural Gas Steam Boiler
Style :
Vertical
Pressure :
Low Pressure
Structure :
Fire Tube
Description

Low Pressure Natural Gas Steam Boiler Fire Tube Vertical Steam Boiler

Product Description

Excellent Structure

 Two Fire-Passes Automatic Control Automatic Water Feeding
New Wet-Back Design Automatic Water-Level Control
Corrugated Furnace Automatic Pressure Regulation
Corrugated Fire-tube Automatic Over-Pressure Relief

Quality Burner

 European Brand (BALTUR)

Visible Operation

 Visible Working Pressure
Complete Combustion System Visible Fuel Consumption
Automatic Ignition Visible Working Pressure
Two-Stages Fire Visible Steam Temperature


High Efficient

The boiler body has the advantages of optimized design,large heated area,high thermal efficiency,quick temperature rising,and sufficient hot water supply.High-quality burner configuration;Therefore,the fuels are sufficiently burnt and the noise is low.

Packaging & Shipping

1. Packing way: nude packaging for boiler main part and wood box packaging for boiler accessories.

2. Container packing: 20 container

3. All goods will be reforced after packing into containers.

4. We have stable shipping company to cooperate. They will confirm the safty of the goods.

5. Shipping way is different according to customer's country. Mostly by sea. Some country by train.

Steam Boiler Model

Item/Umit/Model Steam Boiler
LHS0.3- LHS0.5- LHS0.75- LHS1-
0.7-Y.Q 0.7-Y.Q 1.0-Y.Q 0.7-Y.Q 0.7-Y.Q
Nominal Capacity Kg/h 300 500 500 750 1000
Nominal Steam Pressure Mpa 0.7 0.7 1 0.7 0.7
Nominal Steam Temperature ℃ 170 170 184 170 170
Feed Water Temperature ℃ 20
Thermal Efficiency % >90
Water Volume L 660 770 770 1160 1310
Steam Outlet DN 40 40 50
Inlet DN 25 32 25 40
Sewage Valve DN 40
Safety Valve DN 40 40/40
Smoke Crossing mm 219 300
Base Dimensions mm 1190*1190 1450*1450 1620*1620
Dimensions Length mm 1450 1500 1750
Width mm 1450 1500 1750
Height mm 2250 2120 2250 2470
Transport Weight T 1.4 1.78 2 2.3 2.46
Gas Pressure Kpa 1.5-3.5 4-8
Gas Pipe DN 32 40 50
Fuel Consumption
L.N.G Nm³/h 23.5 39.2 58.8 78.4
L.P.G Nm³/h 9 15 22.5 30
C.G Nm³/h 50 83.3 124.9 166.6

Quality Assurance

1. Produce according to the national standard, all pressurized components apply fine quality steel


2. Before delivery, every boiler must be subject to strict inspection and testing, including hydraulic test and X-ray inspection


3. Selecting the most suitable and famous brand automatic burner to match the boiler so as to guarantee safety and reach rated output


4. Applicable fuel: Nature gas,LPG,Coal gas


5. Providing steam for small steam capacity users
