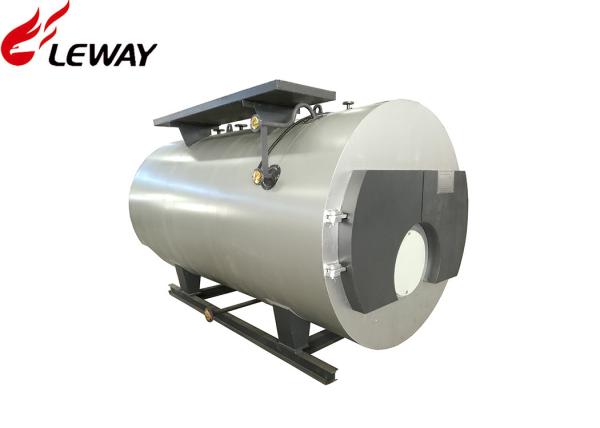

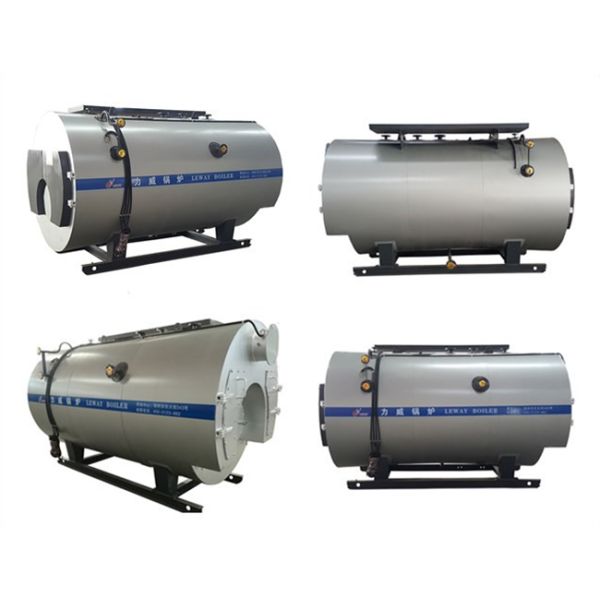

Thermal Efficiency 95% Gas Fired Hot Water Boiler 194℃ Steam Temperature
Thermal Efficiency 95% Gas Fired Hot Water Boiler 194℃ Steam Temperature
Specifications
Brand Name :
LEWAY BOILER
Model Number :
WNS
Certification :
SGS, ISO, OHSAS
Place of Origin :
Henan, China (Mainland)
MOQ :
1
Price :
Negotiable
Supply Ability :
3000 Ton/Tons per Year
Delivery Time :
Within 20 working days
Packaging Details :
PE films packed the gas steam boiler's main-body, spare parts packed with PE film and metal boxes
Steam Capacity :
10000KG
Working Pressure :
1.25MPa
Fuel Type :
Natural Gas
Thermal Efficiency :
95%
Warranty :
2Years
Product Name :
High Efficiency Gas Steam Boiler
Structure :
Fire Tube
Steam Temperature :
194℃
Description

10T 1.25MPa High Efficiency Gas Steam Boiler With Large Heating Surface

Product Features

1. PLC automatic Control

WNS series gas fired steam boiler adopting advanced touch screen control cabinet and digital computer full automatic controller. The water feeding system controller can automatically regulate water feeding rate, make sure boiler's water stay on the standard water level. According to boiler's working pressure, burner controller can automatically regulate output power; the burner's output has one- two- three stages fire.

2. Safe

Boilers are produced strictly accordance with the relevant national standards, pneumatic hydraulic pressure automatic adjustment, automatic ignition, and water shortage or overpressure flame failure protection.

Steam Boiler Model

Item Unit Model WNS 8-1.25 -Y(Q) WNS 10-1.25 -Y(Q) WNS 15-1.25 -Y(Q) WNS 20-1.25 -Y(Q)
Rated Capacity t 8 10 15 20
Feedwater Temp ℃ 20
Steam Pressure MPa 1.25
Steam Temperature ℃ 194
Heating Surface ㎡ 261.8 351.1 513.9 616.7
Thermal Efficiency % 95%-99%
Power Consumption KW 26 40 55 65
External Dimension L mm 6254 6373 7415 7830
W mm 2528 2640 3360 3500
H mm 3015 3124 3510 3998


Why Choose Our Products?

1. Economically priced,exquisitely made. Experienced & responsible QC that you can rely on;

2. Strict quality control system. From the material, welding, to finished boiler shipment, from project , establishment, drawing design, to final audit;

3. Scientific advanced rational and economical Structure Design;

4. Adequate supply capacity, punctual delivery time;

5. Each boiler system part is from first class brand all over the world or China;

6. Best after-sale service is provided;

7. We are the stable and long term supplier of many top companies in China.
