Three Passes High Efficiency Gas Steam Boiler 95% Thermal Efficiency
Three Passes High Efficiency Gas Steam Boiler 95% Thermal Efficiency
Specifications
Brand Name :
LEWAY BOILER
Model Number :
WNS
Certification :
SGS, ISO, OHSAS
Place of Origin :
Henan, China (Mainland)
MOQ :
1
Price :
Negotiable
Supply Ability :
3000 Ton/Tons per Year
Delivery Time :
Within 20 working days
Packaging Details :
PE films packed the gas steam boiler's main-body, spare parts packed with PE film and metal boxes
Condition :
New
Usage :
Industrial, Steam Outputing
Fuel :
Gas
Thermal Efficiency :
95%
Output :
Steam
Product Name :
High Efficiency Gas Steam Boiler
Structure :
Fire Tube
Description

Automatic Gas Steam Boiler with Three - Passes Wet - Back High Efficiency Design

Product features

1. High Efficiency 95%: Wet-back technology replace traditional dry-back design, effectively increase boiler’s water heating surface, and protect the smoke-box from the over-temperature damage. Three passes structure, Large diameter corrugated furnace and corrugated fire tubes to increase boiler heating surface to better absorb the heat. Additional, it also equipped with condenser(finned tube type) to full using the massive latent heat in the exhaust gas; and the high temperature condensing water also can be fed into the boiler again.

2. Convenient Installation/ Maintenance: WNS series gas fired steam boiler gets compact structure and openable front/ back smoke boxes, man-hole, hand-hole, platform ladder. Above designs are convenient for installation, maintenance.

4. Safe: Boilers are produced strictly accordance with the relevant national standards, pneumatic hydraulic pressure automatic adjustment, automatic ignition, and water shortage or overpressure flame failure protection.

Steam Boiler Model

Item Unit Model WNS 0.5-1.0 -Y(Q) WNS 1- 1.0 -Y(Q) WNS 1- 1.25 -Y(Q) WNS 1.5- 1.0 -Y(Q) WNS 2- 1.0 -Y(Q) WNS 2- 1.25 -Y(Q) WNS 3- 1.25 -Y(Q) WNS 4- 1.25 -Y(Q) WNS 6- 1.25 -Y(Q) WNS 8- 1.25 -Y(Q) WNS 10- 1.25 -Y(Q) WNS 15- 1.25 -Y(Q) WNS 20- 1.25 -Y(Q)
Rated Capacity t 0.5 1 1 1.5 2 2 3 4 6 8 10 15 20
Feedwater Temp ℃ 20
Steam Pressure MPa 1.0 1.0 1.25 1.0 1.0 1.25
Steam Temperature ℃ 183.2 183.2 194 183.2 183.2 194
Heating Surface ㎡ 25.1 35.2 36.4 53.55 73.1 68 106.7 141.5 185.8 261.8 351.1 513.9 616.7
Thermal Efficiency % 95%-99%
Fuel Consumption Diesel Kg/h 31 67 69 101.6 132.6 133.7 198 280.1 386.1 550 681 1020.8 1372.2
Gas Nm³/h 38.2 72 72 108 144 144 216 288 432 572 718 1076 1410
Power Consumption KW 3.2 5 5 6 7 7 15 15 20 26 40 55 65
Boiler Weight t 3.5 4.8 5.3 5.9 6.8 7.2 9.1 12.3 16.2 19.6 27.4 38 47
Water Volume m³ 1.8 2.8 2.8 3.6 3.9 3.9 6.3 8.5 9 13.3 13.6 23.5 32.3
External Dimension L mm 2954 3000 3300 3400 3800 3800 4300 4580 5300 6254 6373 7415 7830
W mm 1394 1760 1760 2050 2000 2000 2050 2280 2380 2528 2640 3360 3500
H mm 1752 2100 2150 2250 2200 2350 2550 2550 2645 3015 3124 3510 3998
Live Steam Pipe mm 50 50 50 65 80 80 80 100 125 150 150 200 250
Water Inlet Pipe mm 25 25 25 40 40 40 40 40 50 50 50 50 65
Relief Valve Pipe mm 40 40 40 40 40 40 50 50 65 80 80 100 100
Drain Pipe mm 40 40 40 40 40 40 40 40 40 40 40 50 50
Chimney mm 300 300 300 300 350 350 400 400 600 700 800 900 1000
Basement L mm 2240 2835 2835 2900 3100 3100 3360 3560 4100 5200 5380 6180 6800
W mm 950 1100 1100 1200 1200 1200 1450 1500 1750 2000 2100 2300 2650
Transport Size L mm 2954 3254 3254 3442 3886 4002 4260 4794 5372 6646 6882 7407 8166
W mm 1556 1770 1770 1900 1900 1900 2130 2180 2198 2600 2600 3193 3400
H mm 1727 2072 2072 2159 2172 2177 2425 2502 2635 3043 3246 3553 4027

Usage

Gas fired steam boiler be widely used in Medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing, dyeing and washing, rubber processing, paper products,wood processing, hotel, clothing and leather manufacturer etc.

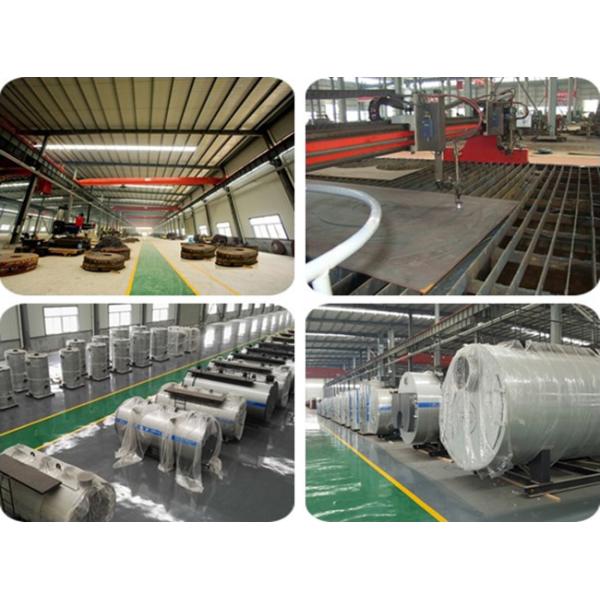

Production Workshop
