WDR Series Industrial Electric Steam Boiler Easy Operated For Food Industry
WDR Series Industrial Electric Steam Boiler Easy Operated For Food Industry
Specifications
Brand Name :
LEWAY BOILER
Model Number :
WDR
Certification :
SGS, ISO, OHSAS
Place of Origin :
Henan, China (Mainland)
MOQ :
1
Price :
Negotiable
Supply Ability :
3000 Ton/Tons per Year
Delivery Time :
Within 20 working days
Packaging Details :
PE films packed the electric boiler's main-body, spare parts packed with PE film and metal boxes
Condition :
New
Type :
Natural Circulation
Usage :
Industrial
Structure :
Fire Tube
Pressure :
Low Pressure
Fuel :
Electric
Style :
Horizontal
Output :
Steam
Description

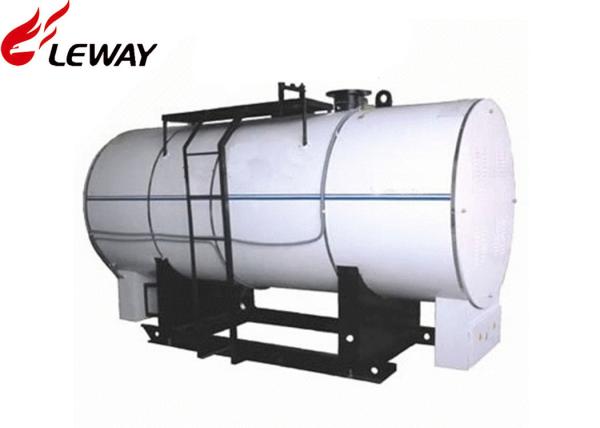

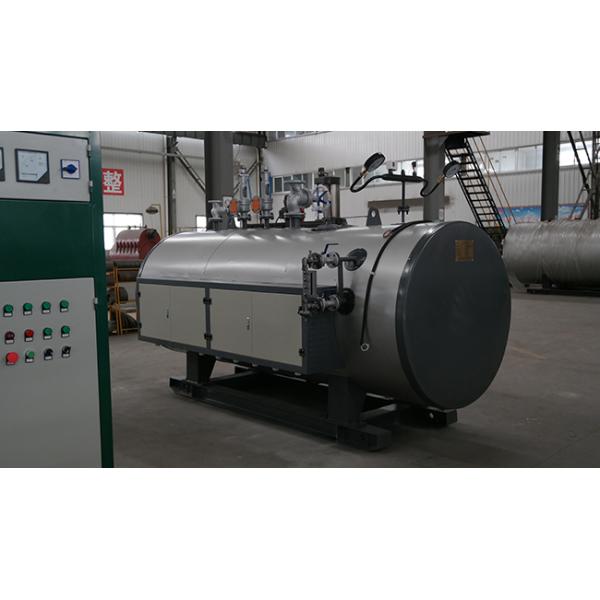

WDR Series Industrial Electric Steam Boiler For Food Industry

Product Description

Product Name

Industrial Electric Steam Boiler
Fuel Type

Electric
Thermal Efficiency

98%
Operation Control

PLC Programmable Control
After-sales Service Provided

Engineers Available To Service Machinery Overseas

Product features

1. The boiler heater adopts the direct heating tube.

2. The thermal efficiency can reach up to 99%, completely realize zero pollution.

3. The heating is uniform and stable, and the evaporation area is large.

4. The heating production is rapid.

5. Safe and reliable, easy to operate.

6. Compared other boiler,it is noiseless.

7. Environmental protection, no pollution to the environment.

8. Very easy to operate, which can save the labour cost.

Steam Boiler Model

Item /Unit/Model WDR0.5-1.0-D WDR-1.0-1.0-D WDR1.5-1.0-D WDR-2.0-1.0-D WDR3.0-1.0-D WDR4.0-1.0-D
Rated Heat Capacity Kg/h 500 1000 1500 2000 3000 4000
Working Pressure Mpa 1 1 1 1 1 1
Rated Steam Temp ℃ 184 184 184 184 184 184
Feedwater Temp ℃ 20
Thermal Efficiency % 98
Water Volume L 2000 2600 2850 3415 5850 8100
Steam Outlet DN 40 50 65 80 80 100
Water Inlet DN 25 25 40 40 40 40
Drain Valve DN 40 40 40 40 40 40
Relief Valve DN 40 40 2×40 2×40 2×50 2×50
Heating-Tube Kw/h 24 60 60 60 60 60
Heating-Tube Unit Qty 15 12 18 24 36 47
Dimensions Length mm 2720 2970 3200 3700 4180 4790
Width mm 1760 1860 1860 1800 2100 2180
Height mm 1730 1830 1830 1830 1980 2100
Base Dimensions mm 2220×900 2350×1000 2700×1000 3200×1000 3800×1100 4200×1200
Transport Weight Kg 1650 2001 2228 2525 2930 3460

Our services

We have professional engineers service team. According to the customers’ requirement and site specific condition, they can make the suitable and optimal solution about the after-sales service. Moreover, LEWAY Boiler set up sales and after sale facilitating agencies around over 30 regions, to offer the high quality services.

1. 24hours service hotline.

2. 24 months warranty after delivery.

3. Spare parts are equipped during shipment.

4. Provide instllation, commissioning and maintance service anytime.

After-sales Service

1. Engineers available to service machinery overseas.

2. We can guarantee 3 years for the boiler host,and also warranty 2 years for auxiliary boiler.

3. If there is any problem in install and use process, fell free to contact us and we will get back to you in first time to solve the problem

4. If our reply is still no solution to boiler problems, we will send engineers on-site service.
