WDR Horizontal Industrial Electric Steam Boiler Low Pressure With Large Steam Space
WDR Horizontal Industrial Electric Steam Boiler Low Pressure With Large Steam Space
Specifications
Brand Name :
LEWAY BOILER
Model Number :
WDR
Certification :
SGS, ISO, OHSAS
Place of Origin :
Henan, China (Mainland)
MOQ :
1
Price :
Negotiable
Supply Ability :
3000 Ton/Tons per Year
Delivery Time :
Within 20 working days
Packaging Details :
PE films packed the electric boiler's main-body, spare parts packed with PE film and metal boxes
Condition :
New
Type :
Natural Circulation
Usage :
Industrial
Structure :
Fire Tube
Pressure :
Low Pressure
Style :
Horizontal
Fuel :
Electric
Output :
Steam
Description

WDR Industrial Horizontal Automatic Electric Steam Boiler for Textile

Application

Medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing, dyeing and washing, rubber processing, paper products,wood processing, hotel, clothing and leather manufacturer etc.

Features

1. All the electrical elements have the CE and CCC certification to make sure the boiler safety and long live.

2. Each group electrical heating elements focus on type of flange connection to make the structure simple, safe and easy to repair.

3. With large steam space and good quality steam.

4. Electrical control cabinet separated from boiler body can make heat emission easily and many sets of parallel.

5. PLC control system control and display make the operation simple and safe. People can control water temperature .Screen can show equipment operation parameters and produce alarm in the fault.

Steam Boiler Model

Item /Unit/Model WDR0.5-1.0-D WDR-1.0-1.0-D WDR1.5-1.0-D WDR-2.0-1.0-D WDR3.0-1.0-D WDR4.0-1.0-D
Rated Heat Capacity Kg/h 500 1000 1500 2000 3000 4000
Working Pressure Mpa 1 1 1 1 1 1
Rated Steam Temp ℃ 184 184 184 184 184 184
Feedwater Temp ℃ 20
Thermal Efficiency % 98
Water Volume L 2000 2600 2850 3415 5850 8100
Steam Outlet DN 40 50 65 80 80 100
Water Inlet DN 25 25 40 40 40 40
Drain Valve DN 40 40 40 40 40 40
Relief Valve DN 40 40 2×40 2×40 2×50 2×50
Heating-Tube Kw/h 24 60 60 60 60 60
Heating-Tube Unit Qty 15 12 18 24 36 47
Dimensions Length mm 2720 2970 3200 3700 4180 4790
Width mm 1760 1860 1860 1800 2100 2180
Height mm 1730 1830 1830 1830 1980 2100
Base Dimensions mm 2220×900 2350×1000 2700×1000 3200×1000 3800×1100 4200×1200
Transport Weight Kg 1650 2001 2228 2525 2930 3460

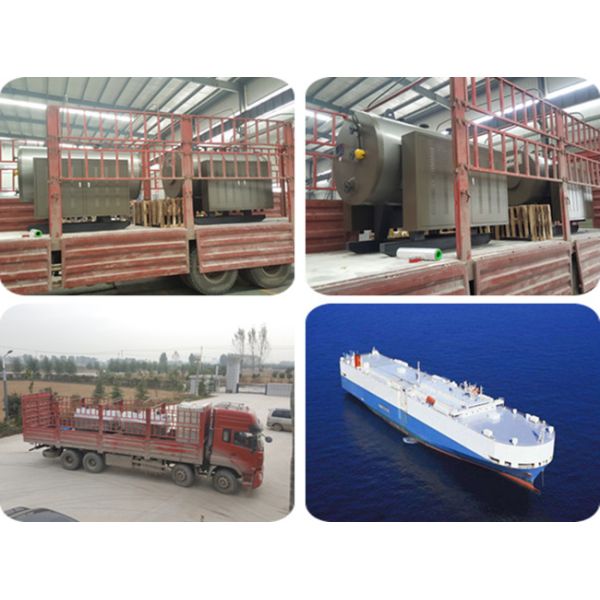

Packaging & Shipping

1. Packing way: nude packaging for boiler main part and wood box packaging for boiler accessories.

2. Container packing: 20 container

3. All goods will be reforced after packing into containers.

4. We have stable shipping company to cooperate. They will confirm the safty of the goods.

5. Shipping way is different according to customer's country. Mostly by sea. Some country by train.

After-sales Service

1. Engineers available to service machinery overseas.

2. We can guarantee 3 years for the boiler host,and also warranty 2 years for auxiliary boiler.

3. If there is any problem in install and use process, fell free to contact us and we will get back to you in first time to solve the problem

4. If our reply is still no solution to boiler problems, we will send engineers on-site service.
