PLC Control Industrial Steam Boiler , Oil Fired Residential Boilers Easy Access
PLC Control Industrial Steam Boiler , Oil Fired Residential Boilers Easy Access
Specifications
Brand Name :
LEWAY BOILER
Model Number :
LHS
Certification :
SGS, ISO, OHSAS
Place of Origin :
Henan, China (Mainland)
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300 Ton/Tons per Month steam boiler
Delivery Time :
Average 7 Days
Packaging Details :
PE films for oil steam boiler main body, spare parts packed with PE film and metal boxes
Condition :
New
Type :
Natural Circulation
Style :
Vertical
Structure :
Fire Tube
Pressure :
Low Pressure
Fuel :
Diesel, Heavy Oil, Crude Oil
Usage :
Industrial
After-sales Service Provided :
Engineers available to service machinery overseas
Description

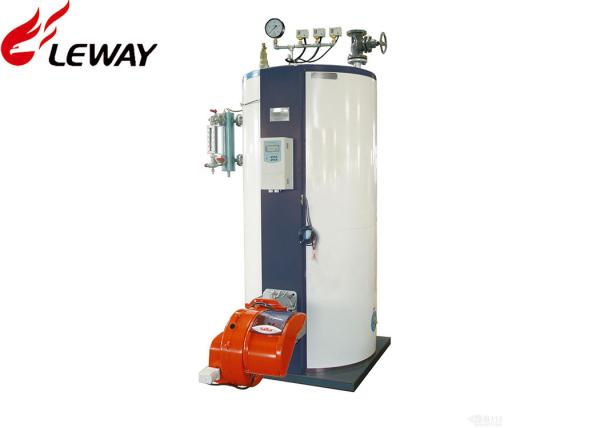

Vertical Fire Tube 0.3 - 1Ton 300 - 1000Kg Oil Fired Steam Boiler

Product Description

Product Name

Vertical Steam Boiler
Fuel Type
Diesel, Heavy Oil, Crude Oil
Thermal Efficiency

92%
Operation Control

PLC Programmable Control
After-sales Service Provided

Engineers Available To Service Machinery Overseas

Standard Features

1. Durability

2. Good Quality. Each unit is tested and inspected and registered with the National Board of Boiler and Pressure Vessel Inspectors.

3. High Efficiency. LHS vertical boilers is designed for optimum fuel efficiency.

4. Low Maintenance

5. Easy Access

6. Compact Structure

High Efficient

The boiler body has the advantages of optimized design,large heated area,high thermal efficiency,quick temperature rising,and sufficient hot water supply.High-quality burner configuration;Therefore,the fuels are sufficiently burnt and the noise is low.

Steam Boiler Model

Item Umit Model Steam Boiler
LHS0.3- LHS0.5- LHS0.75- LHS1-
0.7-Y.Q 0.7-Y.Q 1.0-Y.Q 0.7-Y.Q 0.7-Y.Q
Nominal Capacity Kg/h 300 500 500 750 1000
Nominal Steam Pressure Mpa 0.7 0.7 1 0.7 0.7
Nominal Steam Temperature ℃ 170 170 184 170 170
Feed Water Temperature ℃ 20
Thermal Efficiency % >90
Water Volume L 660 770 770 1160 1310
Steam Outlet DN 40 40 50
Inlet DN 25 32 25 40
Sewage Valve DN 40
Safety Valve DN 40 40/40
Smoke Crossing mm 219 300
Base Dimensions mm 1190*1190 1450*1450 1620*1620
Dimensions Length mm 1450 1500 1750
Width mm 1450 1500 1750
Height mm 2250 2120 2250 2470
Transport Weight T 1.4 1.78 2 2.3 2.46
Gas Pressure Kpa 1.5-3.5 4-8
Gas Pipe DN 32 40 50
Fuel Consumption L.N.G Nm³/h 23.5 39.2 58.8 78.4
L.P.G Nm³/h 9 15 22.5 30
C.G Nm³/h 50 83.3 124.9 166.6

Our Services

Warranty:

Two-year warranty with full life service.

Boiler spare parts service:

A full range of original spare parts are available for all LEWAY boilers

Service before sale:

Provide relative technical data for customer choosing equipments,layout drawing,foundation,general grawing.

Service after sale:

Help customer for installation and training. Engineer abroad service is available.

Maintenance and repair for one year.
