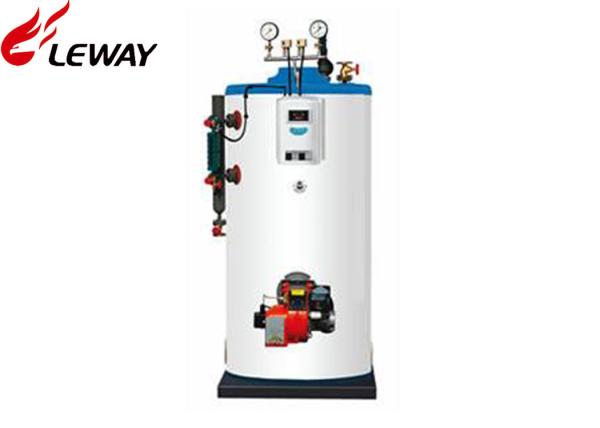

ON - OFF Control Fire Tube Steam Boiler , Oil Fired Combination Boiler Large Heated Area
ON - OFF Control Fire Tube Steam Boiler , Oil Fired Combination Boiler Large Heated Area
Specifications
Brand Name :
LEWAY BOILER
Model Number :
LHS
Certification :
SGS, ISO, OHSAS
Place of Origin :
Henan, China (Mainland)
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300 Ton/Tons per Month steam boiler
Delivery Time :
Average 7 Days
Packaging Details :
PE films for oil steam boiler main body, spare parts packed with PE film and metal boxes
Steam Capacity :
100-1000KG/H
Working Pressure :
0.4-0.7Mpa
Steam Temperature :
152-184℃
Thermal Efficiency :
92%
Operation :
ON-OFF Control
Fuel :
Diesel, Heavy Oil, Crude Oil
Pressure :
Low Pressure
Usage :
Industrial
Description

Fire Tube Industrial Oil Fired Vertical Steam Boiler for Textile Industry

Product Description

Excellent Structure

 Two Fire-Passes Automatic Control Automatic Water Feeding
New Wet-Back Design Automatic Water-Level Control
Corrugated Furnace Automatic Pressure Regulation
Corrugated Fire-tube Automatic Over-Pressure Relief

Quality Burner

 European Brand (BALTUR) Visible Operation Visible Working Pressure
Complete Combustion System Visible Fuel Consumption
Automatic Ignition Visible Working Pressure
Two-Stages Fire Visible Steam Temperature

Quality Assurance

1. Produce according to the national standard, all pressurized components apply fine quality steel


2. Before delivery, every boiler must be subject to strict inspection and testing, including hydraulic test and X-ray inspection


3. Selecting the most suitable and famous brand automatic burner to match the boiler so as to guarantee safety and reach rated output


4. Applicable fuel: Nature gas,LPG,Coal gas


5. Providing steam for small steam capacity users

High Efficient

The boiler body has the advantages of optimized design,large heated area,high thermal efficiency,quick temperature rising,and sufficient hot water supply.High-quality burner configuration;Therefore,the fuels are sufficiently burnt and the noise is low.

Steam Boiler Model

Item Umit Model Steam Boiler
LHS0.3- LHS0.5- LHS0.75- LHS1-
0.7-Y.Q 0.7-Y.Q 1.0-Y.Q 0.7-Y.Q 0.7-Y.Q
Nominal Capacity Kg/h 300 500 500 750 1000
Nominal Steam Pressure Mpa 0.7 0.7 1 0.7 0.7
Nominal Steam Temperature ℃ 170 170 184 170 170
Feed Water Temperature ℃ 20
Thermal Efficiency % >90
Water Volume L 660 770 770 1160 1310
Steam Outlet DN 40 40 50
Inlet DN 25 32 25 40
Sewage Valve DN 40
Safety Valve DN 40 40/40
Smoke Crossing mm 219 300
Base Dimensions mm 1190*1190 1450*1450 1620*1620
Dimensions Length mm 1450 1500 1750
Width mm 1450 1500 1750
Height mm 2250 2120 2250 2470
Transport Weight T 1.4 1.78 2 2.3 2.46
Gas Pressure Kpa 1.5-3.5 4-8
Gas Pipe DN 32 40 50
Fuel Consumption L.N.G Nm³/h 23.5 39.2 58.8 78.4
L.P.G Nm³/h 9 15 22.5 30
C.G Nm³/h 50 83.3 124.9 166.6

Why choose our products?

We are a professional boilers factory.

1. Economically priced,exquisitely made. Experienced & responsible QC that you can rely on;

2. Strict quality control system. From the material, welding, to finished boiler shipment, from project , establishment, drawing design, to final audit;

3. Scientific advanced rational and economical structure design;

4. Adequate supply capacity, punctual delivery time;

5. Each boiler system part is from first class brand all over the world or China;

6. Best after-sale service is provided;

7. We are the stable and long term supplier of many top companies in China.

Application areas

1, washing ironing industry: dry cleaning machine, dryer, washing machine, dehydration machine, ironing machine, iron and other equipment supporting the use of

2, bio-chemical industry: fermentation tank, reactor, sandwich pan, mixer, emulsifier and other equipment supporting the use of

3, the packaging machinery industry: labeling machine, supporting the use of standard machine

4, food machinery industry: tofu machine, steamer, sterilization tank, packaging machine, paint equipment,

sealing machine and other equipment supporting the use of

5, other industries: (oil, automobile) steam cleaning industry, (hotels, dormitories, schools) steam or hot water supply, (bridges, railways)etc.
