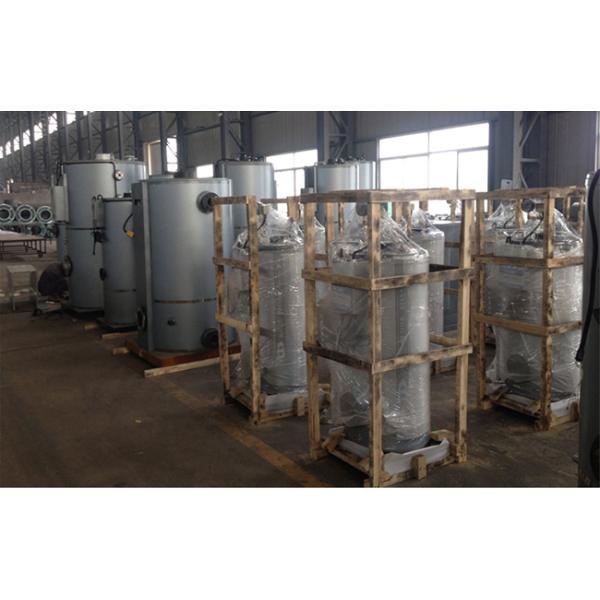

Oil Fired Vertical Steam Boiler 0.7Mpa Working Pressure 219 / 300mm Smoke Crossing
Oil Fired Vertical Steam Boiler 0.7Mpa Working Pressure 219 / 300mm Smoke Crossing
Specifications
Brand Name :
LEWAY BOILER
Model Number :
LHS
Certification :
SGS, ISO, OHSAS
Place of Origin :
Henan, China (Mainland)
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300 Ton/Tons per Month steam boiler
Delivery Time :
Average 7 Days
Packaging Details :
PE films for oil steam boiler main body, spare parts packed with PE film and metal boxes
Product Name :
Vertical Steam Boiler
Steam Capacity :
300KG/H
Working Pressure :
0.7Mpa
Test Pressure :
1.0Mpa
Steam Temperature :
170℃
Pressure :
Low Pressure
Operation :
ON-OFF Control
Warranty :
24 Months
Description

Full Automatic LHS Series Vertical Oil Fired 300kg/h Steam Boiler

Product Description

Excellent Structure

 Two Fire-Passes Automatic Control Automatic Water Feeding
New Wet-Back Design Automatic Water-Level Control
Corrugated Furnace Automatic Pressure Regulation
Corrugated Fire-tube Automatic Over-Pressure Relief

Quality Burner

 European Brand (BALTUR) Visible Operation Visible Working Pressure
Complete Combustion System Visible Fuel Consumption
Automatic Ignition Visible Working Pressure
Two-Stages Fire Visible Steam Temperature

Our Services

Warranty:

Two-year warranty with full life service.

Boiler spare parts service:

A full range of original spare parts are available for all LEWAY boilers

Service before sale:

Provide relative technical data for customer choosing equipments,layout drawing,foundation,general grawing.

Service after sale:

Help customer for installation and training. Engineer abroad service is available.

Maintenance and repair for one year.

Steam Boiler Model

Item Umit Model Steam Boiler
LHS0.3- LHS0.5- LHS0.75- LHS1-
0.7-Y.Q 0.7-Y.Q 1.0-Y.Q 0.7-Y.Q 0.7-Y.Q
Nominal Capacity Kg/h 300 500 500 750 1000
Nominal Steam Pressure Mpa 0.7 0.7 1 0.7 0.7
Nominal Steam Temperature ℃ 170 170 184 170 170
Feed Water Temperature ℃ 20
Thermal Efficiency % >90
Water Volume L 660 770 770 1160 1310
Steam Outlet DN 40 40 50
Inlet DN 25 32 25 40
Sewage Valve DN 40
Safety Valve DN 40 40/40
Smoke Crossing mm 219 300
Base Dimensions mm 1190*1190 1450*1450 1620*1620
Dimensions Length mm 1450 1500 1750
Width mm 1450 1500 1750
Height mm 2250 2120 2250 2470
Transport Weight T 1.4 1.78 2 2.3 2.46
Gas Pressure Kpa 1.5-3.5 4-8
Gas Pipe DN 32 40 50
Fuel Consumption L.N.G Nm³/h 23.5 39.2 58.8 78.4
L.P.G Nm³/h 9 15 22.5 30
C.G Nm³/h 50 83.3 124.9 166.6

Why choose our products?

We are a professional boilers factory.

1. Economically priced,exquisitely made. Experienced & responsible QC that you can rely on;

2. Strict quality control system. From the material, welding, to finished boiler shipment, from project , establishment, drawing design, to final audit;

3. Scientific advanced rational and economical structure design;

4. Adequate supply capacity, punctual delivery time;

5. Each boiler system part is from first class brand all over the world or China;

6. Best after-sale service is provided;

7. We are the stable and long term supplier of many top companies in China.
