Heavy Oil Steam Heat Boiler , Oil Fired Central Heating Boilers Two Fire Passes
Heavy Oil Steam Heat Boiler , Oil Fired Central Heating Boilers Two Fire Passes
Specifications
Brand Name :
LEWAY BOILER
Model Number :
LHS
Certification :
SGS, ISO, OHSAS
Place of Origin :
Henan, China (Mainland)
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300 Ton/Tons per Month steam boiler
Delivery Time :
Average 7 Days
Packaging Details :
PE films for oil steam boiler main body, spare parts packed with PE film and metal boxes
Product Name :
Vertical Steam Boiler
Steam Capacity :
100-1000KG/H
Working Pressure :
0.4-0.7Mpa
Test Pressure :
1.0Mpa
Steam Temperature :
152-184℃
Fuel :
Diesel, Heavy Oil, Crude Oil
Usage :
Industrial
After-sales Service Provided :
Engineers available to service machinery overseas
Description

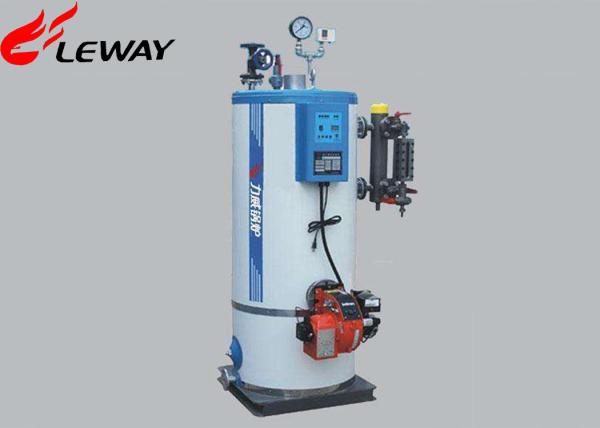

Small Vertical Diesel Heavy Oil Crude Oil Fired Steam Boiler

Product Description

Excellent Structure

 Two Fire-Passes Automatic Control Automatic Water Feeding
New Wet-Back Design Automatic Water-Level Control
Corrugated Furnace Automatic Pressure Regulation
Corrugated Fire-tube Automatic Over-Pressure Relief

Quality Burner

 European Brand (BALTUR) Visible Operation Visible Working Pressure
Complete Combustion System Visible Fuel Consumption
Automatic Ignition Visible Working Pressure
Two-Stages Fire Visible Steam Temperature

Quality Assurance

1. Produce according to the national standard, all pressurized components apply fine quality steel


2. Before delivery, every boiler must be subject to strict inspection and testing, including hydraulic test and X-ray inspection


3. Selecting the most suitable and famous brand automatic burner to match the boiler so as to guarantee safety and reach rated output


4. Applicable fuel: Nature gas,LPG,Coal gas


5. Providing steam for small steam capacity users

Steam Boiler Model

Item Umit Model Steam Boiler
LHS0.3- LHS0.5- LHS0.75- LHS1-
0.7-Y.Q 0.7-Y.Q 1.0-Y.Q 0.7-Y.Q 0.7-Y.Q
Nominal Capacity Kg/h 300 500 500 750 1000
Nominal Steam Pressure Mpa 0.7 0.7 1 0.7 0.7
Nominal Steam Temperature ℃ 170 170 184 170 170
Feed Water Temperature ℃ 20
Thermal Efficiency % >90
Water Volume L 660 770 770 1160 1310
Steam Outlet DN 40 40 50
Inlet DN 25 32 25 40
Sewage Valve DN 40
Safety Valve DN 40 40/40
Smoke Crossing mm 219 300
Base Dimensions mm 1190*1190 1450*1450 1620*1620
Dimensions Length mm 1450 1500 1750
Width mm 1450 1500 1750
Height mm 2250 2120 2250 2470
Transport Weight T 1.4 1.78 2 2.3 2.46
Gas Pressure Kpa 1.5-3.5 4-8
Gas Pipe DN 32 40 50
Fuel Consumption L.N.G Nm³/h 23.5 39.2 58.8 78.4
L.P.G Nm³/h 9 15 22.5 30
C.G Nm³/h 50 83.3 124.9 166.6

Application areas

1, washing ironing industry: dry cleaning machine, dryer, washing machine, dehydration machine, ironing machine, iron and other equipment supporting the use of

2, bio-chemical industry: fermentation tank, reactor, sandwich pan, mixer, emulsifier and other equipment supporting the use of

3, the packaging machinery industry: labeling machine, supporting the use of standard machine

4, food machinery industry: tofu machine, steamer, sterilization tank, packaging machine, paint equipment,

sealing machine and other equipment supporting the use of

5, other industries: (oil, automobile) steam cleaning industry, (hotels, dormitories, schools) steam or hot water supply, (bridges, railways)etc.

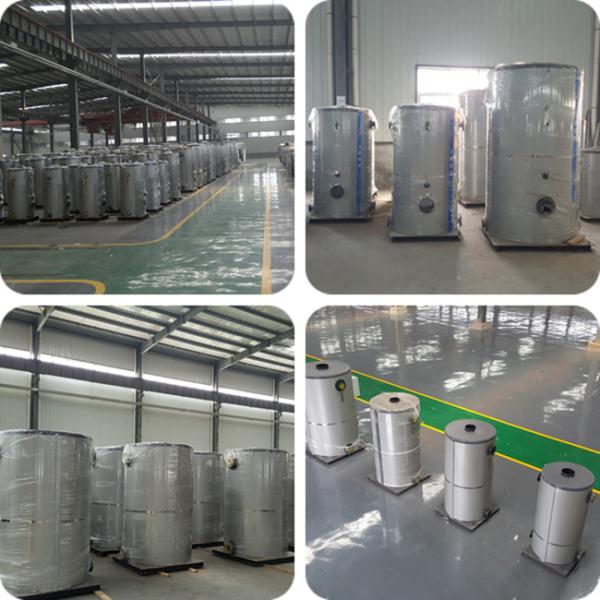

Packaging & Shipping

1. Packing way: nude packaging for boiler main part and wood box packaging for boiler accessories.

2. Container packing: 20 container

3. All goods will be reforced after packing into containers.

4. We have stable shipping company to cooperate. They will confirm the safty of the goods.

5. Shipping way is different according to customer's country. Mostly by sea. Some country by train.
