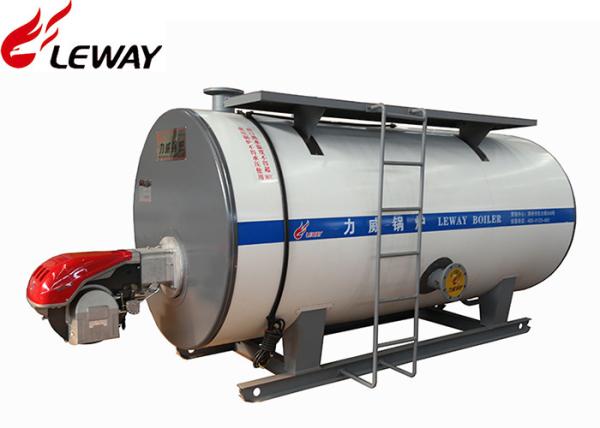

Non Pressure Oil Hot Water Boiler 0.35MW - 7MW Horizontal
Non Pressure Oil Hot Water Boiler 0.35MW - 7MW Horizontal
Non Pressure Oil Hot Water Boiler 0.35MW - 7MW Horizontal
Non Pressure Oil Hot Water Boiler 0.35MW - 7MW Horizontal
Specifications
Brand Name :
LEWAY BOILER
Model Number :
CWNS
Certification :
SGS, ISO, OHSAS
Place of Origin :
Henan, China (Mainland)
MOQ :
1
Price :
Negotiable
Supply Ability :
300 Ton/Tons per Month hot water boiler
Delivery Time :
Average 15 Days
Packaging Details :
PE films for oil hot water boiler main body; plywood boxes for all auxiliaries
Payment Terms :
L/C, T/T
Output :
Hot Water
Inlet Outlet Water Temp :
85/65℃
Fuel Type :
Diesel,Heavy Oil,Crude Oil
Thermal Efficiency :
95%
Warranty :
24 Months
Product Name :
Oil Hot Water Boiler
Material :
Special Boiler Steel Plate
Pressure :
Atmospheric Pressure
Structure :
Fire Tube
Rated Power :
0.35MW-7MW
Description

Non - Pressure 0.35 MW - 7 MW Horizontal Oil Hot Water Boiler For Heating

Product Description
Product Name

Oil Hot Water Boiler
Fuel Type
Diesel,Heavy Oil,Crude Oil
Thermal Efficiency

95%
Operation Control

PLC Programmable Control
After-sales Service Provided

Engineers Available To Service Machinery Overseas

Energy Efficient

Three fire-passes, corrugated fire-Tubes/ corrugated furnace effectively increase boiler’s heating surface. Wet-Back replace traditional Dry-Back, protect the smoke-boxes from high-temperature damage. Finned tube-type condenser to reuse the latent heat in exhaust gas.

Quality Assurance

1.Strength calculation test report of applied materials
2.Whole set of pure water processor line featured with RO anti-saturation and advanced testing devices
3.Hydraulic test report: ensure the standard working pressure and safety
4.Third-party inspection report-Jiaozuo Special Equipment Inspection & Technical Research

Hot Water Boiler Model

Item / Unit / Model

CWNS

0.35- 85/65-Y(Q)

CWNS

0.48- 85/65-Y(Q)

CWNS

0.58-85/65-Y(Q)

CWNS

0.7- 85/65-Y(Q)

 CWNS 1.05-85/65- Y(Q) CWNS 1.4-85/65-Y(Q) CWNS 2.1-85/65-Y(Q) CWNS 2.8-85/65-Y(Q) CWNS 4.2-85/65-Y(Q) CWNS 5.6-85/65-Y(Q) CWNS 7.0-85/65-Y(Q)

Rated Heat Capacity

 MW 0.35 0.48 0.58 0.7 1.05 1.4 2.1 2.8 4.2 5.6 7.0
Working Pressure MPa Non Pressure

Inlet/Outlet Water

Temperature

 ℃ 85/65 85/65 85/65 85/65 85/65 85/65 85/65 85/65 85/65 85/65 85/65

Heating Surface

 ㎡ 19.5 21 31 34.2 50.2 65.76 93.61 113.44 187.1 260.36 273.7

Thermal Efficiency

 % 91-98%
Fuel Consumption Natural Gas Nm³/h 36/38 49/52 59/63 71/76.7 104/112 142/153.4 208/226.1 280/304.8 414/440.3 547/602.5 680/730
Diesel Kg/h 32.5 44.5 53.8 64.9 97.4 139.9 194.8 259.8 376.5 497.6 623.7

Electric

Consumption

 KW/h 1.1 2.3 2.3 2.3 4.0 4.7 7.5 8.2 11 15 22
Transport Weight Kg 1550 1650 1950 2100 2900 3500 4950 5190 10600 16000 19104
Water Volume L 700 850 1100 1500 1848 2700 3600 5000 9000 13300 13300
Dimension Length mm 2260 2280 2395 2695 3205 3685 3915 4415 5300 6420 6822
Width mm 1120 1120 1475 1475 1475 1665 1750 1900 2380 2528 2550
Height mm 1550 1590 1750 1750 1750 2015 2160 2300 2742 3015 3064

Water Outlet Pipe

 mm 80 80 100 100 125 150 150 200 200 250 250
Water Inlet Pipe mm 80 80 100 100 125 150 150 200 200 250 250
Atmosphere Open Pipe mm 80 80 100 100 125 150 150 200 200 250 250
Drain Pipe mm 40 40 40 40 40 40 40 40 40 40 40
Chimney mm 250 250 250 250 250 300 350 400 600 700 800
Basement Dimensions Length mm 1950 1980 2050 2120 2620 3100 3100 3560 4100 5200 5380
Width mm 800 810 1000 1000 1000 1100 1200 1300 1750 2000 2100

Complate Boiler Room System

Non Pressure Oil Hot Water Boiler 0.35MW - 7MW Horizontal

High Quality

The manufacture strictly in accordance with CHINA GB/T Standards. Boiler has automatic control, automatic water-level regulate; most important, also realizes autoamtic ignition, water-shortage protection, over-heat protection, flameout protection.

Non Pressure Oil Hot Water Boiler 0.35MW - 7MW Horizontal
