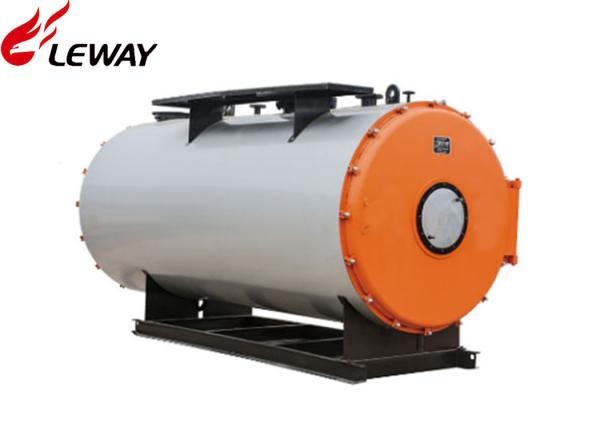

High Efficiency Oil Hot Water Furnace Large Water Volume For Weave Factory
High Efficiency Oil Hot Water Furnace Large Water Volume For Weave Factory
Specifications
Brand Name :
LEWAY BOILER
Model Number :
CWNS
Certification :
SGS, ISO, OHSAS
Place of Origin :
Henan, China (Mainland)
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300 Ton/Tons per Month hot water boiler
Delivery Time :
Average 15 Days
Packaging Details :
PE films for oil hot water boiler main body; plywood boxes for all auxiliaries
Usage :
Industrial
Thermal Efficiency :
95%
Pressure :
Atmospheric Pressure
Fuel :
Oil - Fired
Output :
Hot Water
Warranty :
24 Months
Product Name :
Oil Hot Water Boiler
After-sales Service Provided :
Engineers available to service machinery overseas
Description

Industrial High Efficiency Atmospheric Pressure Oil Hot Water Boiler for Heating

Product Description
Product Name

Natural Gas Hot Water Boiler
Fuel Type

Natural Gas, LNG, LPG, CNG
Thermal Efficiency

95%
Operation Control

PLC Programmable Control
After-sales Service Provided

Engineers Available To Service Machinery Overseas

Our Service

1. We will reply your inquiry in 24 hours.

2. Experienced staffs will answer all your questions in fluent and professional English.

3. Customized design is available Two-year warranty and full-life service for all of our boiler

A full range of original spare parts are available for all LEWAY boilers

Usage

The hot water boiler can be used for producing desired hot water for product manufacturing process in the weave factory, printing and dying, paper making and rubber, plastic chemical, pharmaceutical, etc. And for heating room, bath, air conditional and daily life water in the factories, departments, hotels, schools, restaurants, services industries etc.

Hot Water Boiler Model

Item / Unit / Model

CWNS

0.35- 85/65-Y(Q)

CWNS

0.48- 85/65-Y(Q)

CWNS

0.58-85/65-Y(Q)

CWNS

0.7- 85/65-Y(Q)

 CWNS 1.05-85/65- Y(Q) CWNS 1.4-85/65-Y(Q) CWNS 2.1-85/65-Y(Q) CWNS 2.8-85/65-Y(Q) CWNS 4.2-85/65-Y(Q) CWNS 5.6-85/65-Y(Q) CWNS 7.0-85/65-Y(Q)

Rated Heat Capacity

 MW 0.35 0.48 0.58 0.7 1.05 1.4 2.1 2.8 4.2 5.6 7.0
Working Pressure MPa Non Pressure

Inlet/Outlet Water

Temperature

 ℃ 85/65 85/65 85/65 85/65 85/65 85/65 85/65 85/65 85/65 85/65 85/65

Heating Surface

 ㎡ 19.5 21 31 34.2 50.2 65.76 93.61 113.44 187.1 260.36 273.7

Thermal Efficiency

 % 91-98%
Fuel Consumption Natural Gas Nm³/h 36/38 49/52 59/63 71/76.7 104/112 142/153.4 208/226.1 280/304.8 414/440.3 547/602.5 680/730
Diesel Kg/h 32.5 44.5 53.8 64.9 97.4 139.9 194.8 259.8 376.5 497.6 623.7

Electric

Consumption

 KW/h 1.1 2.3 2.3 2.3 4.0 4.7 7.5 8.2 11 15 22
Transport Weight Kg 1550 1650 1950 2100 2900 3500 4950 5190 10600 16000 19104
Water Volume L 700 850 1100 1500 1848 2700 3600 5000 9000 13300 13300
Dimension Length mm 2260 2280 2395 2695 3205 3685 3915 4415 5300 6420 6822
Width mm 1120 1120 1475 1475 1475 1665 1750 1900 2380 2528 2550
Height mm 1550 1590 1750 1750 1750 2015 2160 2300 2742 3015 3064

Water Outlet Pipe

 mm 80 80 100 100 125 150 150 200 200 250 250
Water Inlet Pipe mm 80 80 100 100 125 150 150 200 200 250 250
Atmosphere Open Pipe mm 80 80 100 100 125 150 150 200 200 250 250
Drain Pipe mm 40 40 40 40 40 40 40 40 40 40 40
Chimney mm 250 250 250 250 250 300 350 400 600 700 800
Basement Dimensions Length mm 1950 1980 2050 2120 2620 3100 3100 3560 4100 5200 5380
Width mm 800 810 1000 1000 1000 1100 1200 1300 1750 2000 2100

After-sales Service

Experienced technicians guidance is available on the phone, and on the internet.One or more engineers will be dispatched to the installation site to help install the customers’ boilers.We also provide necessary training about boiler operation and daily maintenance to local workers.

Packing & Delivery

According to customer's requirements, our company can provide FOB inland transporation, CFR/ CIF ocean delivery.
For ensure the customer get the quality products smoothly and safely, our company has professional transporation team for handling the cargo loading, safe transporation, cargo discharge.
