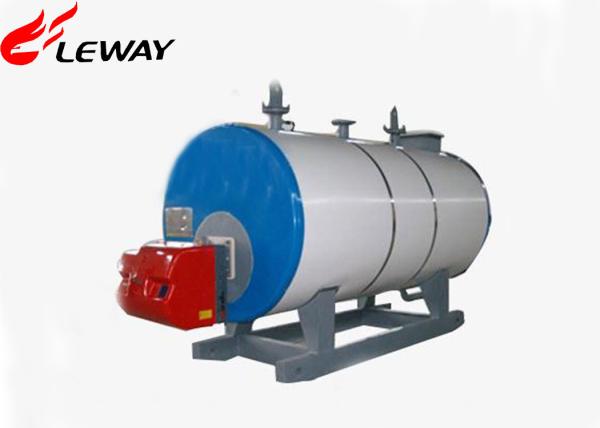

Fuel Natural Gas Hot Water Boiler Good Insulation Effect In Factories
Fuel Natural Gas Hot Water Boiler Good Insulation Effect In Factories
Specifications
Brand Name :
LEWAY BOILER
Model Number :
CWNS
Certification :
SGS, ISO, OHSAS
Place of Origin :
Henan, China (Mainland)
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300 Ton/Tons per Month hot water boiler
Delivery Time :
Average 15 Days
Packaging Details :
PE films for hot water boiler main body; plywood boxes for all auxiliaries
Fuel :
Natural Gas, LNG, LPG, CNG
Output :
Hot Water
Product Name :
Natural Gas Hot Water Boiler
Working Pressure :
Non-Pressure
Rated Power :
0.35MW-7MW
Thermal Efficiency :
95%
Operation :
PLC Control
After-sales Service Provided :
Engineers available to service machinery overseas
Description

Fuel Natural Gas Output Hot Water Boiler for Daily Life Water in The Factories

Product Description

1. Natural Gas Diesel Oil Fired Hot Water Heater Boiler to light oil and natural gas for the design of fuel,

can also be burned with city gas or liquefied petroleum gas, fuel adaptability, energy efficient, low

operating costs.

2. Natural Gas Diesel Oil Fired Hot Water Heater Boiler body with full butt weld wet back structure, low

layout full-wave furnace gallbladder, boiler structure flexibility and thermal expansion of good, safe and

reliable.

3. 80mm thick aluminum silicate fiber insulation layer, light weight, good insulation effect, heat loss

is small.

4. Natural Gas Diesel Oil Fired Hot Water Heater Boiler body resistance is small, smooth operation, save

power consumption, low noise.

5. Express the overall structure, small size, compact structure, easy installation.

6. Natural Gas Diesel Oil Fired Hot Water Heater Boiler emissions without smoke,SO2 and NOx emissions

concentration is very low, significant environmental benefits.

Quality Assurance

1. Strength calculation test report of applied materials

2. Whole set of pure water processor line featured with RO anti-saturation and advanced testing devices

3. Hydraulic test report: ensure the standard working pressure and safety

4. Third-party inspection report-Jiaozuo Special Equipment Inspection & Technical Research

Hot Water Boiler Model

Item / Unit / Model

CWNS

0.35- 85/65-Y(Q)

CWNS

0.48- 85/65-Y(Q)

CWNS

0.58-85/65-Y(Q)

CWNS

0.7- 85/65-Y(Q)

 CWNS 1.05-85/65- Y(Q) CWNS 1.4-85/65-Y(Q) CWNS 2.1-85/65-Y(Q) CWNS 2.8-85/65-Y(Q) CWNS 4.2-85/65-Y(Q) CWNS 5.6-85/65-Y(Q) CWNS 7.0-85/65-Y(Q)

Rated Heat Capacity

 MW 0.35 0.48 0.58 0.7 1.05 1.4 2.1 2.8 4.2 5.6 7.0
Working Pressure MPa Non Pressure

Inlet/Outlet Water

Temperature

 ℃ 85/65 85/65 85/65 85/65 85/65 85/65 85/65 85/65 85/65 85/65 85/65

Heating Surface

 ㎡ 19.5 21 31 34.2 50.2 65.76 93.61 113.44 187.1 260.36 273.7

Thermal Efficiency

 % 91-98%
Fuel Consumption Natural Gas Nm³/h 36/38 49/52 59/63 71/76.7 104/112 142/153.4 208/226.1 280/304.8 414/440.3 547/602.5 680/730
Diesel Kg/h 32.5 44.5 53.8 64.9 97.4 139.9 194.8 259.8 376.5 497.6 623.7

Electric

Consumption

 KW/h 1.1 2.3 2.3 2.3 4.0 4.7 7.5 8.2 11 15 22
Transport Weight Kg 1550 1650 1950 2100 2900 3500 4950 5190 10600 16000 19104
Water Volume L 700 850 1100 1500 1848 2700 3600 5000 9000 13300 13300
Dimension Length mm 2260 2280 2395 2695 3205 3685 3915 4415 5300 6420 6822
Width mm 1120 1120 1475 1475 1475 1665 1750 1900 2380 2528 2550
Height mm 1550 1590 1750 1750 1750 2015 2160 2300 2742 3015 3064

Water Outlet Pipe

 mm 80 80 100 100 125 150 150 200 200 250 250
Water Inlet Pipe mm 80 80 100 100 125 150 150 200 200 250 250
Atmosphere Open Pipe mm 80 80 100 100 125 150 150 200 200 250 250
Drain Pipe mm 40 40 40 40 40 40 40 40 40 40 40
Chimney mm 250 250 250 250 250 300 350 400 600 700 800
Basement Dimensions Length mm 1950 1980 2050 2120 2620 3100 3100 3560 4100 5200 5380
Width mm 800 810 1000 1000 1000 1100 1200 1300 1750 2000 2100

Our Service

1. We will reply your inquiry in 24 hours.

2. Experienced staffs will answer all your questions in fluent and professional English.

3. Customized design is available Two-year warranty and full-life service for all of our boiler

A full range of original spare parts are available for all LEWAY boilers
