Specifications
Brand Name :
WG Sensor™
Model Number :
AT320
Certification :
CE
Place of Origin :
China
MOQ :
10
Price :
USD 650-700 pc
Supply Ability :
100000PCS per year
Delivery Time :
5-14 work days
Packaging Details :
250mm×100mm×400mm
Sensor type :
Fuel-cell alcohol sensor
Test Range :
0.000~0.400%BAC
Resolution :
0.001%BAC
Unit :
%BAC, mg/l, g/l
Accuracy :
±0.005%BAC (0-0.800%BAC) ± 8% (0.800-0.200%BAC) ±20% (0.200-0.400%BAC)
Display :
7”(1024*600)Touch Screen
Working Voltage :
Adapter Input:AC110V~AC240V,50/60Hz; Output:DC12V/1.5A
Coin Diameter :
15mm~29mm
Coin Thickness :
1.8mm~3.0mm
Quantity of Full Coin Tray :
200
Dimension :
250mm×100mm×400mm
Weight :
About 4.8kg
OEM/ODM :
Supported
E-Mail :
sales@wgsensor.com
WhatsApp :
+8613333637163
Description

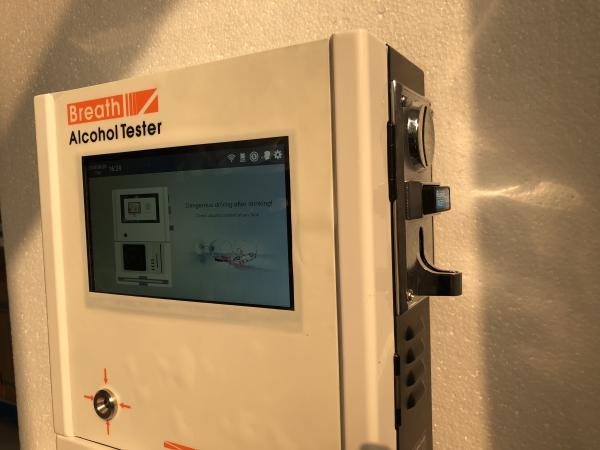

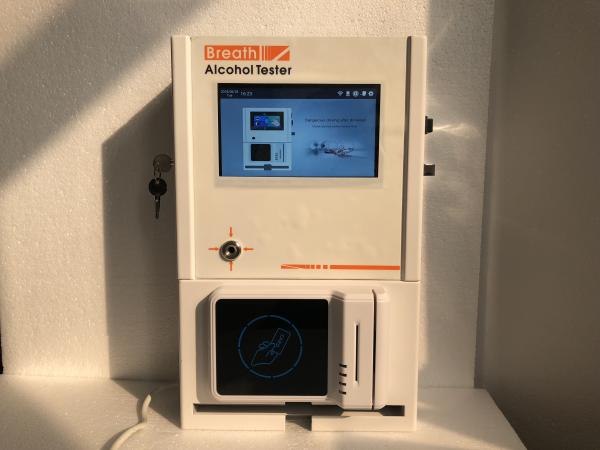

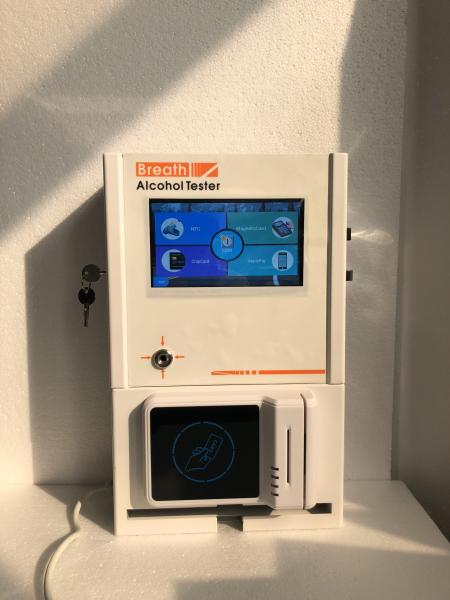

Multi-pay operated standalone vender Fuel Cell Breathalyzer for club , bar , café , restaurant

Poruduct Descriptions:

AT319S is a standalone multi-payment alcohol tester with start of the art design, which adopts advanced changeable fuel cell sensor module that presents professional grade accuracy, superb repeatability and high sensitivity. It supports five options of payment which are coin, Magnetic Card, Chip Card, NFC, and Apple Pay which can be operated on a 7 inch touch screen by connecting Wi-Fi or 4G to realize the payment and upload data to server on which owner can monitor transaction records, configure parameters, and insert photos of screen saver that could be regarded as merchant advertisements. For every new procedure updated, when it’s connecting WiFi or 4G, the machine will update it automatically..

Technical parameters:

Sensor type Advanced Fuel Cell
Sensor Life 2 Years
Test Range 0.000~0.400%BAC
Resolution 0.001%BAC
Payment Options Coin, Debit Card, Credit Card, NFC, Apple Pay
Internet 4G, WiFi
Warm-up Time ≤30s
Working Condition

Temperature:0℃~50℃

Humidity:≤95%RH No Condensing

Display 7”(1024*600)Touch Screen
Working Voltage

Adapter Input:AC110V~AC240V,50/60Hz;

Output:DC12V/1.5A

Unit %BAC, mg/l, g/l
Accuracy

±0.005%BAC (0-0.800%BAC)

± 8% (0.800-0.200%BAC)

±20% (0.200-0.400%BAC)

Coin Diameter 15mm~29mm
Coin Thickness 1.8mm~3.0mm
Quantity of Full Coin Tray 200
Capacity of Nozzle 200
Dimension 250mm×100mm×400mm
Weight About 4.8kg
