Specifications
Brand Name :
WG Sensor™
Model Number :
AT319V
Certification :
CE
Place of Origin :
China
MOQ :
10
Price :
USD 260-290 pc
Supply Ability :
100000PCS per year
Delivery Time :
5-14 work days
Packaging Details :
250mm×105mm×400mm
Sensor type :
Fuel-cell alcohol sensor
Test Range :
0.000~4.000g/L(0.000~2.000mg/L、 0~440mg/100mL、0.000~0.400%BAC、 0.000~0.400g/100ml、0.000~4.000‰BAC)
Resolution :
0.002g/L
Warning level :
0.180g/L
Danger level :
0.500g/L
Display :
Four digits LCD display;Test process and result are showed by the red, green, and yellow indicator light
Working Voltage :
Input:AC100V~AC240V,50/60HZ; Output:DC12V/1.5A
Indication manner :
g/L , mg/L , mg/100mL , %BAC(g/100mL) ,‰BAC optional
OEM/ODM :
Supported
E-Mail :
sales@wgsensor.com
WhatsApp :
+8613333637163
Description

Smart Coin operated Fuel Cell Breathalyzer vender for Pub /Club , Bar

Poruduct Descriptions:

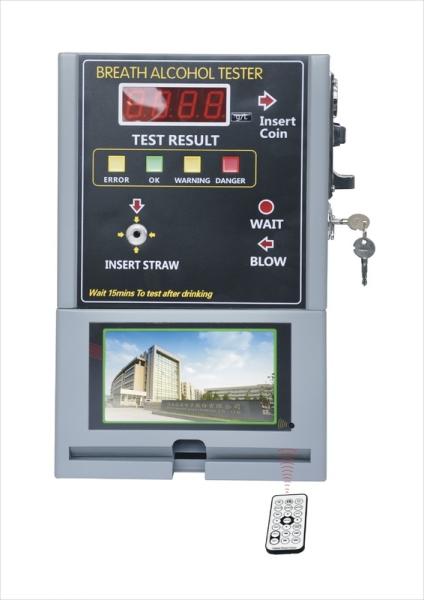

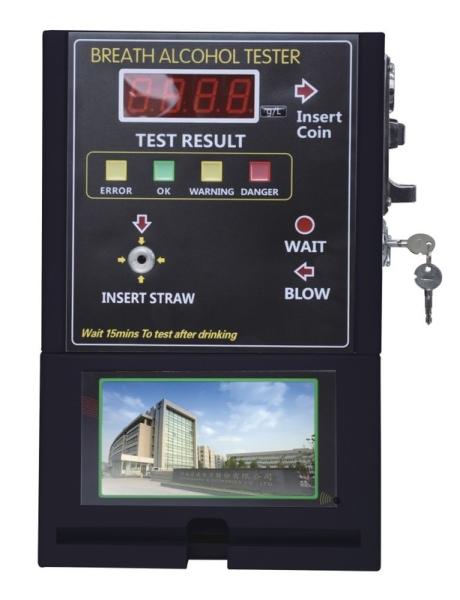

AT319V, coin-operated Breath Alcohol Tester, is designed to measure alcohol concentration in the human body. With advanced fuel cell alcohol sensor, this device has excellent sensitivity and reproducibility. Reasonable and easy testing process, complete function make it versatile in many occasions. When the alcohol content exceeds the preset alarming level, it will send out an alarm warning and show the result directly and clearly on the digital LCD display.

Technical parameters:

Model AT319V
Sensor type Fuel cell sensor
Test Range

0.000~4.000g/L(0.000~2.000mg/L,

0~440mg/100mL,0.000~0.400%BAC,

0.000~0.400g/100ml,0.000~4.000‰BAC)

Resolution 0.002g/L
Preheating time ≤1min
Warning level 0.180g/L
Danger level 0.500g/L
Environment Temperature:0℃~50℃;Relative humidity:≤95% No Dews
Storage temperature -20℃~60℃
Display Four digits LCD display;Test process and result are showed by the red, green, and yellow indicator light
Warning method Audio and light
Working Voltage

Input:AC100V~AC240V,50/60HZ;

Output:DC12V/1.5A

Indication manne g/L ,mg/L,mg/100mL,%BAC(g/100mL),‰BAC optional
Accuracy ±0.005% at 0.05%BAC
Coin for single time 0 —— 15 (For 0, the tester can be tested without coin)
Coin diameter 15mm~29mm
Coin Thickness 1.8mm~3.0mm
Coin capacity 200pcs
Straw box capacity 200pc(outside diameter is about 7mm)
Sensor lifespan 2 years
Dimension 250mm×105mm×400mm
Weight About 4kg

Product Details:

AT319V 0.180g/L Fuel Cell Breathalyzers Pub Bar Smart Coin Operated Breathalyzer

AT319V 0.180g/L Fuel Cell Breathalyzers Pub Bar Smart Coin Operated Breathalyzer

AT319V 0.180g/L Fuel Cell Breathalyzers Pub Bar Smart Coin Operated Breathalyzer

About Weiguo


Henan Weiguo Intelligent Technology Co., Ltd, is an innovative technology company in China and is the pillar enterprise of the healthy home business division of Hanwei Electronics (stock number: 300007). Focusing on the complete chain of design, R&D, production and sales of "AirRadio"air quality products, we strive to supply air health service for the human beings in the world.

AT319V 0.180g/L Fuel Cell Breathalyzers Pub Bar Smart Coin Operated Breathalyzer

Hanwei Electronics Group Corporation(Stock no.:300007) founded in 1998, is a trustworthy innovative technology company, and the largest gas sensors and instruments manufacturer in China and listed on China's Growth Enterprise Board in the first batch, devoting ourselves to promise a safe, environmental friendly, healthy and smart working and living environment. Based on IOT industry, Hanwei Electronics will combine sensors, intelligent terminals, communication technology, cloud computing and geographic information IOT technology together closely to create Hanwei cloud so as to establish a complete IOT industry chain. Hanwei Electronics focuses on the customer value oriented, provide perfect solutions for smart city, production safety, environmental protection, health of the people's livelihood.
