3C Wall Hung Gas Boiler Constant Temperature 20kw Lpg Use First Class Pumps
3C Wall Hung Gas Boiler Constant Temperature 20kw Lpg Use First Class Pumps
3C Wall Hung Gas Boiler Constant Temperature 20kw Lpg Use First Class Pumps
3C Wall Hung Gas Boiler Constant Temperature 20kw Lpg Use First Class Pumps
3C Wall Hung Gas Boiler Constant Temperature 20kw Lpg Use First Class Pumps
3C Wall Hung Gas Boiler Constant Temperature 20kw Lpg Use First Class Pumps
Specifications
Brand Name :
RENO
Model Number :
L1PB20-A(C3)
Certification :
ISO14001,OHSAS18001,ISO9001,3C
Place of Origin :
CHINA,QINGDAO
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000pcs per month
Delivery Time :
30days after receiving the deposit
Packaging Details :
ach product in plastic bag which comes with the product instructions and foam packaging, then carton packaging outside with another thicker plastic bag.
Shell Material :
Stainless Steel
Power (KW) :
20kw
Gas style :
NG/LPG
Color shows :
brown
Product Name :
Wall hung Gas Boiler
Gas pressure(pa) :
2000/2800pa
Displays :
LED Displayer Optional
Way to install :
Wall Mounted
Heat efficiency(%) :
≥90%
protection measures :
21 kinds of protection measures
Dual funtions :
heating and bathing
Description

3C Gas Wall Hung Boiler Constant Temperature 20kw Lpg Use First-Class Pumps

GAS WALL HANGING BOILER INSTRUCTIONS

1. Safe and Reliable

With 21 kinds of safe protection•Low failure rate

2. Comfort

Ultra-quiet operation•more comfortable

3. Convenience

Touch control•more precise

4. Environmental protection

Eenrgy saving and environmental protection•Follow the trend

5. After sale

7*24 after-sales service,worry free

TECHNICAL DATA OF GAS WALL HANGING BOILER

MODEL No. L1PB20-A(C3)

SPECIFICATIONS

 A20-TG1/BH1

RATED INPUT POWER(KW)

 20kw

RATED OUTPUT POWER(KW)

 18kw

HEAT EFFICIENCY(%)

 ≥90%

RATED VOLTAGE FREQUENCY(V/Hz)

 220/230/50

GAS TYPE

 NG/LPG

GAS PRESSURE(Pa)

 2000/2800Pa

TEMP.RANGE OF HEATING WATER(℃)

DHW:30-60 HEATING HOT WATER:30-80

△T=30℃ HOT WATER SUPPLY(KG/MIN)

 9.5

APPLICATIVE WATER PRESSURE(MPA)

 0.02-0.8
DIMENSION(HIGH*WIDE*THICK) 710*420*230
WEIGHT(KG) 25.2kg
DIAMETER OF SMOKE PIPEφ(COAXIAL) φ60/100

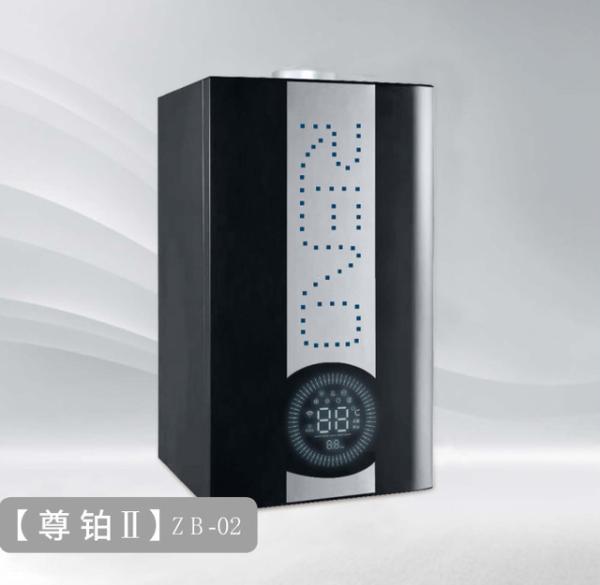

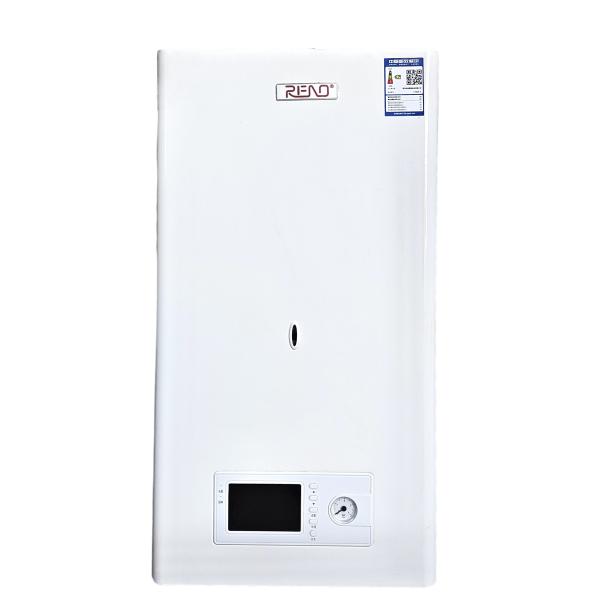

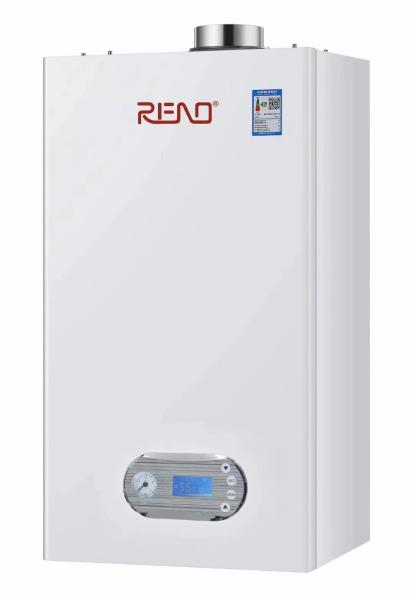

PRODUCT DISPLAY

3C Wall Hung Gas Boiler Constant Temperature 20kw Lpg Use First Class Pumps

The function of water flow switch: detect the amount of tap water through, under certain conditions, make the boiler switch to domestic hot water mode.​3C Wall Hung Gas Boiler Constant Temperature 20kw Lpg Use First Class Pumps

The role of water pressure switch: In order to ensure the normal operation of the heating system, the system is filled with water, and maintain a certain pressure. The water shortage protection can be achieved by detecting the system pressure through the water pressure switch.3C Wall Hung Gas Boiler Constant Temperature 20kw Lpg Use First Class Pumps

The function of circulating water pump is to provide circulating power and realize the water circulation of the system. It is the same as the heart of human to promote blood circulation. It is an important device used to ensure the normal circulation of water in the heating system.3C Wall Hung Gas Boiler Constant Temperature 20kw Lpg Use First Class Pumps3C Wall Hung Gas Boiler Constant Temperature 20kw Lpg Use First Class Pumps

ABOUT US

Qingdao Hiounce hvac equipment co., Ltd., located in "brand, the beautiful coastal city - qingdao, China, was founded in the 1950s of the qingdao municipal restructuring state-owned enterprises - qingdao boiler factory. it is a company dedicated to research and development, production of high-grade wall hanging furnace, the electric heating furnace, biomass heating boiler, kitchen burning gas, discharge of oil absorption and the module of boiler fuel gas high-tech enterprises.

Qingdao Hiounce hvac equipment co., Ltd.have more than 100 employees.Company headquarters has total handling, personnel department, finance department, marketing department, the ministry of commerce, office (provincial), purchasing, and import and export department, technology department, engineering department, after-sales service department, and other functions of the eleven departments, through the perfect sales and service network, security, stability, energy saving, environmental protection products supply users.3C Wall Hung Gas Boiler Constant Temperature 20kw Lpg Use First Class Pumps
