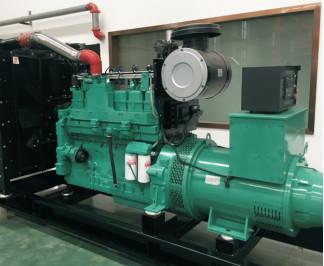

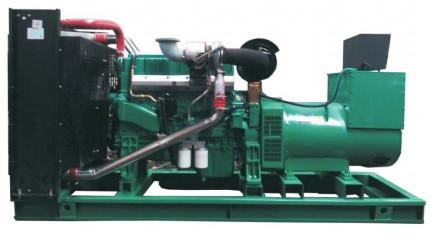

Water Cooling 400V Natural Gas Generator Set 150kW Natural Gas Genset
Water Cooling 400V Natural Gas Generator Set 150kW Natural Gas Genset
Water Cooling 400V Natural Gas Generator Set 150kW Natural Gas Genset
Water Cooling 400V Natural Gas Generator Set 150kW Natural Gas Genset
Water Cooling 400V Natural Gas Generator Set 150kW Natural Gas Genset
Water Cooling 400V Natural Gas Generator Set 150kW Natural Gas Genset
Water Cooling 400V Natural Gas Generator Set 150kW Natural Gas Genset
Water Cooling 400V Natural Gas Generator Set 150kW Natural Gas Genset
Specifications
MOQ :
a set of generator
Price :
Negotiable
Delivery Time :
30 work days
Packaging Details :
3125*1200*1850mm, 1750kg for open genset; 4000*1450*1800mm, 3050kg for silent canopy
Product name :
Gas Genset
Color :
As your requirement
Type :
Natural Gas Generator set
Fuel :
Natutal Gas/Biogas/LPG
Fuel type :
Natural Gas
Control panel :
Smartgen
Engine type :
in line
Cooling method :
Water Cooling
Speed :
1500/1800rpm
Frequency :
50HZ/60HZ
Rated power :
10kw-1000kw
Rated voltage :
230/400V
Rated current :
as per HZ
Description

Water Cooling 400V Natural Gas Generator Set 150kW Natural Gas Genset

150kW Genset of Natural Gas Generator Sets

Water Cooling 400V Natural Gas Generator Set 150kW Natural Gas Genset

Special statement

  1. The technical data are based on a gas mixture of 60% CH4 and 40% CO2 with a calorific value of 5.78 kWh/Nm³.
  2. The technical data is based on standard conditions according to ISO8528/1, ISO3046/1 and BS5514/1
  3. The technical data is measured in standard conditions: Absolute atmospheric pressure: 100kPa; Ambient temperature: 25°C; Relative air humidity: 30%
  4. Rating adaptation at ambient conditions acc. to DIN ISO 3046/1.
  5. The tolerance for the specific fuel consumption is + 5 % at rated output
  6. Dimension and weight above are just for reference and may be subject to change. As this document is used only for presale reference, take the specification supplied by JIGREN before ordering as final
Model Efficiency Fuel Type Engine Model Alternator Genset Controller
Elec. Thermal Total Manufacturer Model Manufacturer Model
JIG150N-S 37.0% 51.1% 88.1% Natural Gas U28536N Mecc Alte ECO38 3S4 A SmartGen HGM 9510
JIG150N-T 37.3% 50.3% 87.6% Natural Gas U26306N Mecc Alte ECO38 3S4 A SmartGen HGM 9510
JIG150B-T 36.0% 50.8% 86.8% Biogas U26556B Mecc Alte ECO38 3S4 A SmartGen HGM 9510
JIG150S-S 35.1% 50.1% 85.2% Syngas U35656S Mecc Alte ECO38 3S4 A SmartGen HGM 9510
JIG150P-T 34.2% 50.8% 85.0% LPG U26556P Mecc Alte ECO38 3S4 A SmartGen HGM 9510
JIG150N6-S 37.0% 51.1% 88.1% Natural Gas U28536N Mecc Alte ECO38 3S4 A SmartGen HGM 9510
JIG150N6-T 37.3% 50.3% 87.6% Natural Gas U26306N Mecc Alte ECO38 3S4 A SmartGen HGM 9510
JIG150B6-T 36.0% 50.8% 86.8% Biogas U26556B Mecc Alte ECO38 3S4 A SmartGen HGM 9510
JIG150S6-S 35.1% 50.1% 85.2% Syngas U35656S Mecc Alte ECO38 3S4 A SmartGen HGM 9510
JIG150P6-T 34.2% 50.8% 85.0% LPG U26556P Mecc Alte ECO38 3S4 A SmartGen HGM 9510

Water Cooling 400V Natural Gas Generator Set 150kW Natural Gas Genset

Genset Model JIG150N-S JIG150N-T JIG150B-T JIG150S-S JIG150P-T JIG150N6-S JIG150N6-T JIG150B6-T JIG150S6-S JIG150P6-T
Prime Rating kW 150 150 150 150 150 150 150 150 150 150
KVA 187.5 187.5 187.5 187.5 187.5 187.5 187.5 187.5 187.5 187.5
Standby Power kW 165 165 165 165 165 165 165 165 165 165
KVA 206.25 206.25 206.25 206.25 206.25 206.25 206.25 206.25 206.25 206.25
Rated Voltage V 230/400 230/400 230/400 230/400 230/400 230/400 230/400 230/400 230/400 230/400
Rated Current A 270.6 270.6 270.6 270.6 270.6 270.6 270.6 270.6 270.6 270.6
Power Factor - 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
Rated Frequency Hz 50 50 50 50 50 60 60 60 60 60
Rated Speed rpm 1500 1500 1500 1500 1500 1800 1800 1800 1800 1800

Water Cooling 400V Natural Gas Generator Set 150kW Natural Gas Genset

Spec Dimensions (Open)
(L × W × H)		 mm 3125×1200×1850 Water Cooling 400V Natural Gas Generator Set 150kW Natural Gas Genset
Net Weight (Open) kg 1750
Dimensions
(Silent Canopy)
(L × W × H)		 mm 4000×1450×1800 Water Cooling 400V Natural Gas Generator Set 150kW Natural Gas Genset
Net Weight
(Silent Canopy)		 kg 3050
