Biogas 3 KPa Syngas Engine Power Pack 11.6L Electronic Control Fuel System
Biogas 3 KPa Syngas Engine Power Pack 11.6L Electronic Control Fuel System
Biogas 3 KPa Syngas Engine Power Pack 11.6L Electronic Control Fuel System
Biogas 3 KPa Syngas Engine Power Pack 11.6L Electronic Control Fuel System
Biogas 3 KPa Syngas Engine Power Pack 11.6L Electronic Control Fuel System
Biogas 3 KPa Syngas Engine Power Pack 11.6L Electronic Control Fuel System
Biogas 3 KPa Syngas Engine Power Pack 11.6L Electronic Control Fuel System
Biogas 3 KPa Syngas Engine Power Pack 11.6L Electronic Control Fuel System
Specifications
Brand Name :
STEYRT12
Model Number :
T26556
Place of Origin :
China
MOQ :
a set of genset
Price :
Negotiable
Delivery Time :
30 work days
Product name :
Syngas Engine
Weight :
950kg
Warranty :
1 year or 1500 running hours
Dimension(l*w*h) :
1479×828×1133 mm
Cold style :
Water-cooled
After-sales service provided :
Engineers available to service machinery overseas
Usage :
Other,INDUSTRIAL
Fuel :
Natural Gas
Color :
Any color is optional
Type :
4-Cyl in-line natural intake Turbo charged cooled
Bore*stroke :
126*155mm
Description

Biogas 3 KPa Syngas Engine Power Pack 11.6L Electronic Control Fuel System

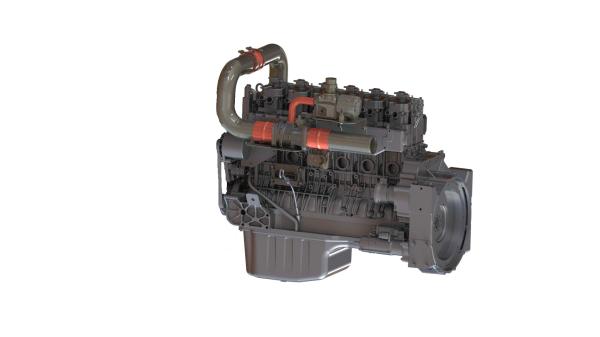

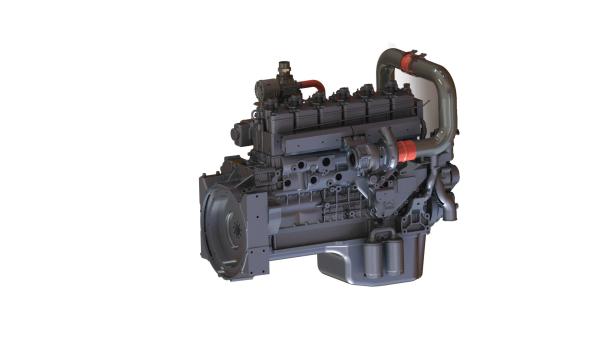

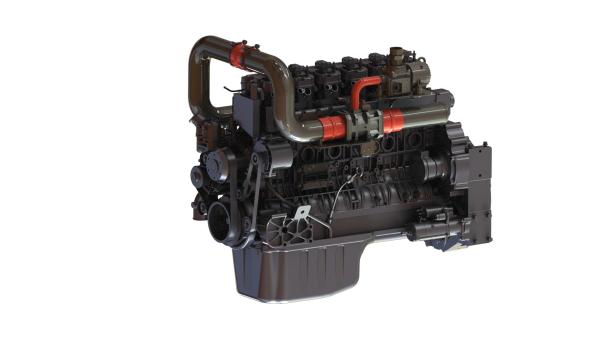

11.6L Powerpack for Natural Gas, Biogas and Syngas Engine

Descriptions

1. High power density

2. Base engine technology comes from Steyr, which is mature and has high thermal efficiency

3. Seperated type cylinder head design, easy for maintenance

4. Specific improvements on gas fuel, making the engine reliable , durable and economical

5. Advanced electronic control fuel system of continuous flow,super durable design, especially resistant on

dry and dirty gas

6. Self adaptive and self-learning abilities on gas composition

7. Closed-loop control on fuel

8. Electronic speed governing

9. Support CAN J1939 communication

10. SAE flywheel housing and flywheel

11. With after-treatment, it can meet emission standard Europe V/Tier4/CPCB2

Biogas 3 KPa Syngas Engine Power Pack 11.6L Electronic Control Fuel System

No. Items Technical Parameters
1 Engine Model T26556
2 Bore×Stroke 126×155 mm
3 Gas Cylinder NO. 6
4 Displacement 11.596 L
5 Compression Ratio 11.5:1
6 Gas intake Pressure 3～15/450～700 kPa
7 Cooling Method Water Cooling
8 Aspiration Method Turbocharged Intercooler
9 Standard Gas Intake Temp. 25°C
10 Low Idle 800 r/min
11 Direction of Rotation Counter-clockwise viewed on flywheel
13 Efficiency 38%
14 Dimensions 1479×828×1133 mm
15 Net Weight 950 Kg

Biogas 3 KPa Syngas Engine Power Pack 11.6L Electronic Control Fuel System

1500rpm
Fuel kWm HP kWe for COP
Natural Gas 275 373 150
Biogas 200 271 150
Syngas 75 102 60
1800rpm
Fuel kWm HP kWe for COP
Natural Gas 275 373 150
Biogas 210 285 150
Syngas 80 108 64
Vehicle
Fuel kW/rpm HP/rpm N.m/rpm
CNG/LNG 309/2000 420/2000 1650/1200～1500
Power values are in accordance with standard ISO 3046-1.kWm values are based on a calorific fuel value for 10kWh/Nm³ for natural gas and 6kWh/Nm³ for biogas and 30kWh/Nm³ for LPG and 4kWh/Nm³ for syngas . kWe values are based on standard assumptions for mechanical and electrical losses. these values are provided for information purposes only and are non-binding.Ratings and performance are solely for reference only and subject to site conditions and JIGREN application and ratings guidelines. The product images shown are for illustration purposes only and may not be an exact representation of the final product. All information is subject to change without notice.
