Elster American Meter Series Gas Pressure Regulator 1800B2 1 Inch End Connection
Elster American Meter Series Gas Pressure Regulator 1800B2 1 Inch End Connection
Specifications
Brand Name :
Elster American Meter
Model Number :
1803B2
Place of Origin :
Made In USA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200sets Every Month
Delivery Time :
3-8 work-days
Packaging Details :
6sets packed in one carton ,each carton size is 56*39*28cm,14.5kg each one carton.
Name :
American Meter Company 1800B2 Gas Pressure Regulator
End Connetion :
3/4",1" NPT
Inlet Pressure :
60psi@1/4" Orifice
Spring Range :
3.5” - 10.5” w.c.
Orifice Size :
3/8"
Application :
Home Use,small commercial and industrial
Valve Body Material :
Cast Iron
Orifice Material :
Aluminum
Description

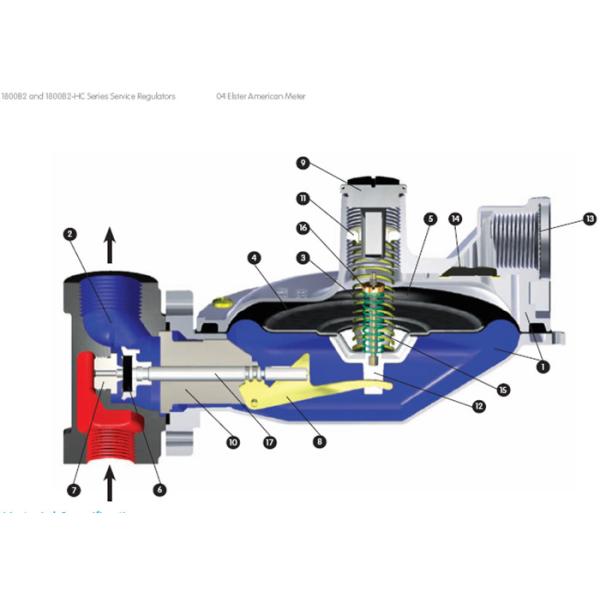

Elster American Meter Series 1800B2 Gas Pressure Regulators

The Elster American Meter Series 1800B2 pressure regulators are designed for natural gas applications and feature a compact, lightweight design for fast, easy installation. Interchangeable orifices and springs provide a wide range of outlet pressures and flow rates. Outlet pressures between 3.5" W.C. and 2 PSIG are available. Operating temperature range is -20°F to 150°F (-30°C to 65°C). Maximum flow rate is 2500 SCFH (70.8 m³/h).

The 1800B2 Series pressure regulators are designed to control natural gas,air, nitrogen, carbon dioxide, propane vapor, and other non-corrosive gases in residential, light commercial, and small industrial applications.

Features
• Variety of interchangeable orifices and spring ranges
• 90 Degree (Right Angle), 180 Degree(Straight-Flow), or Offset Valve Body
• Wide range of valve body connection sizes

Orifice and Maximum Inlet Pressure

Pressure Size
125 psi 1/8”
125 psi 3/16”
60 psi 1/4”
40 psi 5/16”
30 psi 3/8”
20 psi 1/2”

Regulator Spring Chart

Outlet Pressure Ranges Spring Color
3.5” - 10.5” w.c. Silver
6.0” - 8.0” w.c. Blue
6.0” - 14.0” w.c. Green
12.0”-28.0” w.c. / 3-7kpa Red
1.0 - 2.0 psi Black
