Sensus 243-8 Model Commercial Lpg Pressure Regulator Natural Gas Two Stage Pressure Regulator
Sensus 243-8 Model Commercial Lpg Pressure Regulator Natural Gas Two Stage Pressure Regulator
Sensus 243-8 Model Commercial Lpg Pressure Regulator Natural Gas Two Stage Pressure Regulator
Sensus 243-8 Model Commercial Lpg Pressure Regulator Natural Gas Two Stage Pressure Regulator
Sensus 243-8 Model Commercial Lpg Pressure Regulator Natural Gas Two Stage Pressure Regulator
Sensus 243-8 Model Commercial Lpg Pressure Regulator Natural Gas Two Stage Pressure Regulator
Specifications
Brand Name :
Sensus
Model Number :
243-8
Place of Origin :
Made In USA
MOQ :
2sets
Price :
USD 550-600 each set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100sets Every Month
Delivery Time :
3-5 work-days
Packaging Details :
1set packed in one carton ,each carton size is 56*39*28cm,15kg each one carton.
Name :
Sensus 243-8 Natural Gas Regulator
End Connetion :
1-1/2" NPT,2"NPT
Inlet Pressure :
125psi @ 3/8",1/4" Orifice
Spring Range :
6.0"W.C - 14.0"W.C
Orifice Size :
3/8",1/4"
243-8-1 :
Standard Regulator
Description

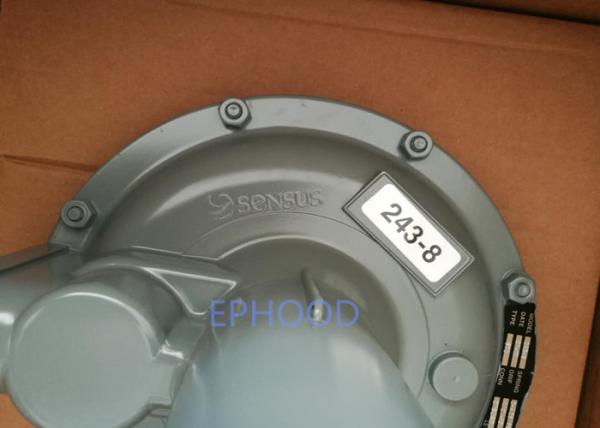

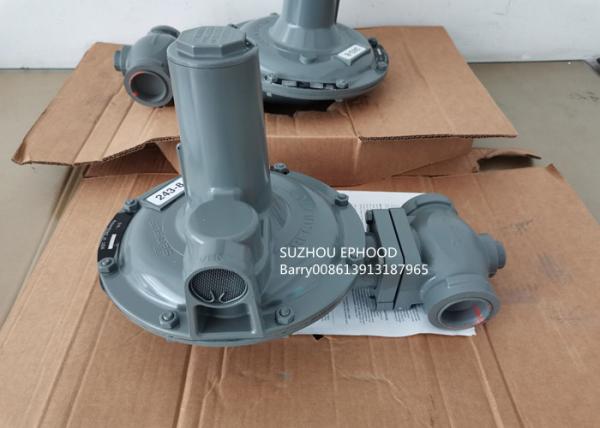

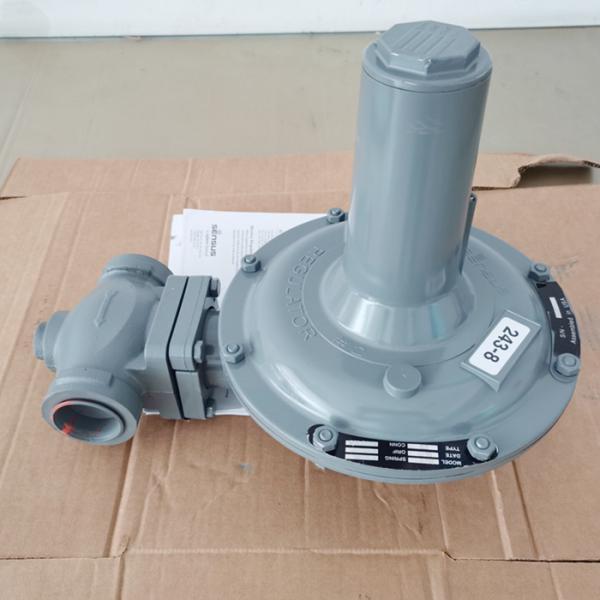

Sensus Brand Model 243-8 Natural Gas Regulator

Natural Gas Regulators with Large Capacity for Big Performance

243 commercial industrial service regulators are large capacity and designed for a wide range of commercial, industrial and gas distribution applications. They are ideal for pressure factor measurement, pressure compensated metering, fixed-factor billing and more. Their smart design offers great field versatility. With a union connection between the fully interchangeable bodies and the diaphragm case, these natural gas regulators are easy to install, adjust, inspect and service in all piping arrangements.

243 commercial regulators can be found in factories, foundries, district regulator stations, commercial laundries and laundromats. These versatile natural gas regulators are ideal for commercial use such as apartments, restaurants, schools and hospitals. Their design works well for all types of gas-fueled equipment, too. This includes: boilers, burners, furnaces, ovens, heaters, kilns and engines.

Benefits to you

  • Installs and adjusts easily
  • Allows for pressure factor measurement, pressure compensated metering and fixed factor billing

243-8-1 Standard Regulator.

Orifice and Maximum Inlet Pressure

Pressure Size
25 psi 1”
40 psi 1”
40 psi 3/4”
60 psi 3/4”
100 psi 1/2”
125 psi 3/8”
125 psi 1/4”

Regulator Spring Chart

Outlet Pressure Ranges Spring Color
3.5” - 6.5” w.c/ 0.9-1.7kpa Red-Black
5.0” - 8.5” w.c/ 1.2-2.1kpa Blue-Black
6.0” - 14.0” w.c./1.5-3.5kpa Green-Black
12" to 28" w.c. Green
1 to 2 psi Orange
2 to 4¼ psi Cadmium

Sensus 243-8 Model Commercial Lpg Pressure Regulator Natural Gas Two Stage Pressure Regulator

Sensus 243-8 Model Commercial Lpg Pressure Regulator Natural Gas Two Stage Pressure Regulator

Sensus 243-8 Model Commercial Lpg Pressure Regulator Natural Gas Two Stage Pressure Regulator

Sensus 243-8 Model Commercial Lpg Pressure Regulator Natural Gas Two Stage Pressure Regulator
