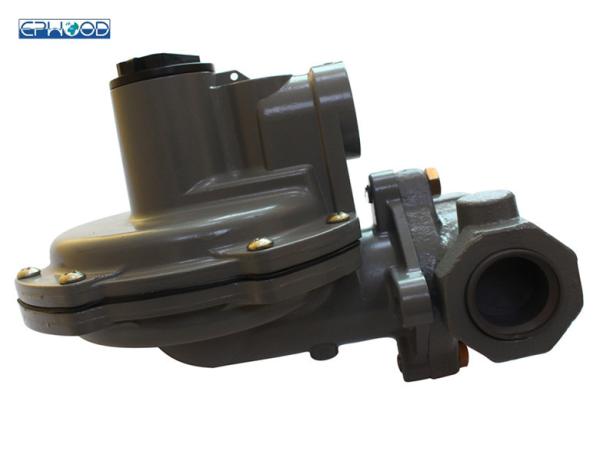

1 Inch Fisher HSR Model Pressure Regulator NPT Globe Body Pressure Reducing Regulator
1 Inch Fisher HSR Model Pressure Regulator NPT Globe Body Pressure Reducing Regulator
1 Inch Fisher HSR Model Pressure Regulator NPT Globe Body Pressure Reducing Regulator
1 Inch Fisher HSR Model Pressure Regulator NPT Globe Body Pressure Reducing Regulator
Specifications
Brand Name :
Fisher
Model Number :
HSR
Place of Origin :
Assembled In China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000sets Every Month
Delivery Time :
3-8 work-days
Packaging Details :
1set packed in one carton ,each carton size is 22*15.5*15.5cm,2.2kg each one.
Name :
HSR Pressure Gas Regulator
End Connetion :
1" NPT
Max Inlet Pressure :
8.6Bar
Spring Range :
1.25 to 2.2 psig (0.09 to 0.15 bar)
Orifice Size :
1/2"
Body Material :
Cast iron
Description

Fisher HSR Model Pressure Reducing Regulator Use For Gas Fired Burner

Type HSR direct-operated, spring-loaded pressure reducing regulators provide control in residential, commercial, and industrial applications for natural, manufactured, or liquefied petroleum gases.Internal relief across the diaphragm helps minimize overpressure. Any outlet pressure over the start-to-discharge point of the nonadjustable relief valve spring moves the diaphragm off the relief valve seat, allowing excess pressure to vent.Regulators meet ANSI B109.4/CGA 6.18.

Features
Angle Bodies
Globe Bodies
High Capacity
Compact Design
High Capacity Internal Relief
Meets or Exceeds ANSI B109.4 / CGA 6.18 Requirements
Fixed Factor / PFM Accuracy

Body Size and End Connection Styles
1 x 1-inch, NPT Globe Body

Allowable Inlet Pressure
Emergency: 150 psig / 10,3 bar
Maximum Operating Pressure: 125 psig / 8,6 bar

Allowable Outlet Pressure
Emergency (Casing): 25 psig / 1,7 bar
Maximum Operating Pressure to Avoid Internal Parts Damage: 3 psi / 0,21 bar differential above outlet pressure setting

Outlet Pressure
1.25 to 2.2psi/0.09 to 0.15bar

Outlet Pressure Ranges Of fisher HSR pressure regulator

4 to 6-inches w.c. (10 to 15 mbar)

6 to 8-inches w.c. (15 to 20 mbar)

8 to 10-inches w.c. (20 to 25 mbar

10 to 12.5-inches w.c. (25 to 31mbar)

12.5 to 20-inches w.c. (31to 50 mbar)

20 to 35-inches w.c. (50 to 87 mbar)

1.25 to 2.2 psig (0.09 to 0.15 bar)

Pressure Registration
Internal

Temperature Capabilities
-20 to 160°F / -29 to 71°C

1 Inch Fisher HSR Model Pressure Regulator NPT Globe Body Pressure Reducing Regulator

Table 1. Maximum Operating Inlet Pressure

ORIFICE SIZE WIDE-OPEN Cg MAXIMUM OPERATING INLET PRESSURE TO OBTAIN
GOOD REGULATING PERFORMANCE
Inch mm FOR RELIEF SIZING psig bar
1/8 3.2 12.5 125 8.6
3/16 4.8 28.2 100 6.9
1/4 6.4 50 60 4.1
3/8 9.5 105 30 2.1
1/2 13 185 20 1.4

Table 2. Outlet Pressure Ranges

OUTLET PRESSURE RANGE SPRING SPRING WIRE DIAMETER SPRING FREE LENGTH
COLOR Inch mm Inch mm
4 to 6" w.c. / 10 to 15 mbar Orange 0.062 1.57 3.40 86.4
6 to 8" w.c. / 15 to 20 mbar Yellow 0.067 1.70 3.61 91.4
8 to 10" w.c. / 20 to 25 mbar Black 0.067 1.70 3.71 94.0
10 to 12.5" w.c. / 25 to 31 mbar Silver 0.072 1.83 4.10 104
12.5 to 20" w.c. / 31 to 50 mbar Gray 0.080 2.03 3.60 91.4
20 to 35" w.c. / 50 to 87 mbar Pink 0.093 2.36 3.52 88.9
1.25 to 2.2 psig / 0.09 to 0.15 bar Light Blue 0.105 2.67 3.66 94.0

Table 3. Relief Performance


ORIFICE SIZE MAXIMUM ALLOWABLE INLET PRESSURE IF OUTLET PRESSURE
IS HELD AT OR BELOW 2 psig / 140 mbar
Inch mm psig bar
1/8 3.2 125 8.6
3/16 4.8 65 4.5
1/4 6.4 30 2.1
3/8 9.5 10 0.69
1/2 13 7 0.48
1. The relief performance testing is in accordance with ANSI B109.4 and CGA 6.18, with the regulator set at 7-inches w.c. / 17 mbar, stem linkage disconnected, and vented directly to atmosphere using the 3/4 or 1-inch / 19 or 25 mm vent.
