ANSI Rising Stem Metal Seat Gate Valve 50 mm Ductile Iron
ANSI Rising Stem Metal Seat Gate Valve 50 mm Ductile Iron
Specifications
Brand Name :
OEM
Model Number :
ANSI/JIS
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1pc
Price :
USD 0-100
Payment Terms :
T/T
Supply Ability :
400 thousands pcs per year
Delivery Time :
30 days
Packaging Details :
plywood case
Material :
Ductile iron/Cast iron
PN :
125LB-150LB/5K-10K
DN :
2''-12''
Operation :
With handwheel/gearbox/electric actuator
Working temperature :
-20℃-120℃
Suitable medium :
Water/Steam/Oil
Standard :
ANSI/JIS
Type :
Rising stem/Non-rising stem
Description

ANSI/JIS Ductile Iron Rising Stem Metal Seat Gate Valve


Main parts materials:

· Body: GGG40/GGG50

· Bonnet: GGG40/GGG50

· Stem: 2Cr13/SS304/SS316/Brass

· Disc: GGG40/GGG50 with Brass/Bronze/Stainless steel

. Seat: Brass/Bronze/Stainless steel

· Stem nut: Brass

Description:

ANSI/JIS Ductile iron rising stem gate valve, with GGG40 or GGG50 body, and Brass/Bronze/Stainless steel sealing surface, manufactured for use in water, waste water, sewage, steam,oil and gas, being coated with epoxy power, the coated is make sure bigger than 250μm. The gate valves all guarantee 100% testing before packing and delivery.


Specifications:

Nominal Pressure

Design Standard

Face to Face

Flange Standard

125LB 150LB 5K 10K

MSS SP-70 AWWA C509 JIS B2043

ANSI B16.10 JIS B2002

ANSI B16.1 ANSI B16.5 JIS B2212

Body

Bonnet

Stem

Seat

Nut

Temp.

Medium

A126 A536 FCD400 FCD500

A126 A536 FCD400 FCD500

2Cr13

SS304

SS316

Brass

Brass Bronze Stainless Steel

Brass

-20℃-120℃

Water Steam

Oil Gas

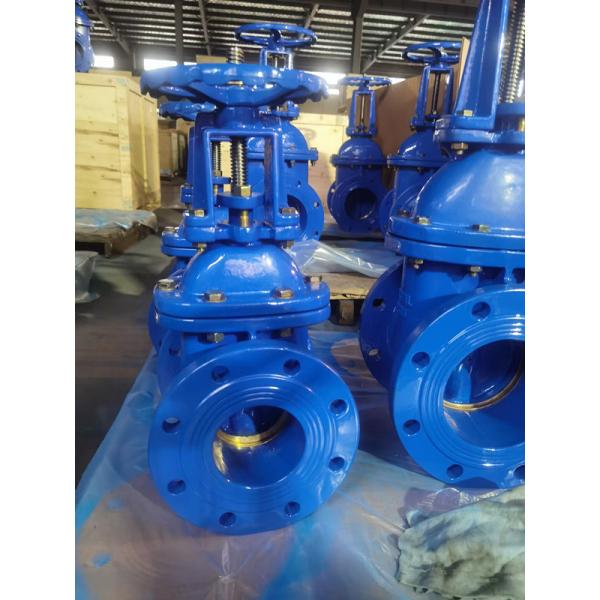

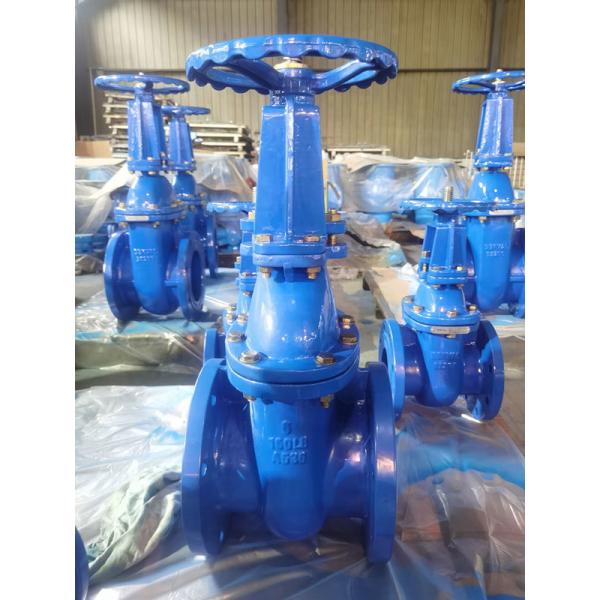

Valves wait for deliver

ANSI Rising Stem Metal Seat Gate Valve 50 mm Ductile Iron

ANSI Rising Stem Metal Seat Gate Valve 50 mm Ductile Iron
