Specifications
Warranty :
12 month
Customized support :
OEM, ODM, OBM
Place of Origin :
Beijing, China
Brand Name :
IVAN
Model Number :
AF501
Product Name :
Pressure Transducer
Power supply :
24VDC (12~36VDC)
Measurement range :
0.1...0..100MPA
Proof pressure :
≤1.5X rated pressure or 110MPa which ever is less
Pressure type :
Gauge Pressure Absolute Pressure Sealed Pressure
Accuracy :
±0.1% ±0.25% (typical)
Long term stability :
±0.3%F.S/year
Packaging Details :
carton/wooden box
Supply Ability :
1000 Unit/Units per Week
MOQ :
10 units
Price :
$70.00 - $75.00/units
Description
Product Description

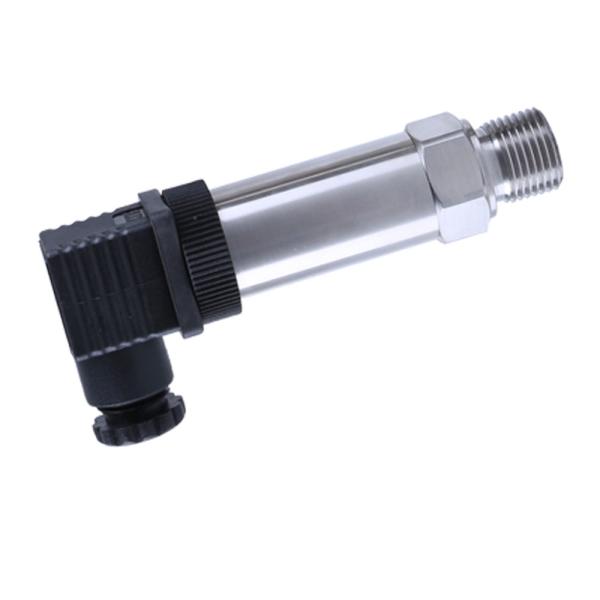

China pressure transducer 4 20ma rs485 absolute pressure transmitter. PCM300 series pressure transmitter is a stainless steel cylinder shell, using direct wire or the international general DIN43650 Hersman junction box. High degree of enclosure protection because of its exquisite shape, mainly suitable for indoor and mechanical supporting equipment, automatic detection and control are widely used in all kinds of gas, liquid and vapor pressure, liquid level, wide measuring range, high accuracy, good stability, reliable performance, convenient installation and operation, reverse polarity protection, anti lightning performance, anti RF strong ability of interference. The product is widely used in the process control and measurement of petroleum, chemical, metallurgical, aviation, aerospace, medical equipment, vehicles, refrigerators, compressors and other industries.
Measurement Range
-0.1．．．0~0.01．．．~100MPa
Proof pressure
≤1.5X rated pressure or 110MPa which ever is less
Pressure type
Gauge, absolute ,sealed gauge
Accuracy
±0.25%（typical） ±0.5%（Max.）
Long term stability
±0.1%F.S/year（typical） ±0.2%F.S/year（Max.）
Temperature Error- Zero
±0.03%F.S/℃（≤100KPa） ±0.02%F.S/℃（＞100KPa）
Temperature Error -Span
±0.03%F.S/℃（≤100KPa） ±0.02%F.S/℃（＞100KPa）
Operating Temperature Range
-20℃~80℃
Storage Temperature Range
-40℃~120℃
Power supply
15～30VDC
Output signal
4～20mA 0～10/20mA 0/1～5/10VDC
Pressure port
M20×1.5,G1/2 or customize
Housing material
1Cr18Ni9Ti stainless steel
Diaphragm material
316L
O-ring
Fluororubber
Cable
polyethylene
Insulation resistance
100MΩ,100VDC
Protection
IP65
4-20mA Modbus Sensor Water Pump Pressure Level Transmitter for Precise and Measurement
4-20mA Modbus Sensor Water Pump Pressure Level Transmitter for Precise and Measurement
4-20mA Modbus Sensor Water Pump Pressure Level Transmitter for Precise and Measurement
4-20mA Modbus Sensor Water Pump Pressure Level Transmitter for Precise and Measurement
4-20mA Modbus Sensor Water Pump Pressure Level Transmitter for Precise and Measurement
Recommend Products
Packing & Delivery
4-20mA Modbus Sensor Water Pump Pressure Level Transmitter for Precise and Measurement
4-20mA Modbus Sensor Water Pump Pressure Level Transmitter for Precise and Measurement
Company Profile

Founded in 2011, Beijing Ifpen Instrument Enterprise, which is adjacent to the beautiful political and cultural center, is located in Beijing Daxing Industrial Development Zone. Our company has a professional, innovative technical team and a standardized production team. Over the years, we have been achieved zero breakthrough in turbulence jump by committing to the production and R&D of industrial instruments and meters and focusing on the R&D and exploration in the field of "wind speed and air volume". After the continuous evolution of the hot ball, hot wire and hot film principles, as well as the exclusive secondary calibration method, we are well-known in the industry as high precision and high stability, breaking the conventional method of using the differential pressure principle to detect air volume in the traditional industry and breaking through the error value of micro wind speed measurement. IVAN has persisted in serving new and old customers with "Innovation, Quality, Integrity" since its foundation. "The heart of innovation, serving the world", IVAN focuses on R&D, provides high-quality products and services, and is committed to the quality road of production enterprises.
4-20mA Modbus Sensor Water Pump Pressure Level Transmitter for Precise and Measurement
Exhibition
4-20mA Modbus Sensor Water Pump Pressure Level Transmitter for Precise and Measurement
Certifications
4-20mA Modbus Sensor Water Pump Pressure Level Transmitter for Precise and Measurement
4-20mA Modbus Sensor Water Pump Pressure Level Transmitter for Precise and Measurement
FAQ
Q1. Why choose us?
A: Founded in 2011, we are a leading manufacturer in the instrumentation industry, providing OEM & ODM services.
Q2. Could I get sample?
A: Yes, sample order is acceptable, but the sample cost and freight need to be charged.
Q3. What is the term of payment?
A: 100% payment in advance by T/T.
Q4. What is the delivery time?
A: Generally, it will be 7-15 working days after receiving payment.
Q5. How about validity of quotation?
A: It is usually 30 days because the freight and exchange rates may fluctuate.
Q6. What is your normal delivery way?
A: Goods will be sent by DHL/FEDEX/UPS/EMS/TNT or other proposed forwarders.
Q7. How about the package?
A: Standard export wooden case or normal export carton.
Q8. Do you test all your goods before delivery?
A: Yes, we will test 100% before delivery.
