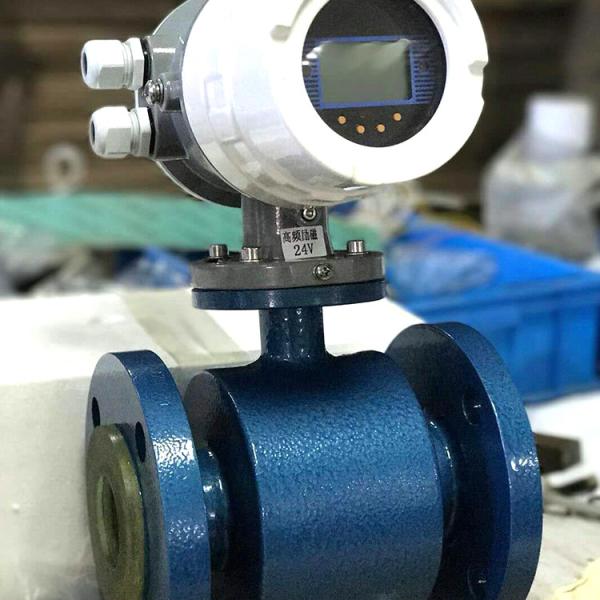

OEM Supported Liquid Control Electromagnetic Water Flow Meter Magnetic Flowmeter
OEM Supported Liquid Control Electromagnetic Water Flow Meter Magnetic Flowmeter
OEM Supported Liquid Control Electromagnetic Water Flow Meter Magnetic Flowmeter
OEM Supported Liquid Control Electromagnetic Water Flow Meter Magnetic Flowmeter
OEM Supported Liquid Control Electromagnetic Water Flow Meter Magnetic Flowmeter
OEM Supported Liquid Control Electromagnetic Water Flow Meter Magnetic Flowmeter
OEM Supported Liquid Control Electromagnetic Water Flow Meter Magnetic Flowmeter
OEM Supported Liquid Control Electromagnetic Water Flow Meter Magnetic Flowmeter
OEM Supported Liquid Control Electromagnetic Water Flow Meter Magnetic Flowmeter
OEM Supported Liquid Control Electromagnetic Water Flow Meter Magnetic Flowmeter
OEM Supported Liquid Control Electromagnetic Water Flow Meter Magnetic Flowmeter
OEM Supported Liquid Control Electromagnetic Water Flow Meter Magnetic Flowmeter
Specifications
Warranty :
12 month
Customized support :
OEM, ODM
Place of Origin :
Beijing, China
Brand Name :
IVAN
Model Number :
AFTES
Type :
Variable Area Water Flowmeters
Packaging Details :
carton
Supply Ability :
1000 Unit/Units per Week
MOQ :
10 units
Price :
$400.00 - $500.00/units
Description
Main power AC220V 50HZ / DC24V
Power consumption < 15W (And set with sensor supporting power consumption )
Display and push buttons English and Chinese display can display the instantaneous flow, total flow and percentage of flow as well as alarm display, four thin-film touch nubs, which is used to data set.
Accumulator Forward total quantity, reverse total quantity
Output signa Analog output Bi-direction with two ways, Isolation 0-10mA/4-20mA
Load resistor: 0-10mA; 0-1.5KΩ; 4-20mA; 0-750Ω
Frequency output Forward & reverse flow output with frequency range set between 1-5000Hz.The external voltage must be lower than 35V and the max output and the max output current is 50mA when the transistor is turned on
Alarm output Two outputs from the collectors of photoelectric isolate transistors are for alarm signals. The external voltage must be lower than 35V and the max output current is 250mA when the transistor is turned on. Alarm status: Activates when the measured pipes are empty, the excitation circuits are broken or the volume of flow rate exceeds the value designed limits.
Pulse output For pulse output in forward and reverse flow measurement, upper frequency of pulse output can be up to 5000 CP/S relevant value of pulse is from 0.0001 to 1.0 M3/P. The width of pulse can be set to 20ms or squired wave from automatically. The collector of transistor with photoelectric is open circuited. The external voltage must be lower than 35 V and maximum output current is 250mA when the transistor is turned on.
Accuracy ±0.5% of the value displayed, ±0.3% or ±0.2% optional.
Damping time constant Continuous variable from 0-100 s (90%)can be selected by group
Communication RS232 ,RS485 or HART Communication are optional,with lighting resistance
Power failure An anti-failure clock is designed in the flow meter which can save the power failure records for 16 times (10 years)
Nominal diameter DN10~DN3000mm
Nominal Pressure 0.6~4.0MPa
Main power AC220V 50Hz /DC24V/3.6V Lithium battery
Accuracy ±0.5%, ±0.2% (optional)
Output signal Analog output, Frequency output, Alarm output, Pulse output
Liner material Neoprene, Urethane Rubber, Polysilicone Rubber, PTFE, F46, PFA
Electrode Type General type, scraper type and replaceable type
Electrode material SUS316, Hastelloy B, Hastelloy C, Titanium, Tantalum, Platinum-iridium alloy, Stainless steelcovered with tungsten carbide
Medium temperature -20℃ ~ +70℃
Ambient Temperature -25℃ ~ +60℃
Ambient Humidity 5~100%RH(relative humidity)
Medium lectrical?conductivity ≥20us/cm
Measuring Range 1500:1,flow rate <15m/s
Structure type Integral type, remote type, submersible type, ex-proof type <15m/s
Protection Class IP65, IP67, IP68(optional)
Ex-proof Mark Exmd II CT4
Product Standard

JB/T 9248-1999 Electromagnetic FlowmeterOEM Supported Liquid Control Electromagnetic Water Flow Meter Magnetic FlowmeterOEM Supported Liquid Control Electromagnetic Water Flow Meter Magnetic Flowmeter

FAQ

1.Q:How to intallation flowmeter ?

A:We can provide manual of flowmeter ,kindly contacts us freely.

2.Q:How can I choose this flow diameter ?

A:Yes.that's according to your pipe diameter and flow range.

3.Q:Could i get samples?

A:Yes,We have materials in stock to help you to get the samples as sooon as we can.

4.Q::Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.

5.Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.

6.Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.

7.Q:If I have paid,when will you help me to produce?
A:When we have received the money in our account,we will give you the receipt and arrange to produce
immediately.
