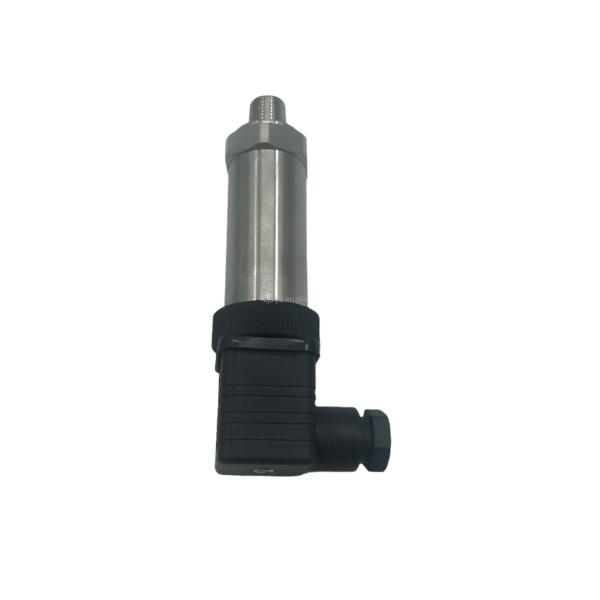

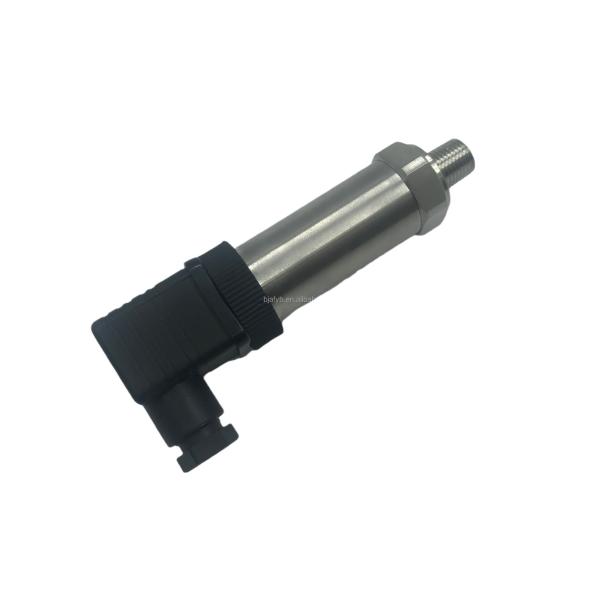

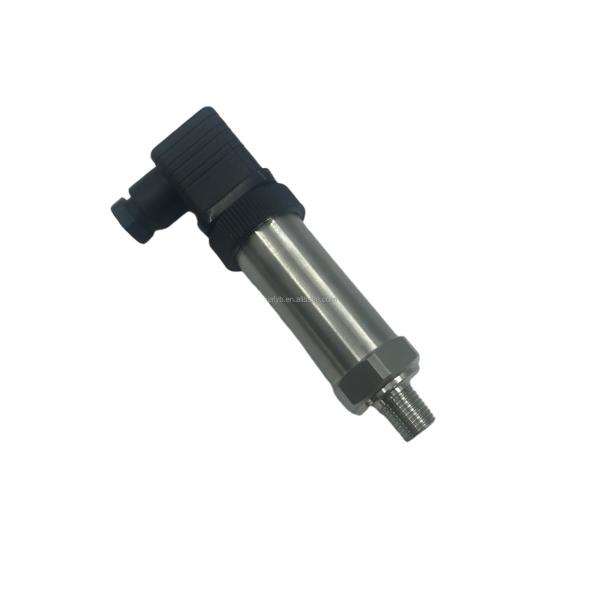

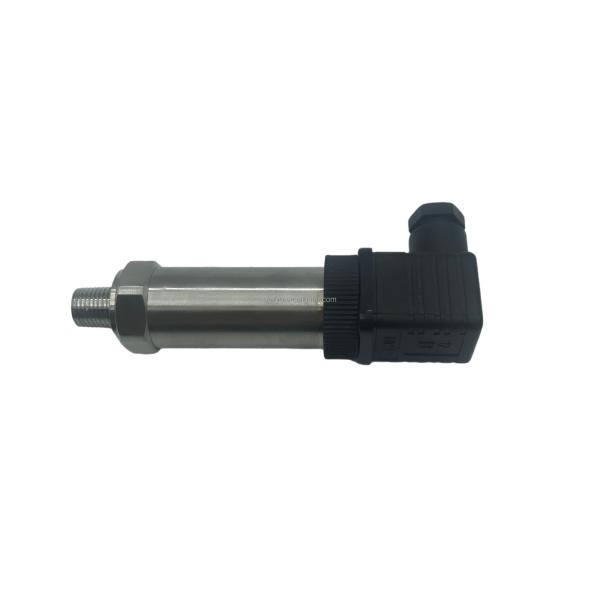

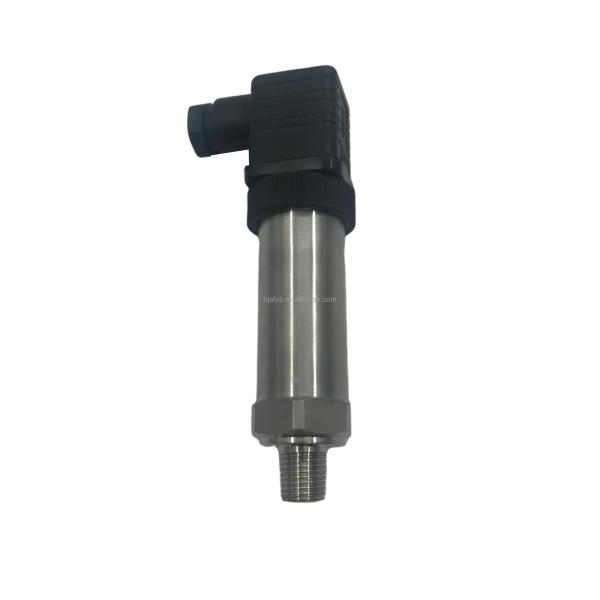

Customized 4-20mA Output Water Pressure Transmitter for Absolute Pressure Measurement
Customized 4-20mA Output Water Pressure Transmitter for Absolute Pressure Measurement
Customized 4-20mA Output Water Pressure Transmitter for Absolute Pressure Measurement
Customized 4-20mA Output Water Pressure Transmitter for Absolute Pressure Measurement
Customized 4-20mA Output Water Pressure Transmitter for Absolute Pressure Measurement
Customized 4-20mA Output Water Pressure Transmitter for Absolute Pressure Measurement
Customized 4-20mA Output Water Pressure Transmitter for Absolute Pressure Measurement
Customized 4-20mA Output Water Pressure Transmitter for Absolute Pressure Measurement
Customized 4-20mA Output Water Pressure Transmitter for Absolute Pressure Measurement
Customized 4-20mA Output Water Pressure Transmitter for Absolute Pressure Measurement
Customized 4-20mA Output Water Pressure Transmitter for Absolute Pressure Measurement
Customized 4-20mA Output Water Pressure Transmitter for Absolute Pressure Measurement
Specifications
Warranty :
1 year
Customized support :
OEM, ODM, OBM
Place of Origin :
Beijing, China
Brand Name :
IVANPER, IVAN
Model Number :
-, AF501
Product Name :
Pressure Transmitter
Output :
4-20mA
Certification :
Reach
Packaging Details :
carton
Supply Ability :
500 Unit/Units per Week
MOQ :
10 units
Price :
$25.00 - $28.00/units
Description
Product Description
Specification
Measurement Range
-0.1...0~0.01...~100MPa
Proof Pressure
≤1.5X rated pressure or 110MPa which ever is less
Pressure Type
Gauge, absolute, sealed gauge
Accuracy
±0.25% (typical) ±0.5% (Max.)
Long Term Stability
±0.1% F.S/year (typical) ±0.2% F.S/year (Max.)
Temperature Error-zero
±0.03% F.S/℃ (≤100KPa) ±0.02% F.S/℃ (>100KPA)
Operating Temperature
-20℃~80℃
Storage Temperature
-40℃~120℃
Power Supply
15~30V DC
Output Signal
4~20mA, 0~10/20mA, 0/5~5/10V DC
Pressure Port
M20x1.5, G1/2 or customized
Main Part Material
Stainless Steel
Diaphragm Material
316L
O-ring
Fluororubber
Cable
Polyethylene
Insulation Resistance
100MΩ， 100V DC
IP Grade
IP65
Customized 4-20mA Output Water Pressure Transmitter for Absolute Pressure Measurement
Customized 4-20mA Output Water Pressure Transmitter for Absolute Pressure Measurement
Customized 4-20mA Output Water Pressure Transmitter for Absolute Pressure Measurement
Recommend Products
Packing & Delivery
Customized 4-20mA Output Water Pressure Transmitter for Absolute Pressure Measurement
Customized 4-20mA Output Water Pressure Transmitter for Absolute Pressure Measurement
Company Profile

Founded in 2011, Beijing Ifpen Instrument Enterprise, which is adjacent to the beautiful political and cultural center, is located in Beijing Daxing Industrial Development Zone. Our company has a professional, innovative technical team and a standardized production team. Over the years, we have been achieved zero breakthrough in turbulence jump by committing to the production and R&D of industrial instruments and meters and focusing on the R&D and exploration in the field of "wind speed and air volume". After the continuous evolution of the hot ball, hot wire and hot film principles, as well as the exclusive secondary calibration method, we are well-known in the industry as high precision and high stability, breaking the conventional method of using the differential pressure principle to detect air volume in the traditional industry and breaking through the error value of micro wind speed measurement. IVAN has persisted in serving new and old customers with "Innovation, Quality, Integrity" since its foundation. "The heart of innovation, serving the world", IVAN focuses on R&D, provides high-quality products and services, and is committed to the quality road of production enterprises.
Customized 4-20mA Output Water Pressure Transmitter for Absolute Pressure Measurement
Exhibition
Customized 4-20mA Output Water Pressure Transmitter for Absolute Pressure Measurement
Certifications
Customized 4-20mA Output Water Pressure Transmitter for Absolute Pressure Measurement
Customized 4-20mA Output Water Pressure Transmitter for Absolute Pressure Measurement
FAQ
Q1. Why choose IVAN?
A: Founded in 2011, IVAN is a leading manufacturer in the instrumentation industry, providing OEM & ODM services.
Q2. Could I get sample?
A: Yes, sample order is acceptable, but the sample cost and freight need to be charged.
Q3. What is the term of payment?
A: 100% payment in advance by T/T.
Q4. What is the delivery time of IVAN?
A: Generally, it will be 7-15 working days after receiving payment.
Q5. How about IVAN validity of quotation?
A: It is usually 30 days because the freight and exchange rates may fluctuate.
Q6. What is your normal delivery way?
A: Goods will be sent by DHL/FEDEX/UPS/EMS/TNT or other proposed forwarders.
Q7. How about the package?
A: Standard export wooden case or normal export carton.
Q8. Do you test all your goods before delivery?
A: Yes, we will test 100% before delivery.
If you have any questions, please feel free to contact us!
