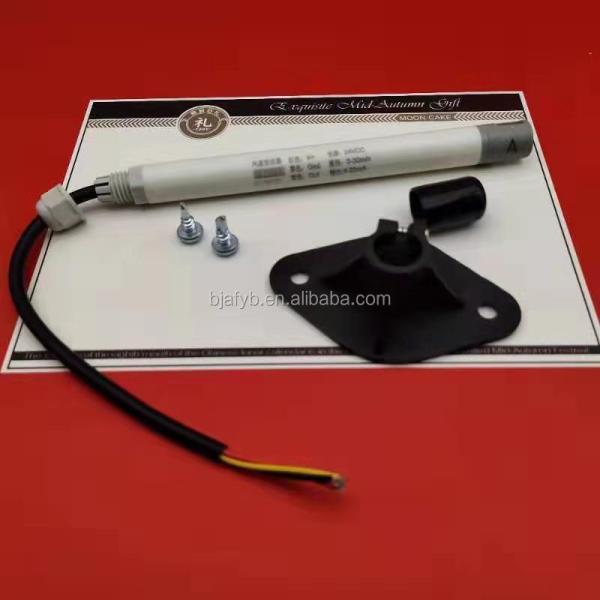

24VDC Small Wind Speed Sensor with High Precision and Low Energy Consumption 150mm Probe Length
24VDC Small Wind Speed Sensor with High Precision and Low Energy Consumption 150mm Probe Length
24VDC Small Wind Speed Sensor with High Precision and Low Energy Consumption 150mm Probe Length
24VDC Small Wind Speed Sensor with High Precision and Low Energy Consumption 150mm Probe Length
24VDC Small Wind Speed Sensor with High Precision and Low Energy Consumption 150mm Probe Length
24VDC Small Wind Speed Sensor with High Precision and Low Energy Consumption 150mm Probe Length
24VDC Small Wind Speed Sensor with High Precision and Low Energy Consumption 150mm Probe Length
24VDC Small Wind Speed Sensor with High Precision and Low Energy Consumption 150mm Probe Length
24VDC Small Wind Speed Sensor with High Precision and Low Energy Consumption 150mm Probe Length
24VDC Small Wind Speed Sensor with High Precision and Low Energy Consumption 150mm Probe Length
24VDC Small Wind Speed Sensor with High Precision and Low Energy Consumption 150mm Probe Length
24VDC Small Wind Speed Sensor with High Precision and Low Energy Consumption 150mm Probe Length
Specifications
Warranty :
12 month
Type :
Industrial
Customized support :
OEM, ODM
Place of Origin :
Beijing, China
Brand Name :
IVANPER
Model Number :
AF410C2
Product Name :
Wind Speed Sensor
Power supply :
24VDC
Measuring Range :
0-30m/s
Output :
0~10V/4~20mA
Accuracy :
2%
Probe length :
150mm
Packaging Details :
carton
Port :
tianjin
Supply Ability :
500 Unit/Units per Week
MOQ :
10 units
Price :
$85.00/units 10-99 units
Description
Products Description
AF410C2 mini air velocity transmitters were developed to obtain accurate measuring results over a wide range of velocity and temperature. A high-quality hot film sensor element based on cutting- edge thin film technology ensures maximum sensitivity, even at lowest mass flows. AF410C2 can be used to the narrow space and measure very low velocity .For HVAC, Ventilation, Air-condition, Purification, Lab, Purification Workshop..
24VDC Small Wind Speed Sensor with High Precision and Low Energy Consumption 150mm Probe Length
24VDC Small Wind Speed Sensor with High Precision and Low Energy Consumption 150mm Probe Length
24VDC Small Wind Speed Sensor with High Precision and Low Energy Consumption 150mm Probe Length
Specifications:
Power Supply
12V DC/AC 24V DC/AC 5V DC/AC (Customized)
Measure Range
0~5m/s 0~10m/s 0~15m/s 0~20m/s 0~30m/s
Output
0~5V 0~10V 0~20mA 4~20mA RS485 (Modbus-RTU)
Measure Accuracy
±(0.2m/s +3% of MV)
Consumption
2.5W
IP Grade
IP65
Response Latency
0.2s
Resolution
0.01m/s
Sensing Elements
Thermal Film Sensor
Working Environment
Temperature: -20℃~85℃ Humidity: 5%~95%
Probe Length
Installation of Flange: 150mm (Customized)
Material of Probe
ABS Engineering Plastic
Recommend Products
Packing & Delivery
24VDC Small Wind Speed Sensor with High Precision and Low Energy Consumption 150mm Probe Length
24VDC Small Wind Speed Sensor with High Precision and Low Energy Consumption 150mm Probe Length
Company Profile

Founded in 2011, Beijing Ifpen Instrument Enterprise, which is adjacent to the beautiful political and cultural center, is located in Beijing Daxing Industrial Development Zone. Our company has a professional, innovative technical team and a standardized production team. Over the years, we have been achieved zero breakthrough in turbulence jump by committing to the production and R&D of industrial instruments and meters and focusing on the R&D and exploration in the field of "wind speed and air volume". After the continuous evolution of the hot ball, hot wire and hot film principles, as well as the exclusive secondary calibration method, we are well-known in the industry as high precision and high stability, breaking the conventional method of using the differential pressure principle to detect air volume in the traditional industry and breaking through the error value of micro wind speed measurement. IVAN has persisted in serving new and old customers with "Innovation, Quality, Integrity" since its foundation. "The heart of innovation, serving the world", IVAN focuses on R&D, provides high-quality products and services, and is committed to the quality road of production enterprises.
24VDC Small Wind Speed Sensor with High Precision and Low Energy Consumption 150mm Probe Length
Exhibition
24VDC Small Wind Speed Sensor with High Precision and Low Energy Consumption 150mm Probe Length
Certifications
24VDC Small Wind Speed Sensor with High Precision and Low Energy Consumption 150mm Probe Length
24VDC Small Wind Speed Sensor with High Precision and Low Energy Consumption 150mm Probe Length
FAQ
Q1. Why choose IVAN?
A: Founded in 2011, IVAN is a leading manufacturer in the instrumentation industry, providing OEM & ODM services.
Q2. Could I get sample?
A: Yes, sample order is acceptable, but the sample cost and freight need to be charged.
Q3. What is the term of payment?
A: 100% payment in advance by T/T.
Q4. What is the delivery time of IVAN?
A: Generally, it will be 7-15 working days after receiving payment.
Q5. How about IVAN validity of quotation?
A: It is usually 30 days because the freight and exchange rates may fluctuate.
Q6. What is your normal delivery way?
A: Goods will be sent by DHL/FEDEX/UPS/EMS/TNT or other proposed forwarders.
Q7. How about the package?
A: Standard export wooden case or normal export carton.
Q8. Do you test all your goods before delivery?
A: Yes, we will test 100% before delivery.
