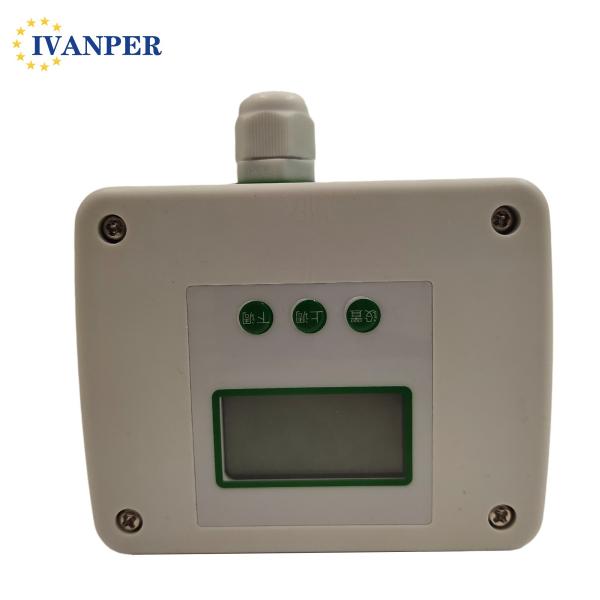

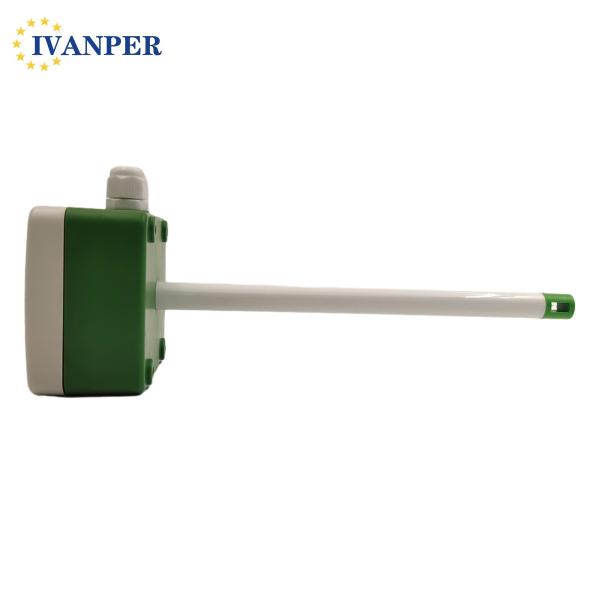

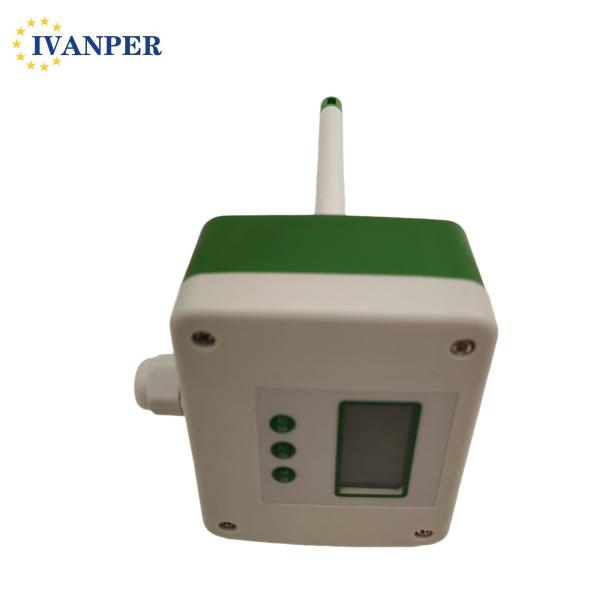

Surface Air Transducer Wind Speed Sensor Transmitter 0-10V 4-20mA for Fume Hoods Cabinet
Surface Air Transducer Wind Speed Sensor Transmitter 0-10V 4-20mA for Fume Hoods Cabinet
Surface Air Transducer Wind Speed Sensor Transmitter 0-10V 4-20mA for Fume Hoods Cabinet
Surface Air Transducer Wind Speed Sensor Transmitter 0-10V 4-20mA for Fume Hoods Cabinet
Surface Air Transducer Wind Speed Sensor Transmitter 0-10V 4-20mA for Fume Hoods Cabinet
Surface Air Transducer Wind Speed Sensor Transmitter 0-10V 4-20mA for Fume Hoods Cabinet
Surface Air Transducer Wind Speed Sensor Transmitter 0-10V 4-20mA for Fume Hoods Cabinet
Surface Air Transducer Wind Speed Sensor Transmitter 0-10V 4-20mA for Fume Hoods Cabinet
Surface Air Transducer Wind Speed Sensor Transmitter 0-10V 4-20mA for Fume Hoods Cabinet
Surface Air Transducer Wind Speed Sensor Transmitter 0-10V 4-20mA for Fume Hoods Cabinet
Surface Air Transducer Wind Speed Sensor Transmitter 0-10V 4-20mA for Fume Hoods Cabinet
Surface Air Transducer Wind Speed Sensor Transmitter 0-10V 4-20mA for Fume Hoods Cabinet
Specifications
Warranty :
1 year
Type :
Industrial
Customized support :
OEM, ODM, OBM
Place of Origin :
Beijing, China
Brand Name :
IVANPER
Model Number :
AF410D2
Product name :
Wind Speed & Volume Sensor
Power supply :
24VAC/DC±20%
Measure range :
0-10M/S, 0-15M/S, 0-20M/S, 0-25M/S, 0-30M/S, 0-40M/S, 0-50M/S,0-60M/S
Output :
4-20ma, 0-1OV, RS485, Can be added with switch
Accuracy :
±(0.2m/s+3 % of m. v.)
Response time :
0.1s (at constant temperature)
Working current :
70mA (DC Max,)
Material :
Polycarbonate, UL94V-0 approved
IP grade :
Shell IP65, Probe IP00
Working humidity :
5-95% RH (no condensation)
Packaging Details :
carton
Port :
tianjin
Supply Ability :
500 Unit/Units per Week
MOQ :
10 units
Price :
$95.00/units 10-49 units
Description
Product Description
Features: Large-screen LCD display, which can display wind speed and air volume at the same time, with high precision
1. It is applied to the detection, adjustment and control of wind speed (air flow rate), monitoring the work of the ventilation
system, and reducing energy consumption
2. Based on the principle of thermodynamics, using innovative, advanced and sensitive thermal film sensors, strong
anti-pollution, easy to install and maintain
3. No moving mechanical parts, providing accurate, reliable and sensitive long-term detection, wide operating temperature range,
real-time compensation of medium temperature
4. Application of digital technology to ensure linearity and accuracy of output signal
5. The power supply and output have overvoltage and reverse connection protection functions, high reliability and
anti-interference ability
6. A variety of output modes are available, and the relay output can be selected for alarm or control
7. Optional split type
Surface Air Transducer Wind Speed Sensor Transmitter 0-10V 4-20mA for Fume Hoods Cabinet
Surface Air Transducer Wind Speed Sensor Transmitter 0-10V 4-20mA for Fume Hoods Cabinet
Surface Air Transducer Wind Speed Sensor Transmitter 0-10V 4-20mA for Fume Hoods Cabinet
Surface Air Transducer Wind Speed Sensor Transmitter 0-10V 4-20mA for Fume Hoods Cabinet
Specification
Power Supply
24VAC/DC
Measurement Range
0-5M/S, 0-10M/S, 0-15M/S, 0-20M/S, 0-25M/S, 0-30M/S, 0-40M/S, 0-50M/S,0-60M/S
Output
4-20ma, 0-1OV, RS485, Can be added with switch
Accuracy
20°C(68°F), bei 20°C, 45%, rF, 1013 hPa, 0.2-1 Om/s, 0.2~30m/s, 0.2~40m/s, ±(0.2m/s+3 % of m. v.)
Response time
0.1s (at constant temperature)
Working current
70mA (DC Max.)
Electromagnetic compatibility
EN61326-1, EN61326-2-3, Industrial Environment
Material
Polycarbonate, UL94V-0 approved
IP grade
Shell IP65
Temperature
Probe: -25~50℃
Electronic: -10~50℃
Storage: -30~50℃
Working humidity
5~95% RH (no condensation)
Recommend Products
Packing & Delivery
Surface Air Transducer Wind Speed Sensor Transmitter 0-10V 4-20mA for Fume Hoods Cabinet
Surface Air Transducer Wind Speed Sensor Transmitter 0-10V 4-20mA for Fume Hoods Cabinet
Company Profile
Founded in 2011, Beijing Ifpen Instrument Enterprise, which is adjacent to the beautiful political and cultural center, is located in Beijing Daxing Industrial Development Zone. Our company has a professional, innovative technical team and a standardized production team. Over the years, we have been achieved zero breakthrough in turbulence jump by committing to the production and R&D of industrial instruments and meters and focusing on the R&D and exploration in the field of "wind speed and air volume". After the continuous evolution of the hot ball, hot wire and hot film principles, as well as the exclusive secondary calibration method, we are well-known in the industry as high precision and high stability, breaking the conventional method of using the differential pressure principle to detect air volume in the traditional industry and breaking through the error value of micro wind speed measurement. IVAN has persisted in serving new and old customers with "Innovation, Quality, Integrity" since its foundation. "The heart of innovation, serving the world", IVAN focuses on R&D, provides high-quality products and services, and is committed to the quality road of production enterprises.
Surface Air Transducer Wind Speed Sensor Transmitter 0-10V 4-20mA for Fume Hoods Cabinet
Surface Air Transducer Wind Speed Sensor Transmitter 0-10V 4-20mA for Fume Hoods Cabinet
Surface Air Transducer Wind Speed Sensor Transmitter 0-10V 4-20mA for Fume Hoods Cabinet
FAQ
Q1. Why choose us?
A: Founded in 2011, we are a leading manufacturer in the instrumentation industry, providing OEM & ODM services.
Q2. Could I get sample?
A: Yes, sample order is acceptable, but the sample cost and freight need to be charged.
Q3. What is the term of payment?
A: 100% payment in advance by T/T.
Q4. What is the delivery time?
A: Generally, it will be 7-15 working days after receiving payment.
Q5. How about the validity of quotation?
A: It is usually 30 days because the freight and exchange rates may fluctuate.
Q6. What is your normal delivery way?
A: Goods will be sent by DHL/FEDEX/UPS/EMS/TNT or other proposed forwarders.
Q7. How about the package?
A: Standard export wooden case or normal export carton.
Q8. Do you test all your goods before delivery?
A: Yes, we will test 100% before delivery.
If you have any questions, please feel free to contact us!
