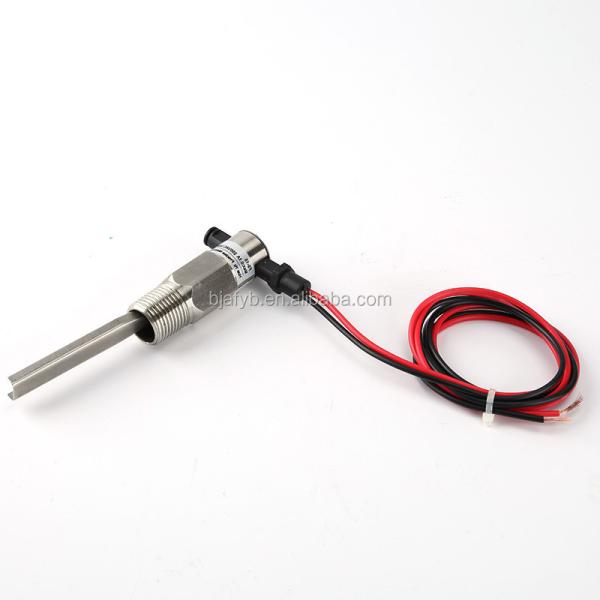

Industrial Liquid Flow Switch with High Flow Rate and Stainless Steel Paddle
Industrial Liquid Flow Switch with High Flow Rate and Stainless Steel Paddle
Industrial Liquid Flow Switch with High Flow Rate and Stainless Steel Paddle
Industrial Liquid Flow Switch with High Flow Rate and Stainless Steel Paddle
Industrial Liquid Flow Switch with High Flow Rate and Stainless Steel Paddle
Industrial Liquid Flow Switch with High Flow Rate and Stainless Steel Paddle
Industrial Liquid Flow Switch with High Flow Rate and Stainless Steel Paddle
Industrial Liquid Flow Switch with High Flow Rate and Stainless Steel Paddle
Industrial Liquid Flow Switch with High Flow Rate and Stainless Steel Paddle
Industrial Liquid Flow Switch with High Flow Rate and Stainless Steel Paddle
Industrial Liquid Flow Switch with High Flow Rate and Stainless Steel Paddle
Industrial Liquid Flow Switch with High Flow Rate and Stainless Steel Paddle
Specifications
Whether the smart :
Yes
Place of Origin :
Beijing, China
Brand Name :
IVAN
Model Number :
FS15
Media Type :
Liquid
Operating Temperature :
-40-90℃
Flow Rate :
-
Material :
Stainless Steel / brass
Certification :
-
Packaging Details :
carton
Port :
Tianjin
Supply Ability :
5000 Piece/Pieces per Month
MOQ :
5 acres
Price :
$19.00/acres 5-499 acres
Description
Product Description
Industrial Liquid Flow Switch with High Flow Rate and Stainless Steel Paddle
Specification
Flowmeter unit: L / min
Pipe size
Connect
cut off
Remarks
DN15
3.3
3
The water inlet length of the baffle is two thirds of the pipe diameter
DN20
4.6
4.2
DN25
7,3
7
DN32
15
14.2
DN40
25.3
24
DN50
36
34.4
Setting of switch point if the user requires precise setting of switch point, please put forward it to the manufacturer at the time of purchase for calibration by the factory.When the reed switch (black plastic part) moves against the water flow direction, the action value increases (i.e. alarger flow is required to open the switch), otherwise, the action value decreases.Lock the screws after adjustment.After the user obtains the flow switch, he can be familiar with the operation process of the switch first, and then set it.When the switch is not installed on site, move the baffle by hand, and repeat it after adjustment to verify whether the switch point setting is accurate.In order to monitor whether the switch acts, a multimeter can be connected to the switch circuit to judge whether the action occurs.
Packing & Delivery
Industrial Liquid Flow Switch with High Flow Rate and Stainless Steel Paddle
Industrial Liquid Flow Switch with High Flow Rate and Stainless Steel Paddle
Company Profie
Industrial Liquid Flow Switch with High Flow Rate and Stainless Steel Paddle
Industrial Liquid Flow Switch with High Flow Rate and Stainless Steel Paddle
Industrial Liquid Flow Switch with High Flow Rate and Stainless Steel Paddle
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
FAQ
